Lippert Components OneControl X1 User Manual

Rev: 08.31.20 Page 6 CCD-0002697
Configuring Inputs, Outputs
The X Series Configurator with supplied OneControl Touch Panel must be used to program the configurable
inputs and the latching and reversing outputs. Once the inputs and outputs are configured, the
configuration can be saved onto a thumb drive and then loaded onto additional controllers.

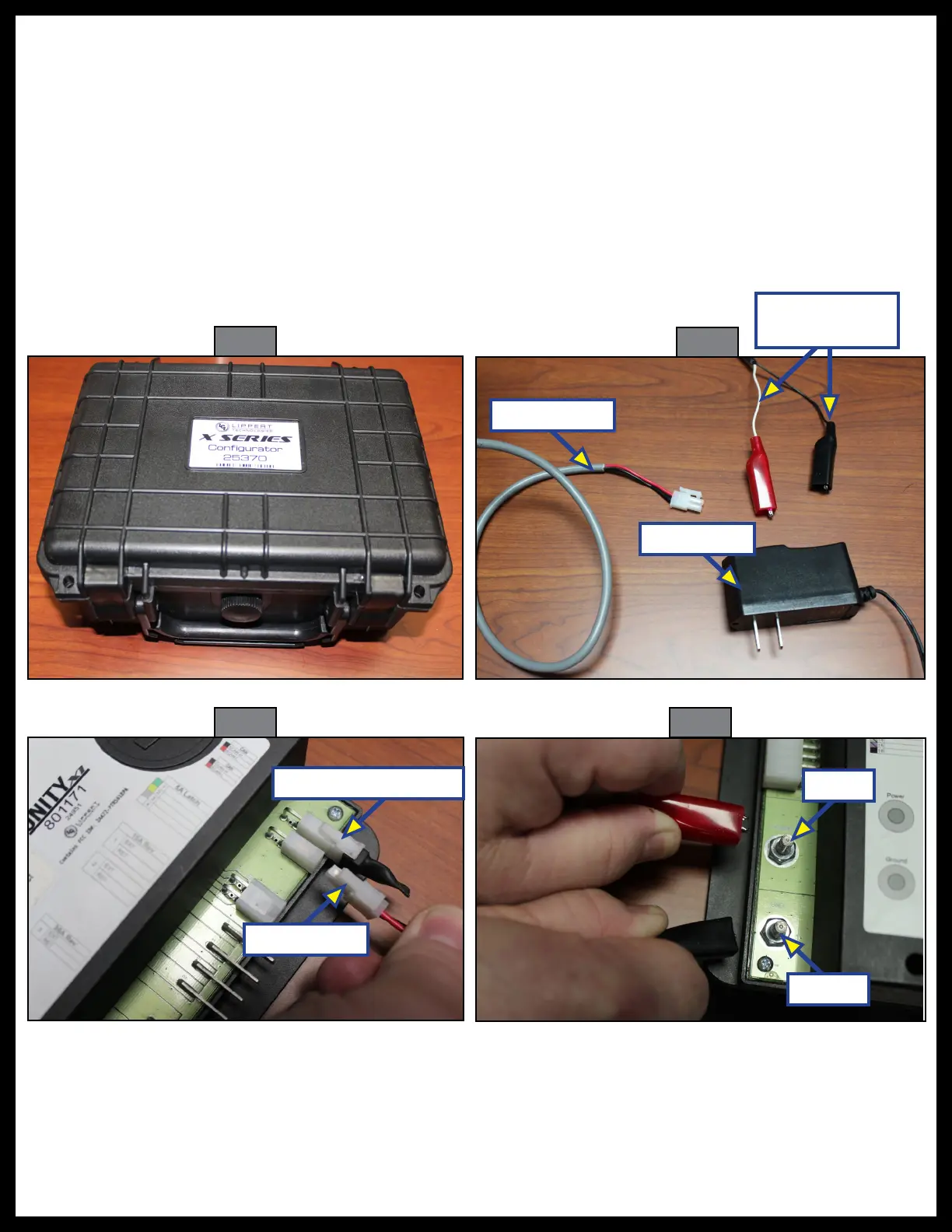

1. Open supplied X Series Configurator box (Fig. 4) and remove the power cord, CAN harness and the
power and ground connections (Fig. 5).
2. Plug in the power cord to a power outlet and insert the CAN harness in one of two terminals at the top
right of the X1 controller (Fig. 6).
3. Place a terminating resistor in the other CAN terminal (Fig. 6).
4. Install the Power (Red) and Ground (Black) alligator clips on the corresponding controller terminals
(Fig. 7).
Fig. 4
Fig. 5
CAN Harness
Power, Ground
Connections
Power Cord
Fig. 6
CAN Harness
Terminating Resistor
Fig. 7
Power
Ground
