2. Select first device by pressing the preferred icon. Then press Select when the pop-up window shows
up on the screen (Fig. 11). Device title will highlight in yellow (Fig. 12).
3. Repeat process for each device included in the circuit.
4. Once you have selected (highlighted) all devices for the circuit, press one of the highlighted device
icons. Press “Create Circuit” in pop-up window (Fig. 13). The next screen will show all devices included
in the circuit and assign a circuit number (Fig. 14).

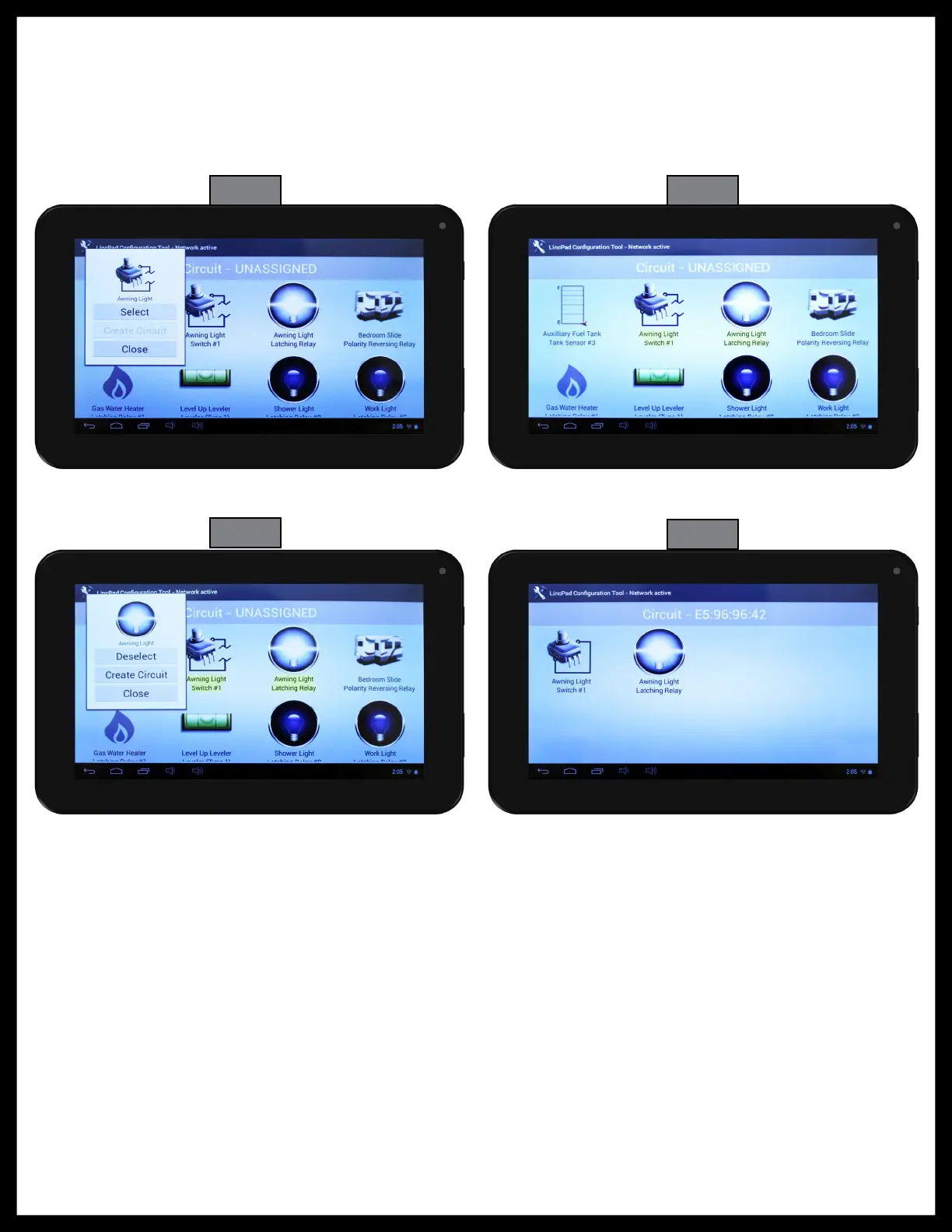

Fig. 11 Fig. 12
Fig. 13
Fig. 14
