Lippert Components Project 2000 12600 Series User Manual

Rev: 11.21.2014
Page 10
Euro Loft Bed Lift by Project 2000 Owner's Manual
2. Move the bed upwards for a few centimeters, lower the bed and check the exact stop position: if
it does not match the desired position, loosen the 14 mm bolt fastening the button and rotate the
button to the extent that it is deemed necessary and try again to lift and lower the bed. Repeat the
operation until the desired position is reached. Remember to fasten the 14mm bolt.
How to correctly check the end of stroke connection:
1. Control panel, by pressing the UP button the bed must go up and it must go down when pressing the
DOWN button.
2. When pressing the end-of-stroke button while lifting the bed to the highest position, the bed must
immediately stop.
3. Press the end-of-stroke button (the one mounted on the mechanical encoder) to set the lowest
position while lowering the bed: the bed must immediately stop.
After doing this, check that the end of strokes are synchronized.

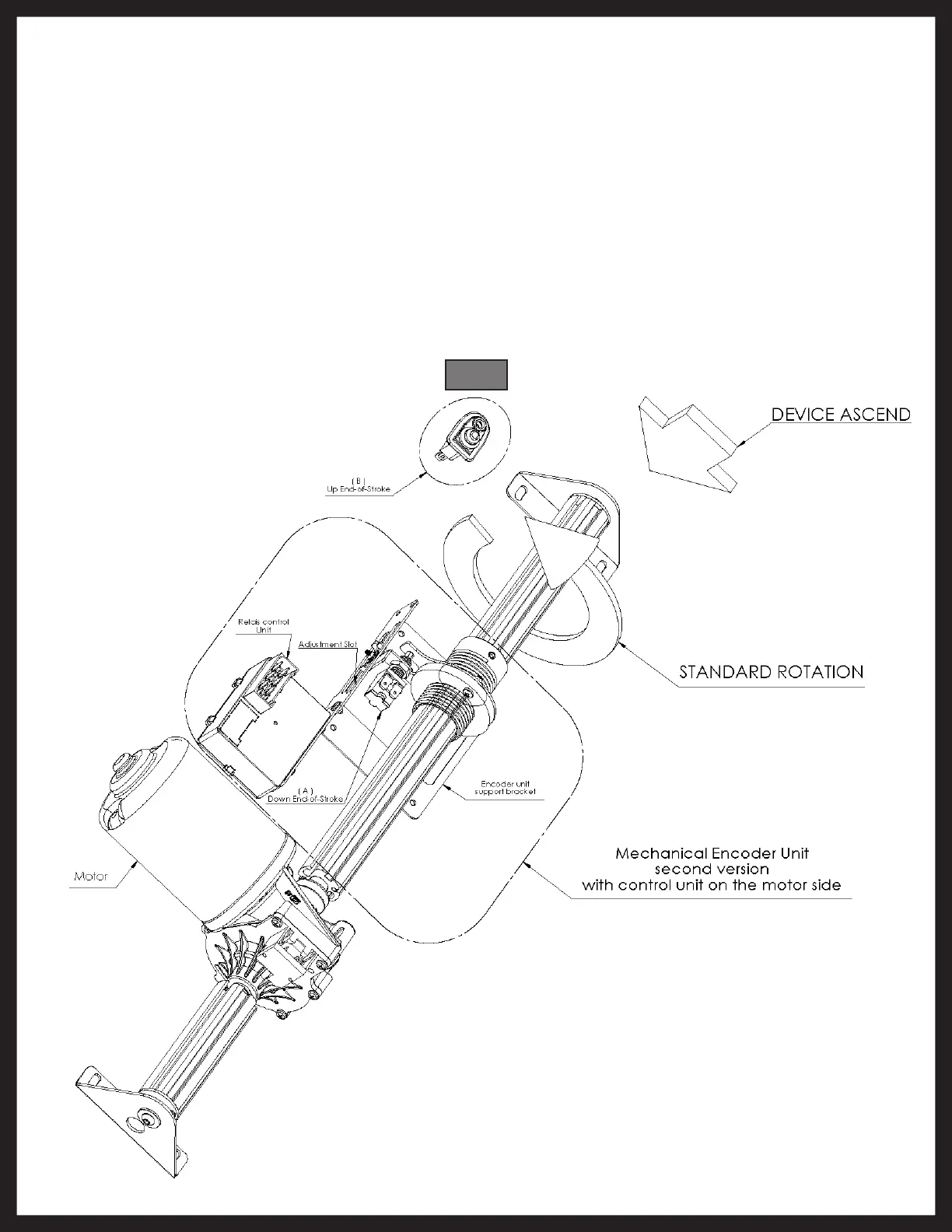

Fig. 3
