Lippert Components Project 2000 12600 Series User Manual

Rev: 11.21.2014
Page 11
Euro Loft Bed Lift by Project 2000 Owner's Manual

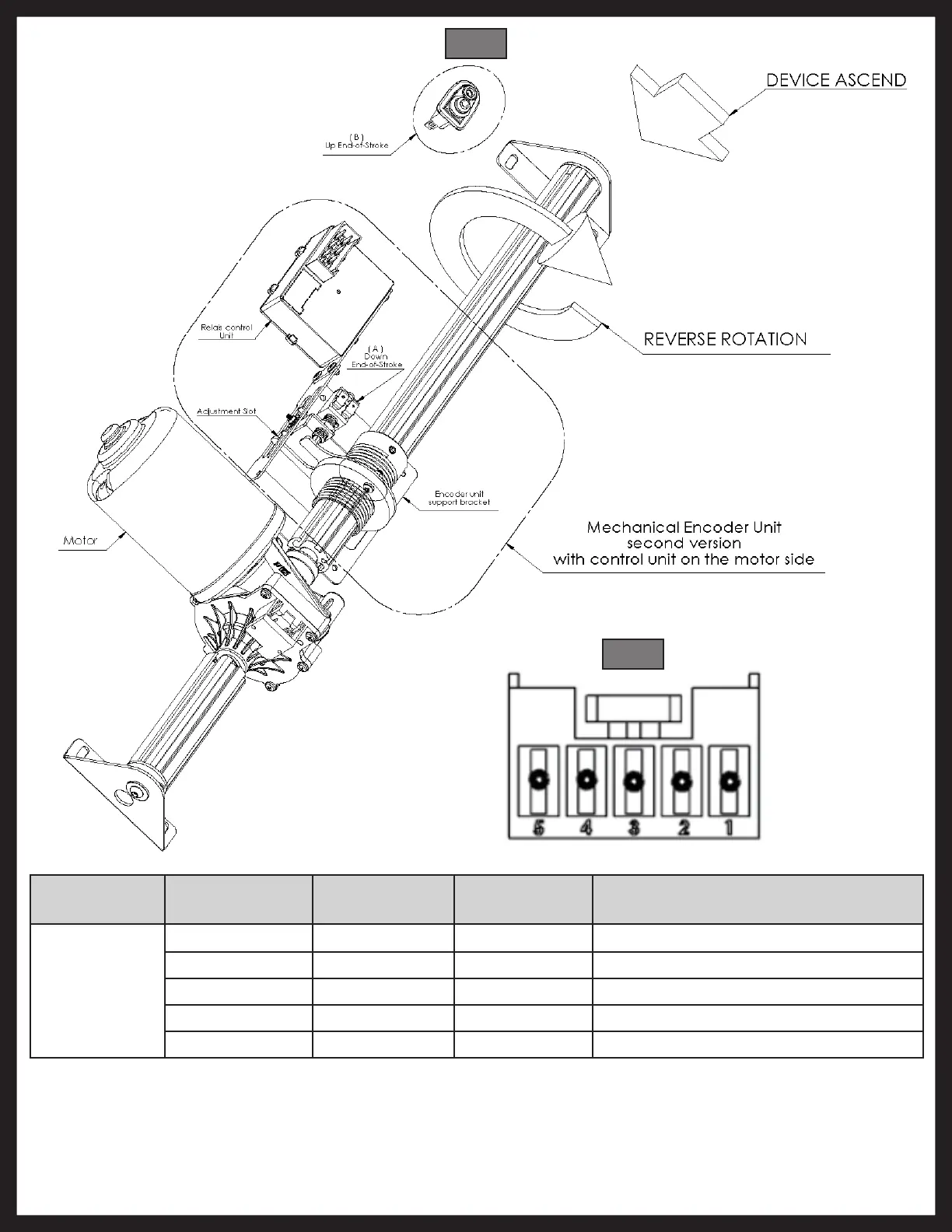

Fig. 4
Fig. 5
Silkscreen
Printing
Logic ID Range Clamps Description
(C-3)
MOT2 DC 0-12 V Pin 5 Motor (Grey)
MOT1 DC 0-12 V Pin 4 Motor (Brown)
Not used Pin 3 Not used
Not used Pin 2 Not used
Not used Pin 1 Not used
The motor has a 5-pole connector for a female movable connector represented in Fig. 6. The picture shows the
connector from the cables connection side.
Wires No. 4 and 5 are motor connections, for the wiring please refer to diagram in Fig. 7.
