Rev: 06.05.18 Page 6
CCD-0001360

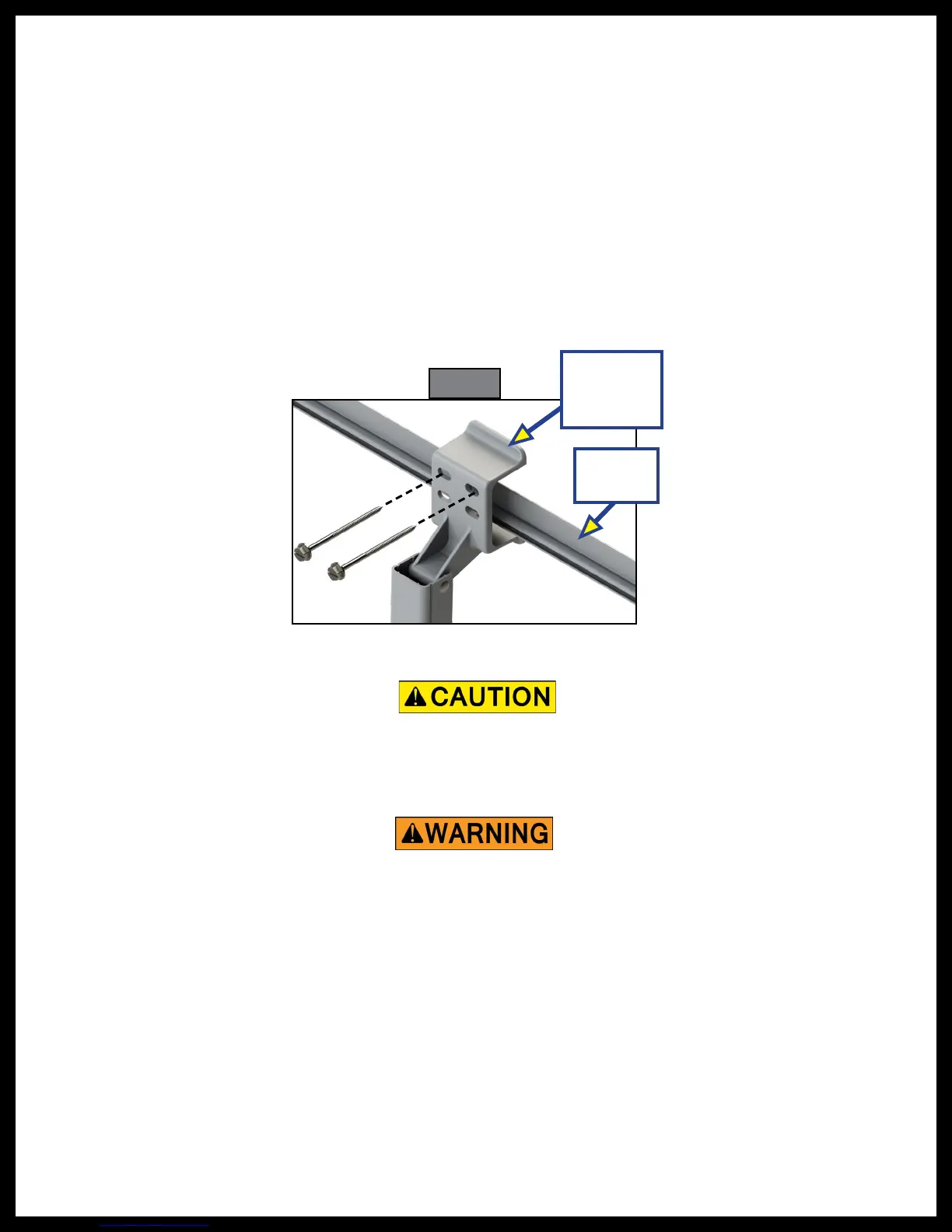

Awning
Rail
Upper
Mounting
Bracket
Fig. 10
10. Center the upper mounting brackets on the support arm assembly centerline marked previously and
arrange the upper mounting brackets to straddle the awning rail. Tighten the black locking knob on
the mount/rafter arm upper channel (channel #3) (Fig. 7).
11. Once the upper bracket is located, mark and pre-drill two
⁄
” holes through the awning rail or unit.
Apply a liberal amount of sealant over the holes and attach the upper mounting bracket using the
¼
”
x 3” lag screws provided (Fig. 10).
NOTE: All screws supporting the awning assembly MUST have a backer within the structure of the wall of
the unit. Refer to the unit manufacturer for proper location. It is acceptable that the lag screws go
through the flat portion of the awning rail.
12. Repeat steps 9-11 for the other support arm assembly.
13. Place cam lock into the roll up position. Firmly grasp the roll tube and remove the safety cotter pin
from each end of the roll tube.
14. Flip the cam lock down to the roll in position and allow the fabric to slowly roll up.
Use care when removing the cotter pins. The cotter pins are holding the
pre-wound tension of the spring. Failure to securely hold the roll tube may allow the roll tube to
rapidly roll up and cause personal injury or damage.
Failure to maintain control of the roll tube, fabric and support arm assemblies may result in serious
injury or property damage.
