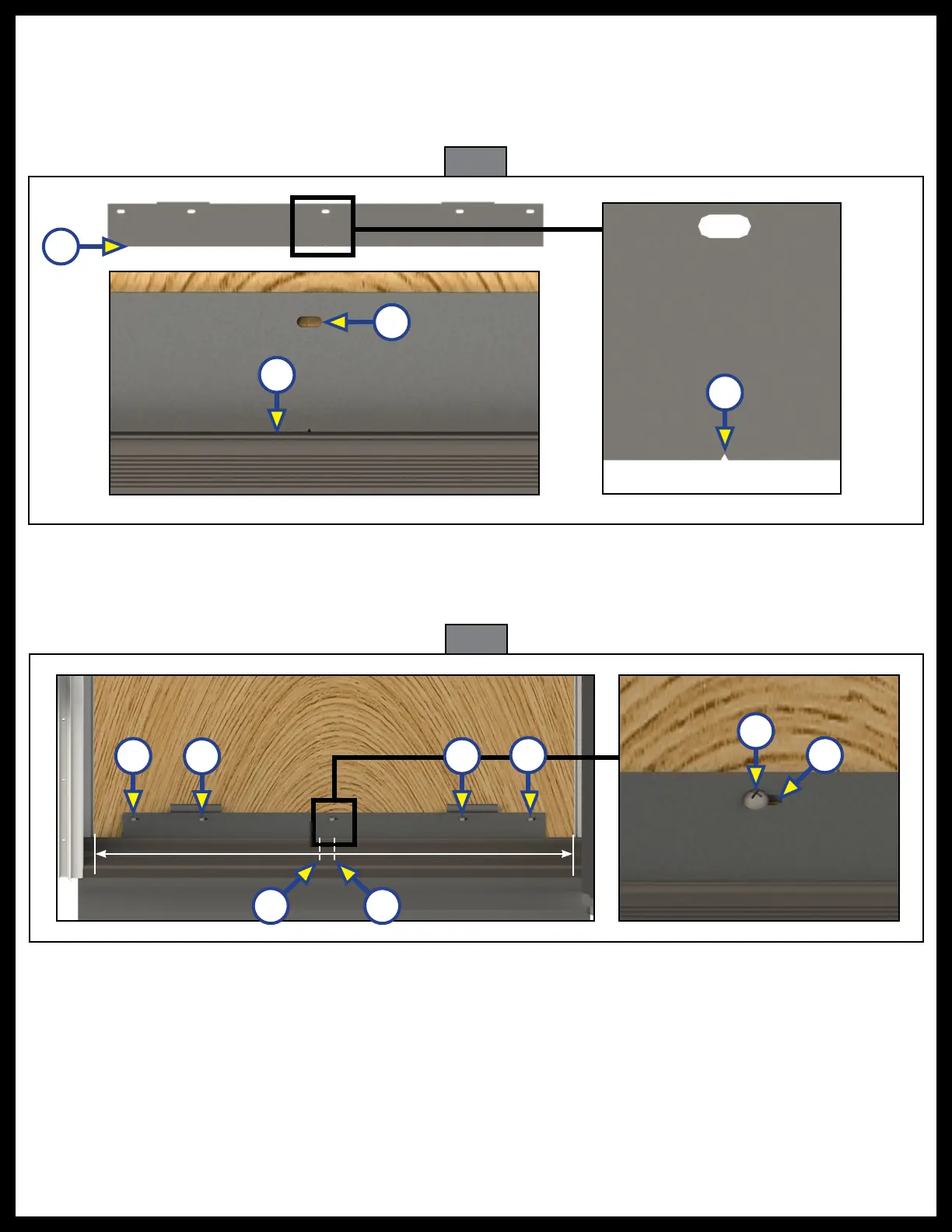

2. Look for the notch (Fig. 5B) at the center edge of the threshold hinge plate (Fig. 5A), this notch will be
aligned to the center of the door frame threshold or 1" left of center, depending on the door frame inner
flange measurement. Figure 6 shows the door frame inner flange for verification. Place the threshold
hinge plate notched side (Fig. 5B), flush against the door frame threshold (Fig. 5D). Screw holes (Fig. 5C) in
the threshold hinge plate will be farthest away from the door frame threshold.
3. Use the measurement of the inner flange to inner flange and find the center (Fig. 6A). Align the threshold
hinge plate notch to the center of the door frame threshold or if the door frame is an odd measurement,
to the left 1" from the center (Fig. 6B) of the door frame inner flange measurement.
Fig. 5
C
C
C
C
C
AB
B
A
C
D
Fig. 6
4. Install #10 x 1 1/2" wood screws for a wood floor or #10 x 1 1/2" self-tapping screws (Fig. 6C) for a
laminate floor in the five predrilled screw holes (Fig. 6D).
