Lippert Components SolidStep XF Oem Installation Manual

Rev: 04.27.21 Page 6 CCD-0004123
Fig. 7
A
B
Fig. 8
C
C
B
A
A

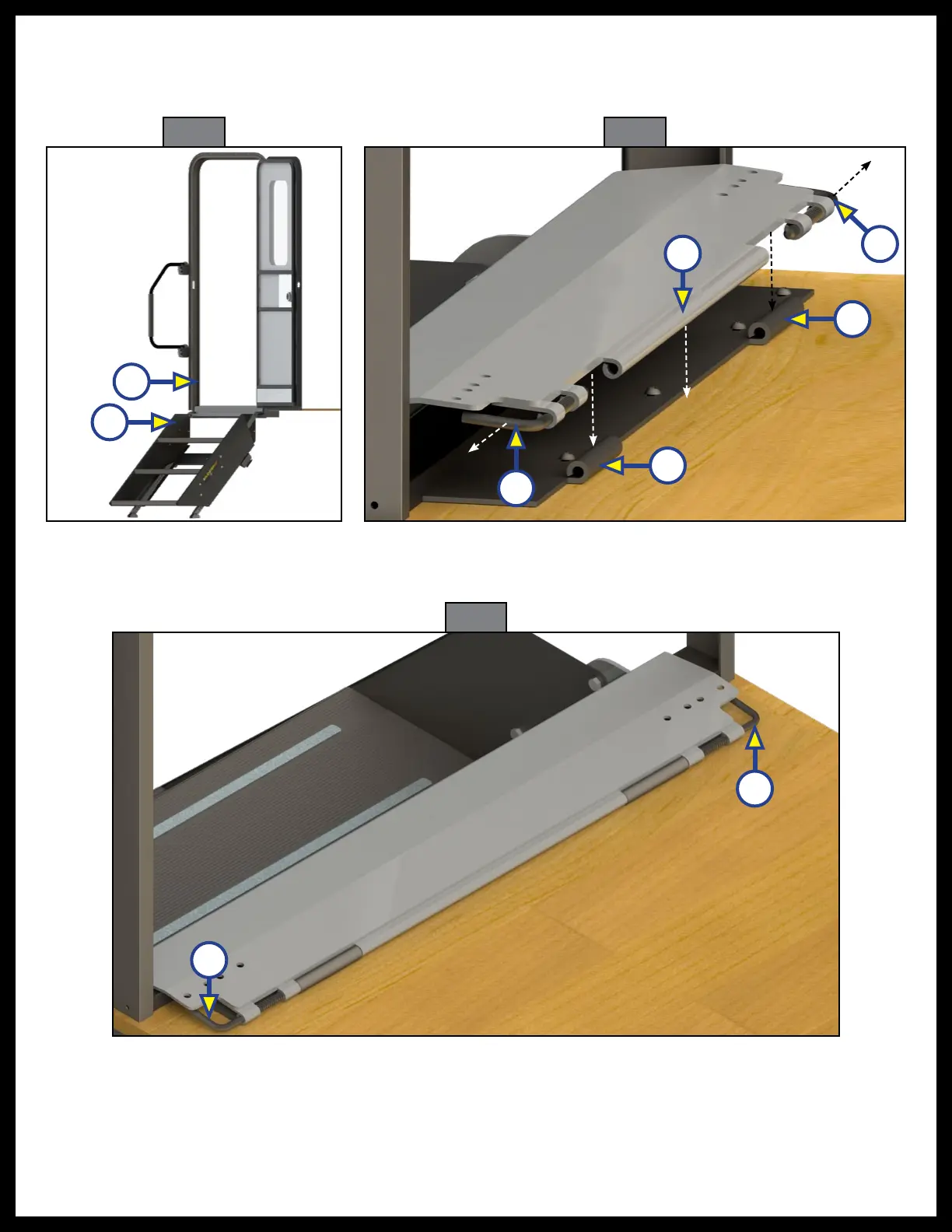

5. Place the SolidStep XF assembly (Fig. 7B) into the door frame (Fig. 7A), in the extended position.
6. Pull the spring loaded hinge pins (Fig. 8A) out and move the Solidstep XF assembly towards the threshold
hinge plate aligning the center hinge barrel (Fig. 8B) with the threshold hinge plate barrels (Fig. 8C).
Fig. 9
A
A
7. Release the spring loaded threshold pins (Fig. 9A) so that the Solisdstep XF assembly is now attached
to the threshold hinge plate.
