5. Scroll down to the next field of FUSE TYPE (Fig. 16A), select a fuse and press SET (Fig. 16B) to
save the selection. Saved! (Fig. 16C) will appear in the lower left corner, replacing Loaded!
NOTE: The next options are all pre-loaded but will not be active until SET is pressed and Saved! appears in
the lower left corner.
6. IGNITION OPERATION MODE (Fig 17): Scroll down to IGNITION OPERATION MODE.
7. Choose one of the options (Fig. 18): Always or Only with Ignition On.
8. Press SET (Fig. 18A). Saved! will replace Loaded! on the screen (Fig. 19A).
9. PARK BRAKE OPERATION MODE (Fig. 20): Scroll down to PARK BRAKE OPERATION MODE.
10. Choose one of the options (Fig. 21): Always or Only with Park Brake On.

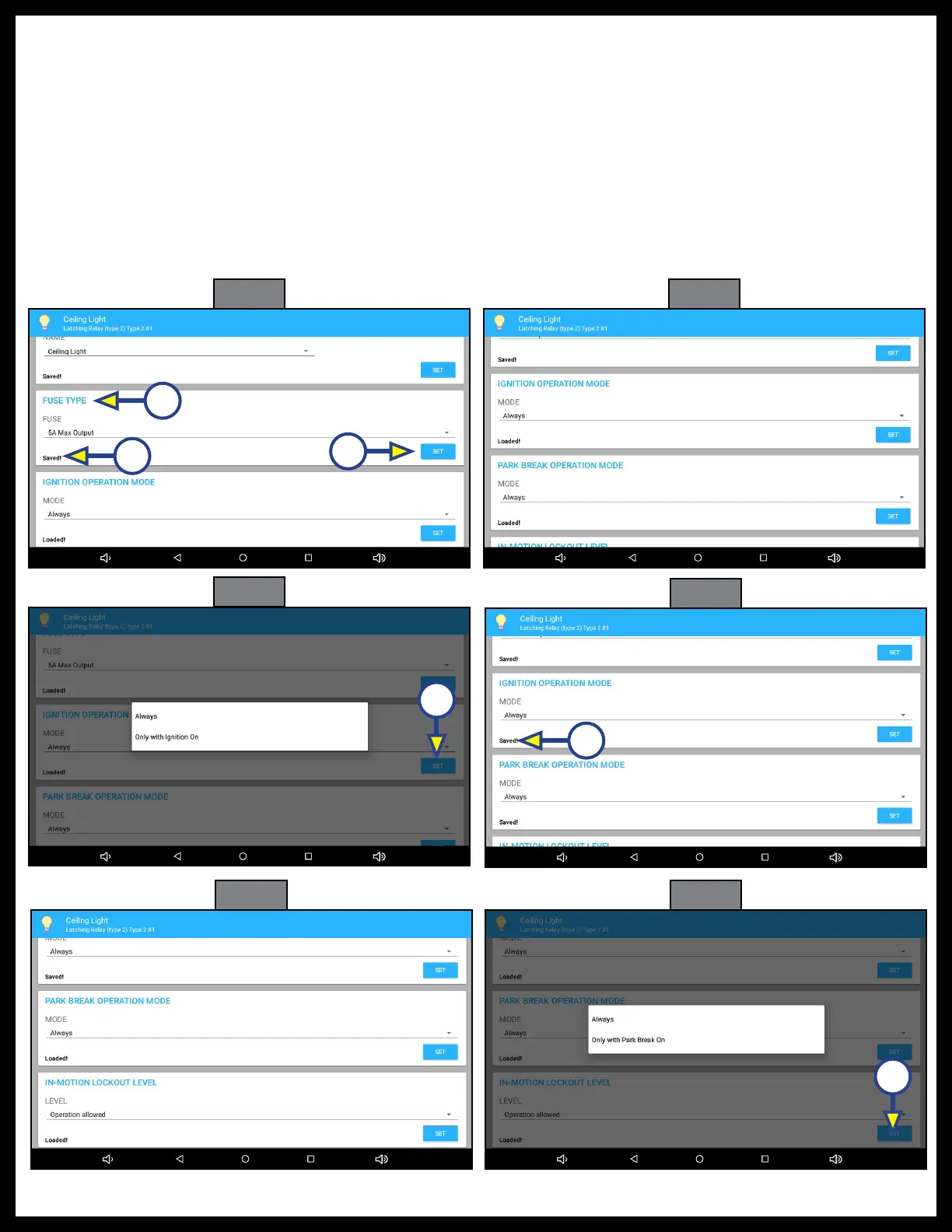

Fig. 16
Fig. 17
Fig. 18
Fig. 19
C
A
A
Fig. 20 Fig. 21
A
A
B
