Lippert Unity X4 - Tank Sensor Configuration; Naming and Setting Tank Sensors

Rev: 05.06.23 Page 21 CCD-0007005

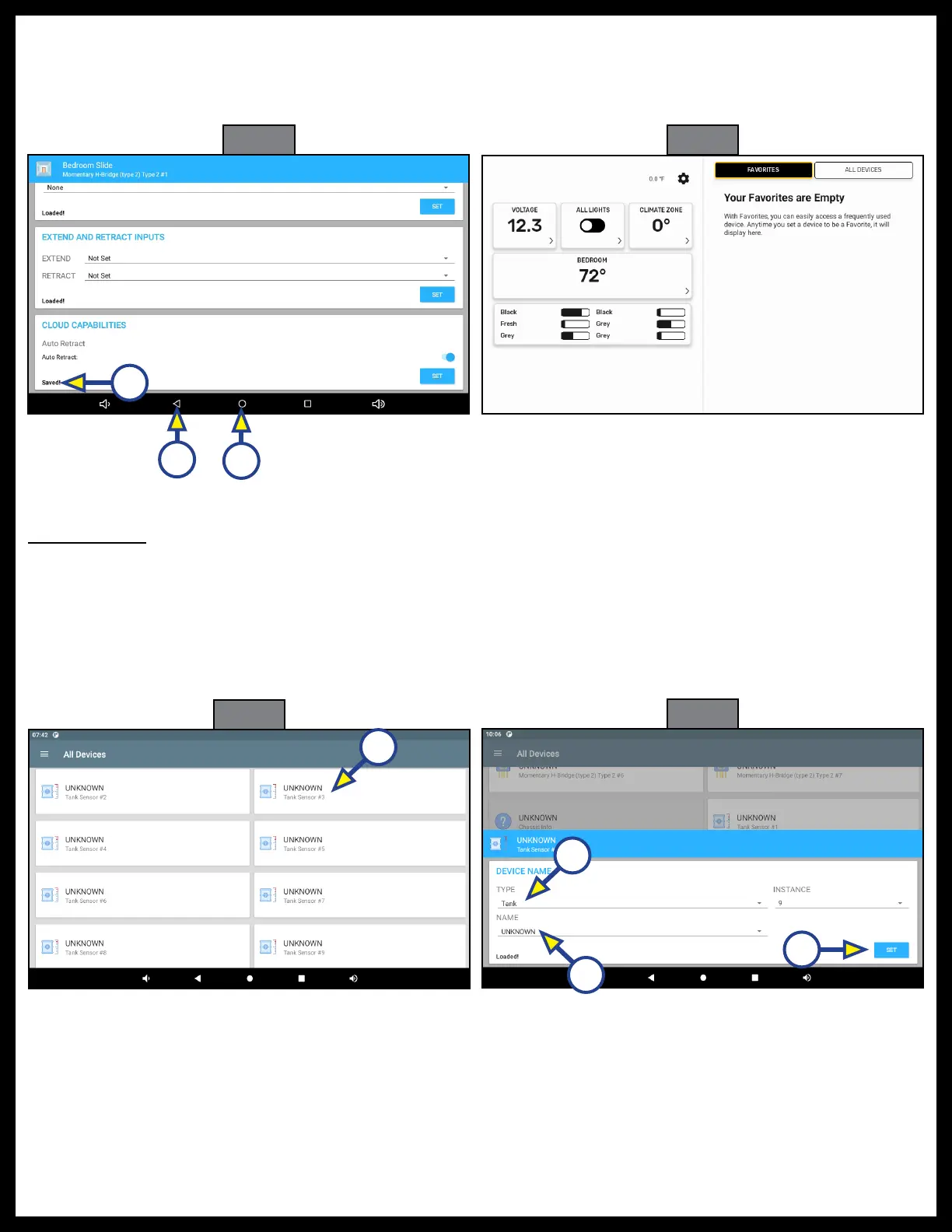

20. Saved! will appear on the screen in the lower left (Fig. 60A).
21. Press the back button (Fig. 60B) to return to the main configuration screen.
22. Press the Home button (Fig. 60C) to return to the Home screen (Fig. 61).
Fig. 60 Fig. 61
A
B
C
Tank Sensors
1. Tap UNKNOWN Tank Sensor (Fig. 62A).
2. Under TYPE tap Tank (Fig. 63A) to open up the selections and select the type of tank being named.
NOTE: The default is type is Tank.
3. Under NAME tap UNKNOWN (Fig. 63B) to select the appropriate name for the tank.
4. Tap SET (Fig. 63C) to confirm settings.
A
Fig. 62
Fig. 63
A
B
C
