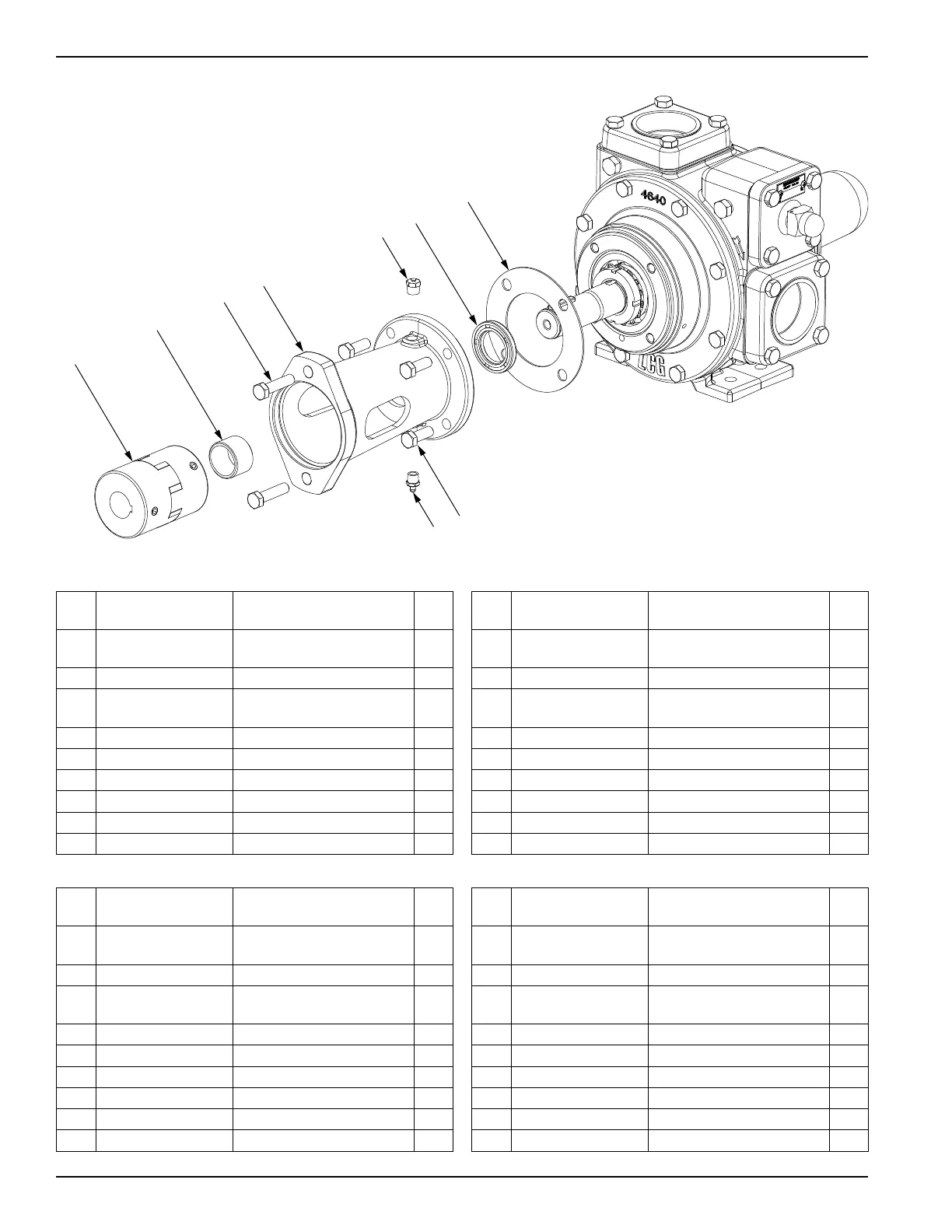

Appendix E—Part Details for the PT-Series Hydraulic Drive Adapter
1
2
1
3
5
6
7
8
9
4
Ref
No.
Part Description Qty
11380-1
CJ 28/38 coupling
(1-1/8" x 1")
1
2
1
4897
1
Hydraulic lockring 1
37301-120MC040A
M12 x 1.75 x 40 metric hex
head bolt
2
44898 Hydraulic adapter 1
5 1343 Grease relief fitting 1
6 5586 Grease seal 1
7 5595 Bearing cap gasket 1
8 2158 Grease zerk 1
9 7001-037NC100A 3/8-16 x 1 hex head bolt 6
Ref
No.
Part Description Qty
11380-2
CJ 28/38 coupling
(1-1/8" x 1-1/4")
1
2
1
4897
1
Hydraulic lockring 1
37301-120MC040A
M12 x 1.75 x 40 metric hex
head bolt
2
44898 Hydraulic adapter 1
5 1343 Grease relief fitting 1
6 5586 Grease seal 1
7 5595 Bearing cap gasket 1
8 2158 Grease zerk 1
9 7001-037NC100A 3/8-16 x 1 hex head bolt 6
PTH30 Hydraulic Drive Assembly
4898-X1 (1-1/8" x 1" Bore Size)
PTH20 and PTH25 Hydraulic Drive Assembly
4899-X1 (1-1/8" x 1" Bore Size)
Ref
No.
Part Description Qty
11380-2
CJ 28/38 coupling
(1-1/8" x 1-1/4")
1
2
1
4895
1
Hydraulic lockring 1
37301-120MC040A
M12 x 1.75 x 40 metric hex
head bolt
2
44899 Hydraulic adapter 1
5 1343 Grease relief fitting 1
6 4679 Grease seal 1
7 4657 Bearing cap gasket 1
8 2158 Grease zerk 1
9 7001-037NC100A 3/8-16 x 1 hex head bolt 4
Ref
No.
Part Description Qty
11380-1
CJ 28/38 coupling
(1-1/8" x 1")
1
2
1
4895
1
Hydraulic lockring 1
37301-120MC040A
M12 x 1.75 x 40 metric hex
head bolt
2
44899 Hydraulic adapter 1
5 1343 Grease relief fitting 1
6 4679 Grease seal 1
7 4657 Bearing cap gasket 1
8 2158 Grease zerk 1
9 7001-037NC100A 3/8-16 x 1 hex head bolt 4
4898-X2 (1-1/8" x 1-1/4" Bore Size)4899-X2 (1-1/8" x 1-1/4" Bore Size)
1
Used on models shipped prior to December 1, 2009. The hydraulic lockring is not necessary for the operation of the pump.
34
