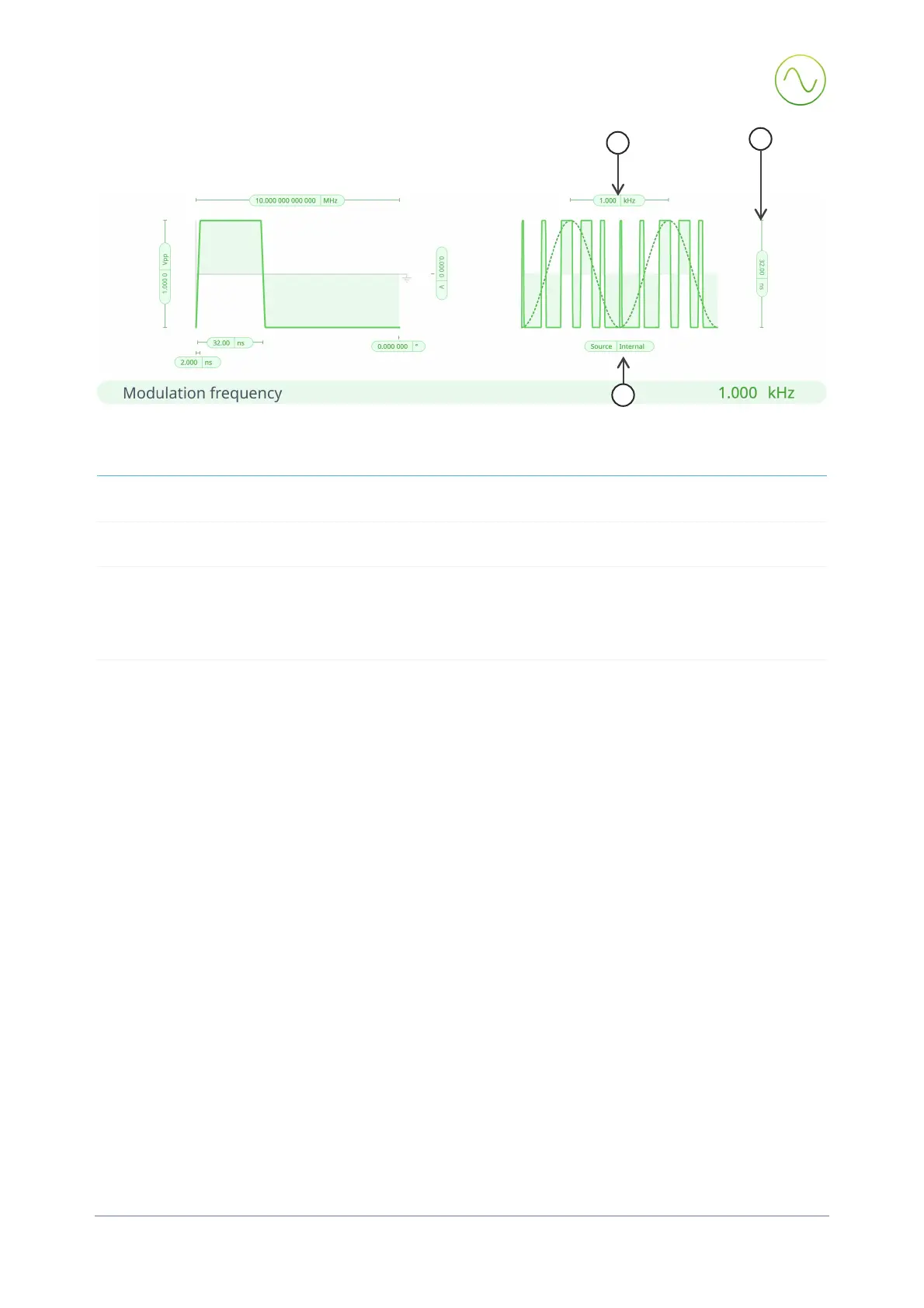

Pulse-width modulation
ID
Parameter
Description
1
Frequency
Only for “Internal” modulation source. The frequency of the sine wave
being used for modulation.
2
Depth
Full-range pulse-width deviation. A full-range input signal will vary the
output width by this amount.
3
Modulation source
The modulation source can be an internally-generated sinewave,
Moku:Pro analog input, or the other Waveform Generator channel.
When using an analog input, the user can further select the input
range, impedance, and coupling.
