User interface

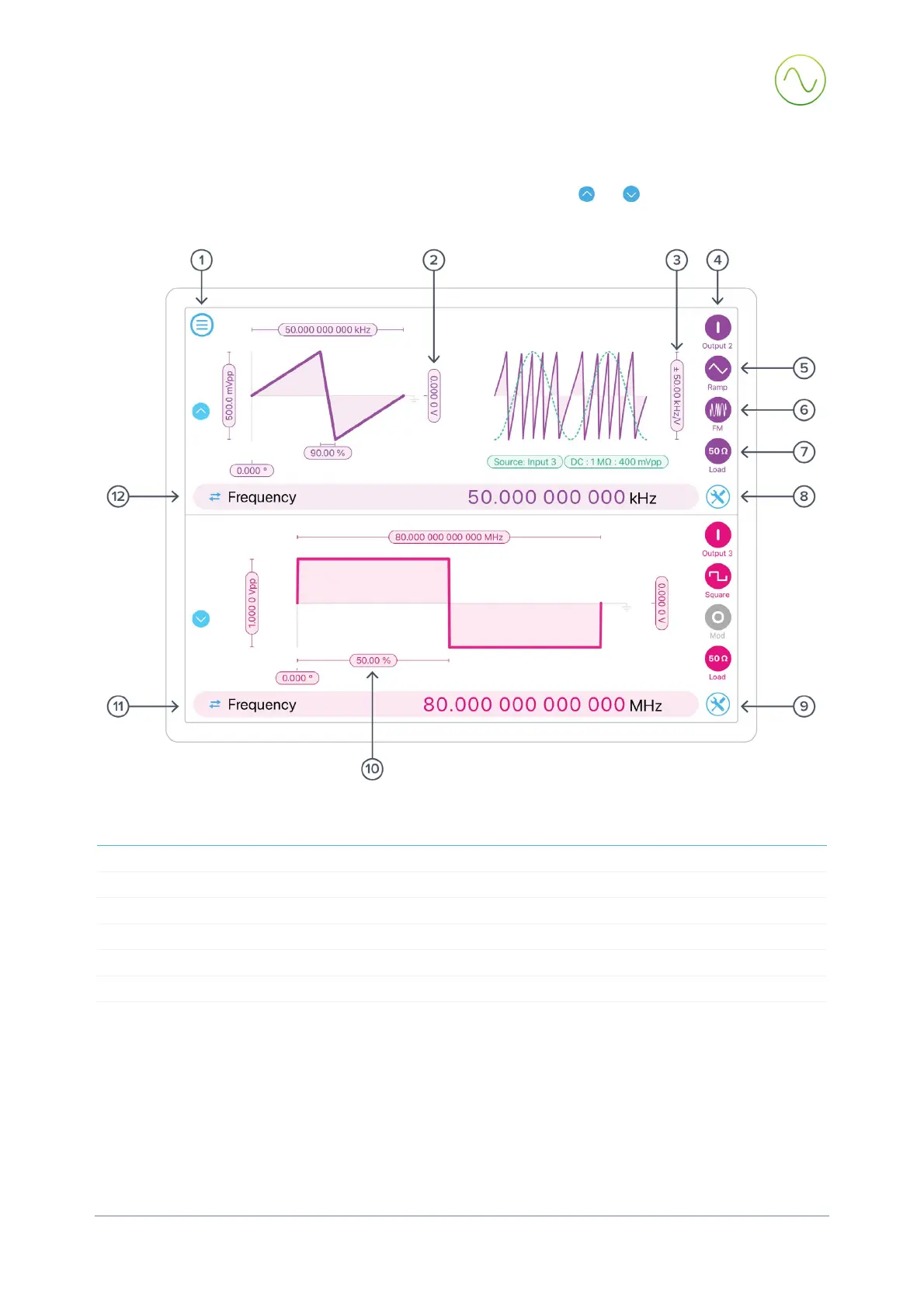

Moku:Pro is equipped with four output channels. You can tap the or icons to navigate
between channels.
ID
Description
ID
Description
1
Main menu
7
Configure output load (50 Ω or 1 MΩ)
2
Configure offset
8
Settings (Ch 2)
3
Configure modulation depth
9
Settings (Ch 3)
4 Enable / disable output 10 Configure square duty cycle
5
Waveform shape
11
Switch parameter representations
6
Configure modulation
12
Switch parameter representations
