Triggered modulation modes
Sine, square, ramp, pulse, and noise waves can be triggered from an internal or external source.
The behavior upon receipt of the trigger signal varies according to mode.

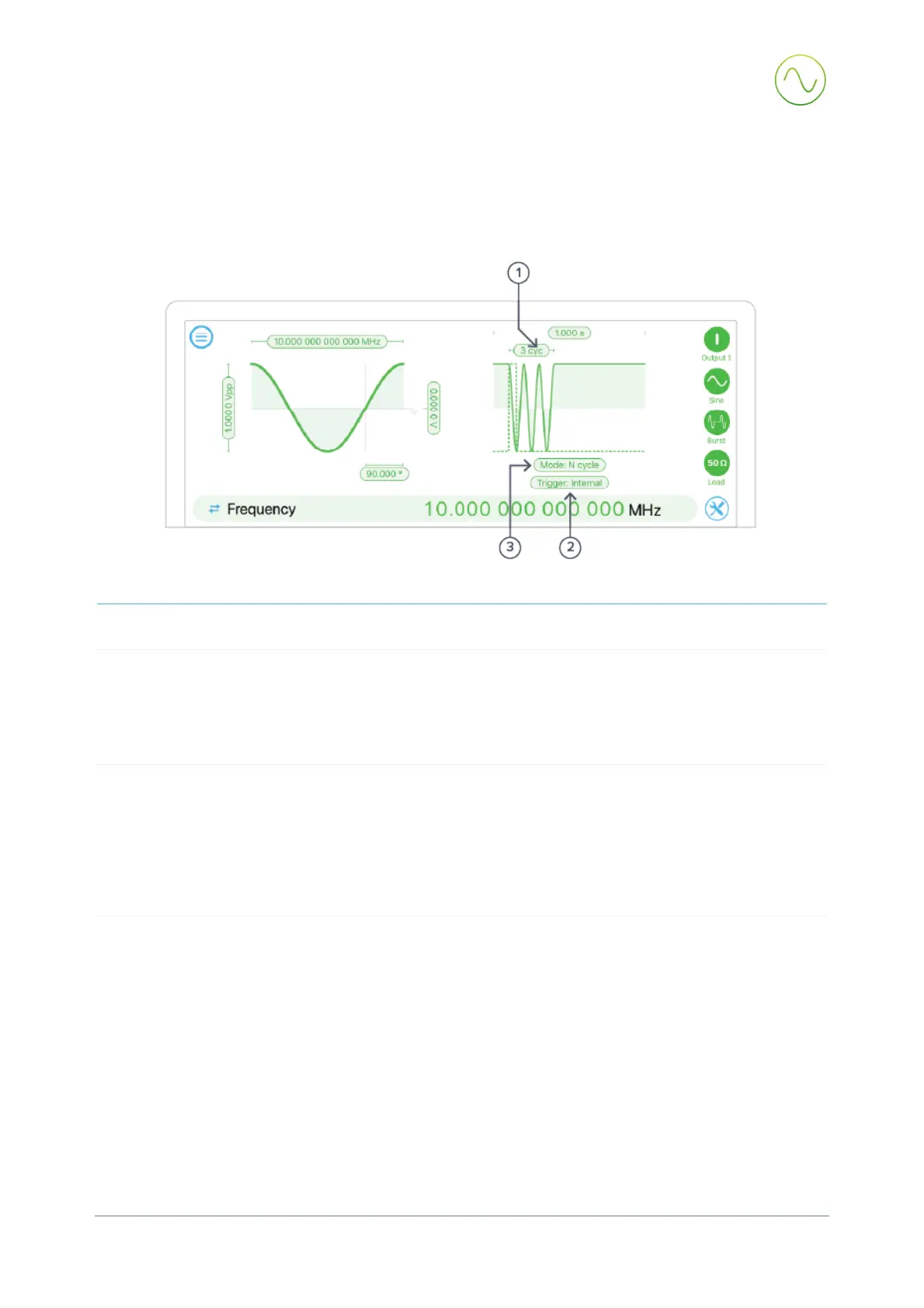

Burst
ID
Parameter
Description
1 Cycle count
N Cycle and Gated mode only. The number of cycles or time to
output the waveform before re-arming.
2
Trigger source
One of:
Internal:
Trigger automatically at the defined rate.
External
: Trigger event on from rear-panel external trigger input.
Input
: Trigger from associated input channel, at given voltage.
Output
: Trigger from another output channel, at given voltage.
3
Mode
One of:
Gated
: Continue to generate the output signal while ever the trigger
event is asserted (level-triggered).
Start
: Begin generation of the waveform on trigger, continue
indefinitely.
N Cycle
: Upon receipt of trigger signal, generate N cycles of the
waveform then re-arm. Not supported for noise waveform.
