Sweep
Sweep modulation acts like frequency modulation with a sawtooth, where the sawtooth starts on
the trigger event.
Sweep modulation is not supported for the Noise waveform as it has no defined frequency.
ID
Parameter
Description

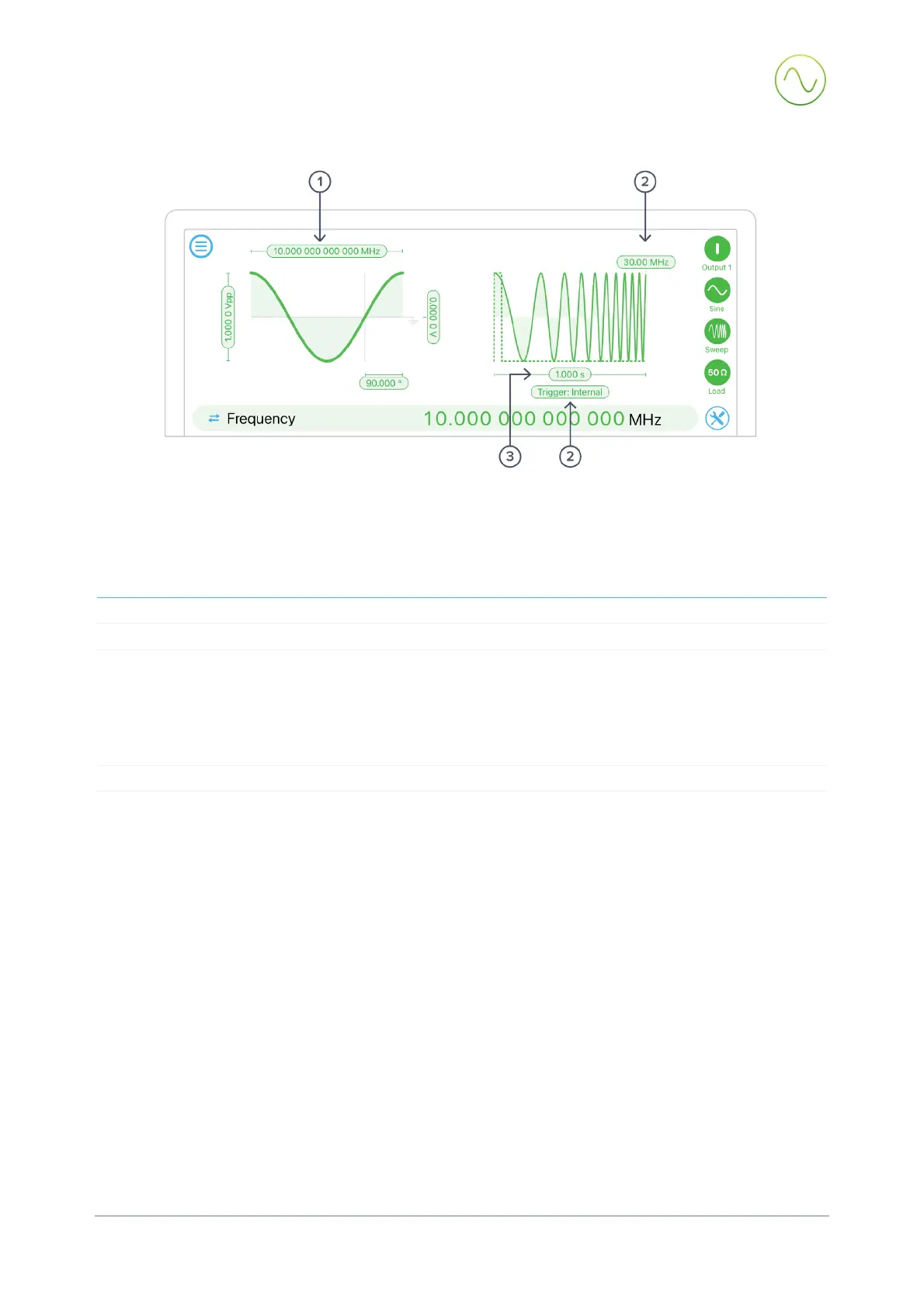

1 Start frequency Waveform frequency at the trigger event (sweep start).
2
End frequency
Waveform frequency at the sweep end.
3
Trigger source
One of:
Internal:
Trigger automatically at the defined rate.
External:
Trigger event on from rear-panel external trigger input.
Input:
Trigger from associated input channel, at given voltage.
Output:
Trigger from another output channel, at given voltage.
4
Sweep time
Time between sweep start and end (period).
