HIRO BUGGY Stroller for Special Needs Children Revision 2 Page 11

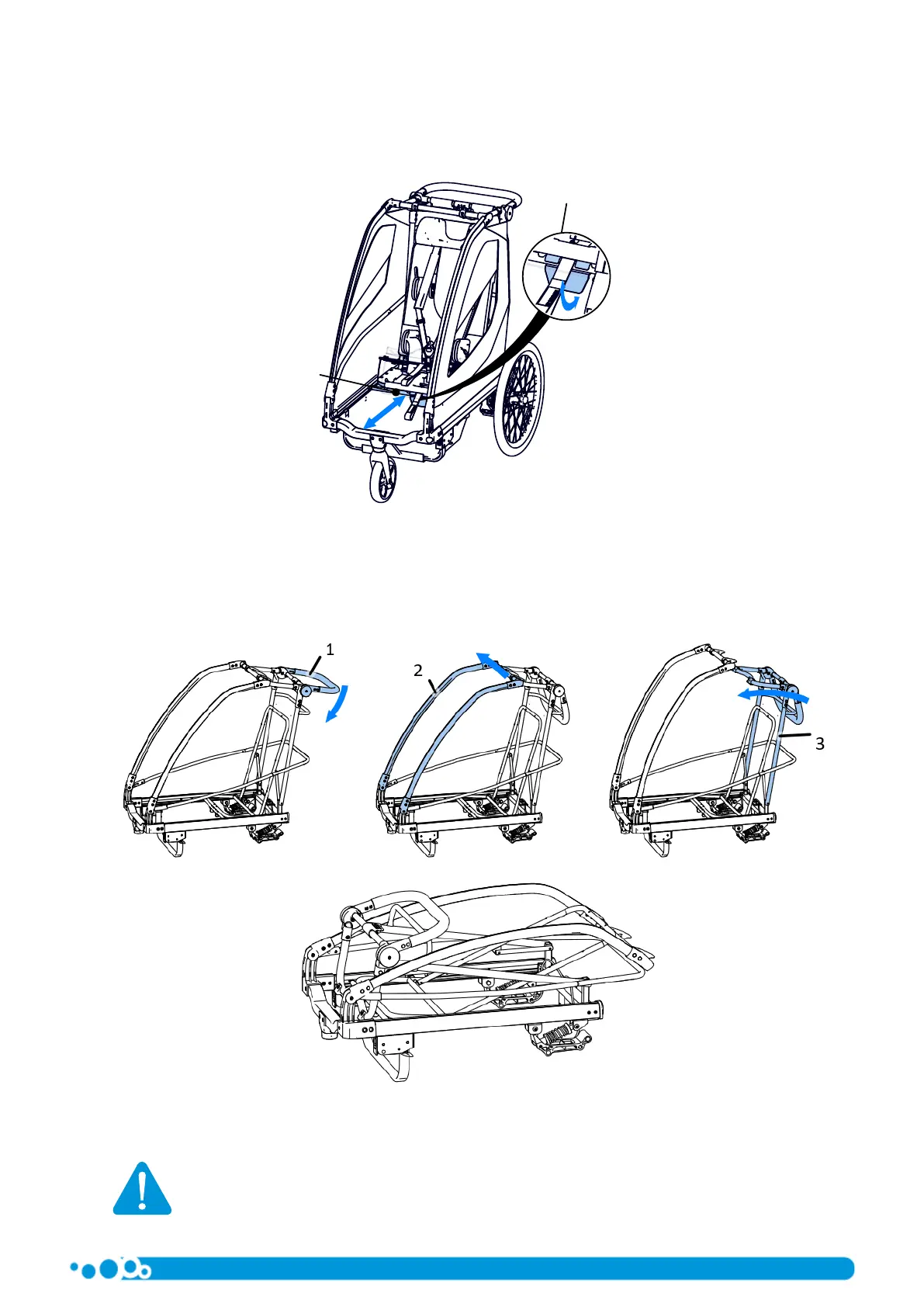

Now, unlock the seat (1) by moving the lock towards (2) and move the seat to the frontmost position. Leave the seat loose
for further folding.
Fig. 9
Lower the handle (1) so that it does not interfere with the folding operation, lift the front frame (2) slightly so that it is
possible to fold the frame (3), with the handle facing forward, under the bar of the front frame (2).
ATTENTION! When folding the frame, pay particular attention to potential pinch points
created by the movable elements.
