Page 12 HIRO BUGGY Stroller for Special Needs Children Revision 2

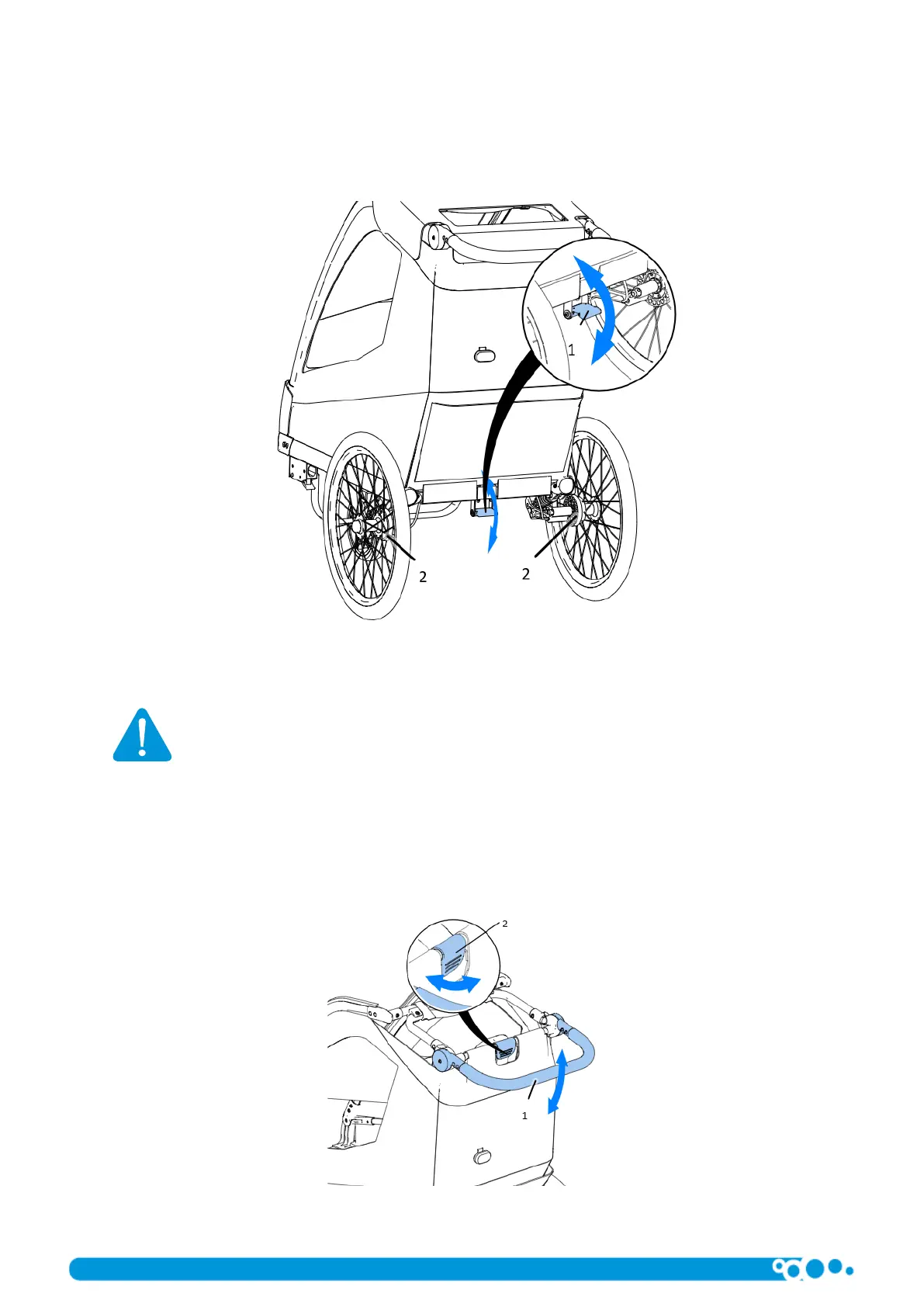

7.2 Rear wheel lock – parking brake
The HIRO BUGGY Special Needs Stroller is equipped with a parking brake that locks the right and left wheel simultaneously.
Pressing the brake pedal (1) locks the brake pins in the openings of the wheel rosettes (2). The brake is released by moving the
brake pedal (1) upwards.
Fig. 11
ATTENTION! The brake condition needs to be regularly checked and any accumulated
dirt and mud removed.
7.3 Push handle adjustment
The push handle (1) is adjusted using a lever (2) located under the back part of the upper upholstery. In order to change the
position of the handle, unfasten this part of the upholstery and pull the lever (2). This will unlock the handle (1) and now you can
adjust its position. After choosing the right handle position, push the lever (2) down in order to lock the handle.
Fig. 12
