HIRO BUGGY Stroller for Special Needs Children Revision 2 Page 13

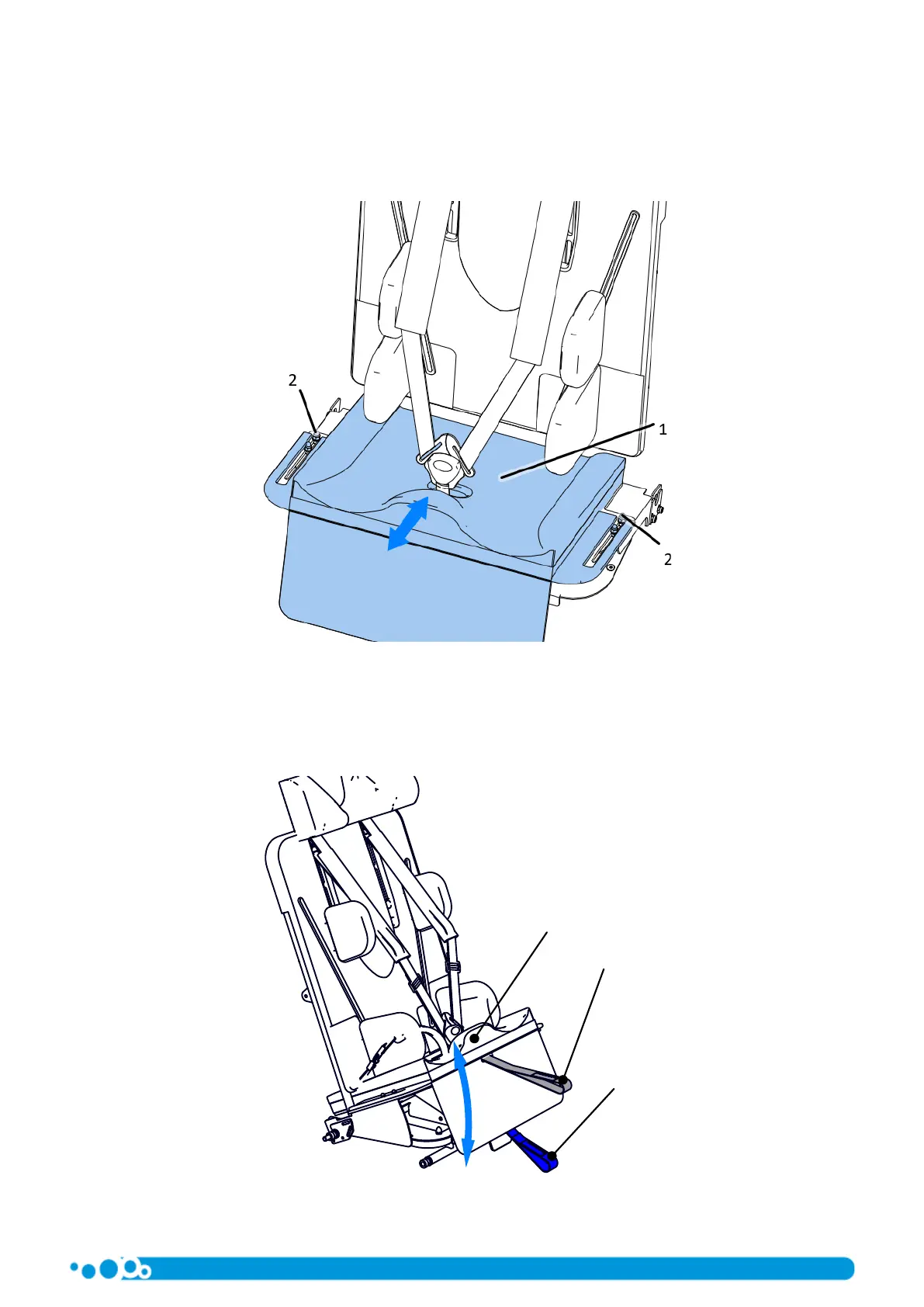

7.4 Seat adjustment
In order to adjust the seat length (1), loosen the nuts (2) located at the sides of the seat using an 8-mm wrench. Then, move
the upholstery together with the plastic base along the guiding grooves until a desired position is achieved. Then, tighten the nuts
(2).
Fig. 13
The seat can be tilted to five angle positions. In order to tilt the seat (1) to a desirable position, pull up the grey stripe (2) “Tilt
Lift” located under the front of the seat (Fig. 14). Every position will lock automatically. To put seat down release locking by puling
blue stripe (3) “Tilt Release” and by the grey stripe get the sit down. After releasing blue stripe the seat will lock in nearest position.
Fig. 14
