HIRO BUGGY Stroller for Special Needs Children Revision 2 Page 9
6.3 Lighting

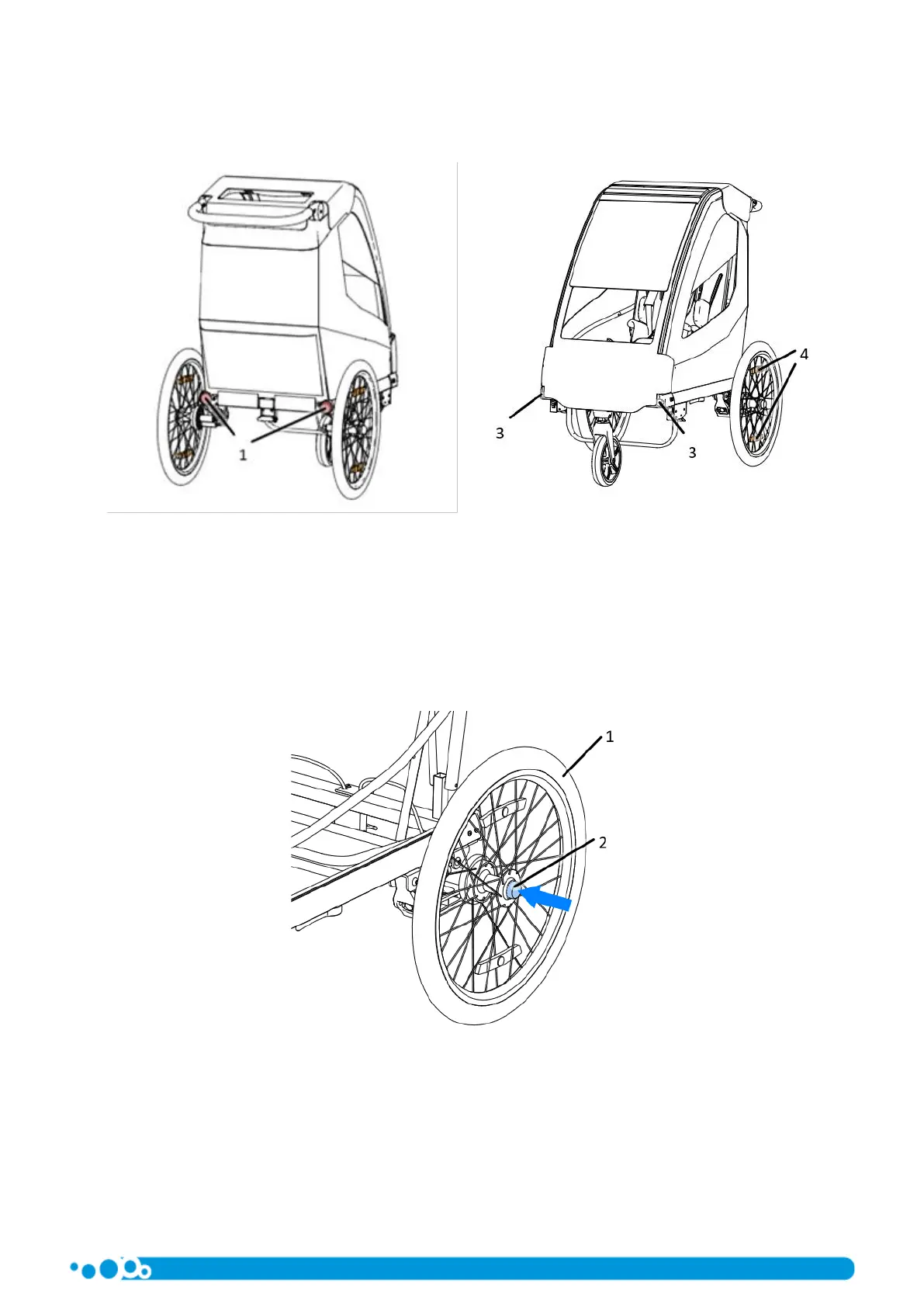

The HIRO BUGGY Special Needs Stroller is equipped with red reflectors (1) located at the rear wheel axle level. In the front
part of the stroller, there are white reflectors (3). In addition, there are orange reflectors mounted on the wheels (4).
Fig. 5
7 Folding and adjustment instructions
7.1 Stroller folding
Before starting to fold the stroller, first remove the driving wheel from the frame and any additional accessories attached to
the frame. In order to remove the rear wheels (1), press the button (2) located at the wheel hub and pull the wheel away from
the frame.
Fig. 6
The front wheel (1) of the stroller is removed by pressing the button (2) at the side of the wheel mount and then pulling the
wheel downwards.
