Page 18 HIRO BUGGY Stroller for Special Needs Children Revision 2

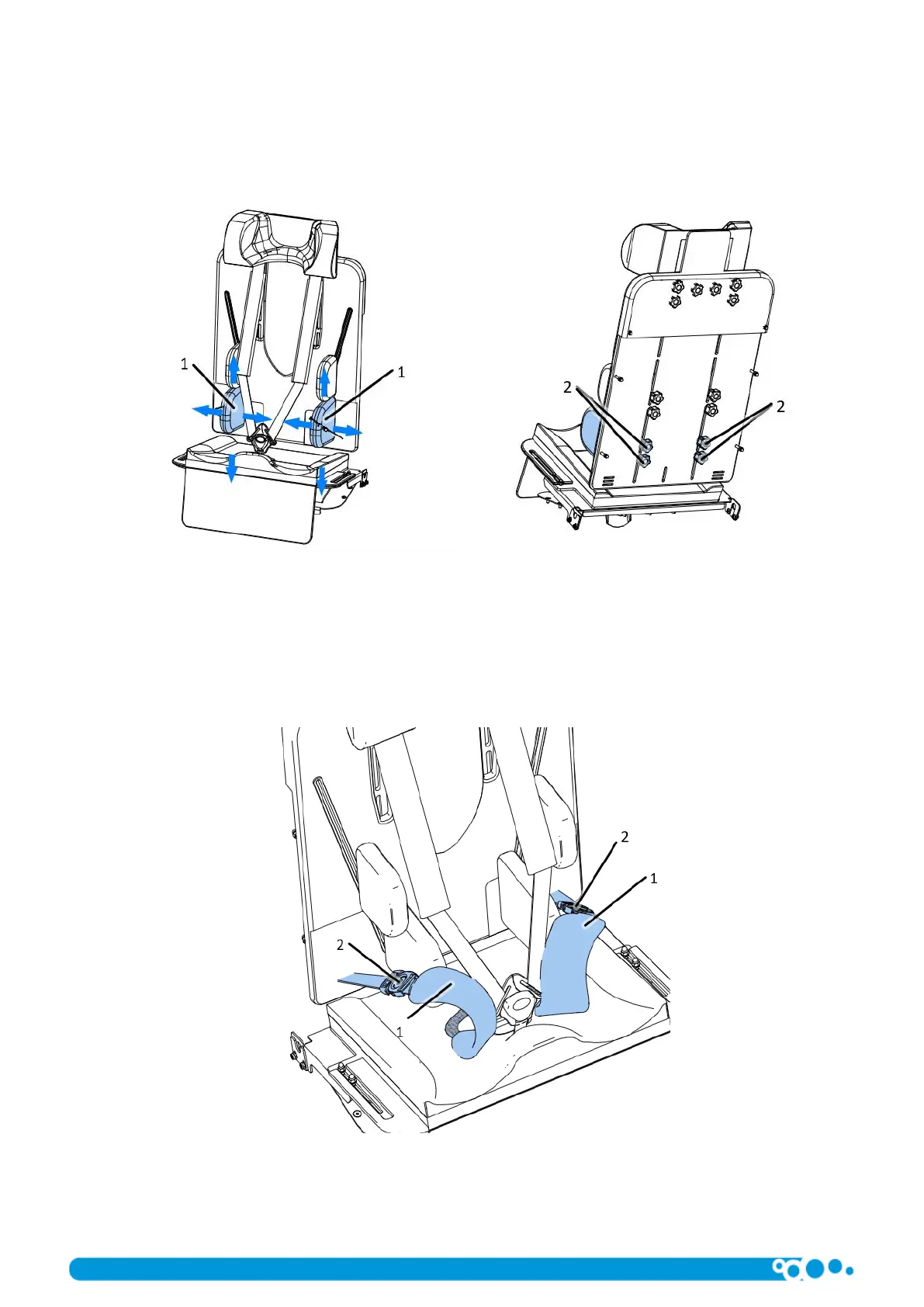

8.2 Hip supports
The hip supports (1) ensure correct position and stabilisation of the child’s pelvis and hips. The supports can also be used to
improve the body posture. The height and width adjustment of the hip supports is possible after loosening the knobs (2) located
at the lower back of the backrest. After setting up the hip supports, tighten the knobs.
Fig. 22
8.3 Stabilising belt
The stabilising belt (1) is designed to stabilise the pelvis and hips. The belt length is adjusted directly on the fastening
buckles (2).
Fig. 23
