LXC31X0/LXC39X0 User Manual Dongguan Tuancheng Automation Equipment Co.,LTD.
: T:+86 769-23162896 : F:+86 769-23166296  :www.lixise.com Page 26 of 28

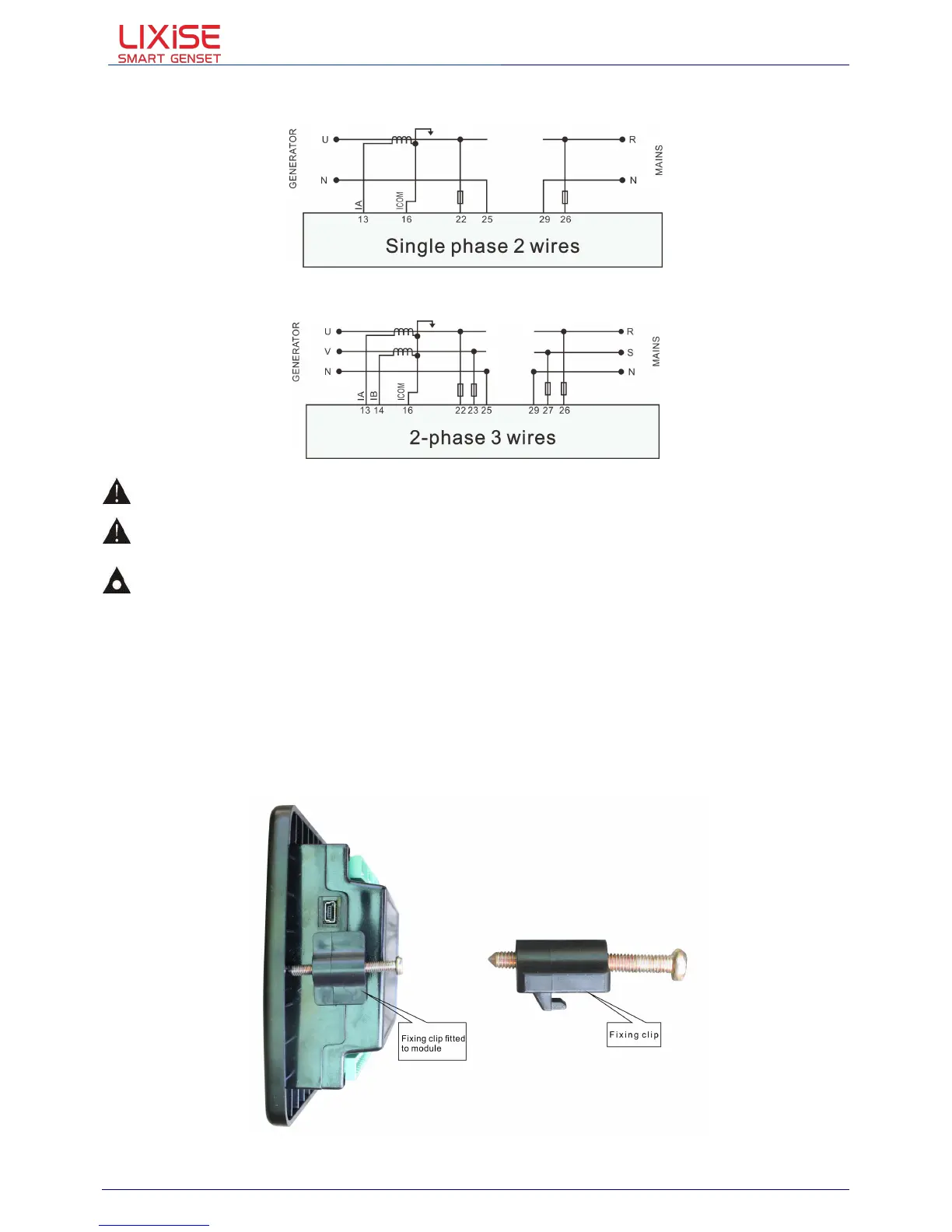

Single Phase 2 Wire( LXC3X20 )
2 Phase 3 Wire( LXC3X20 )
CAUTION! Expand relay with high capacity in start and fuel output is recommend.
CAUTION! Expand relay must be used in mains/gen closed outputs.
CAUTION! Let its normally closed contact series connect between fuel relay output port and
electromagnetic valve when you connect emergency stop button on the controller. Emergency stop alarm
can be displayed if you configure one input port as “Auxiliary Shutdown” (one end connect to normally
open contact, the other end connect to ground).
10. Installation
10.1. Fixing clips
Controller is panel built-in design; it is fixed by clips when installed.

LIXiSE LXC3120 Specifications

General

Brand	LIXiSE
Model	LXC3120
Category	Controller
Language	English
