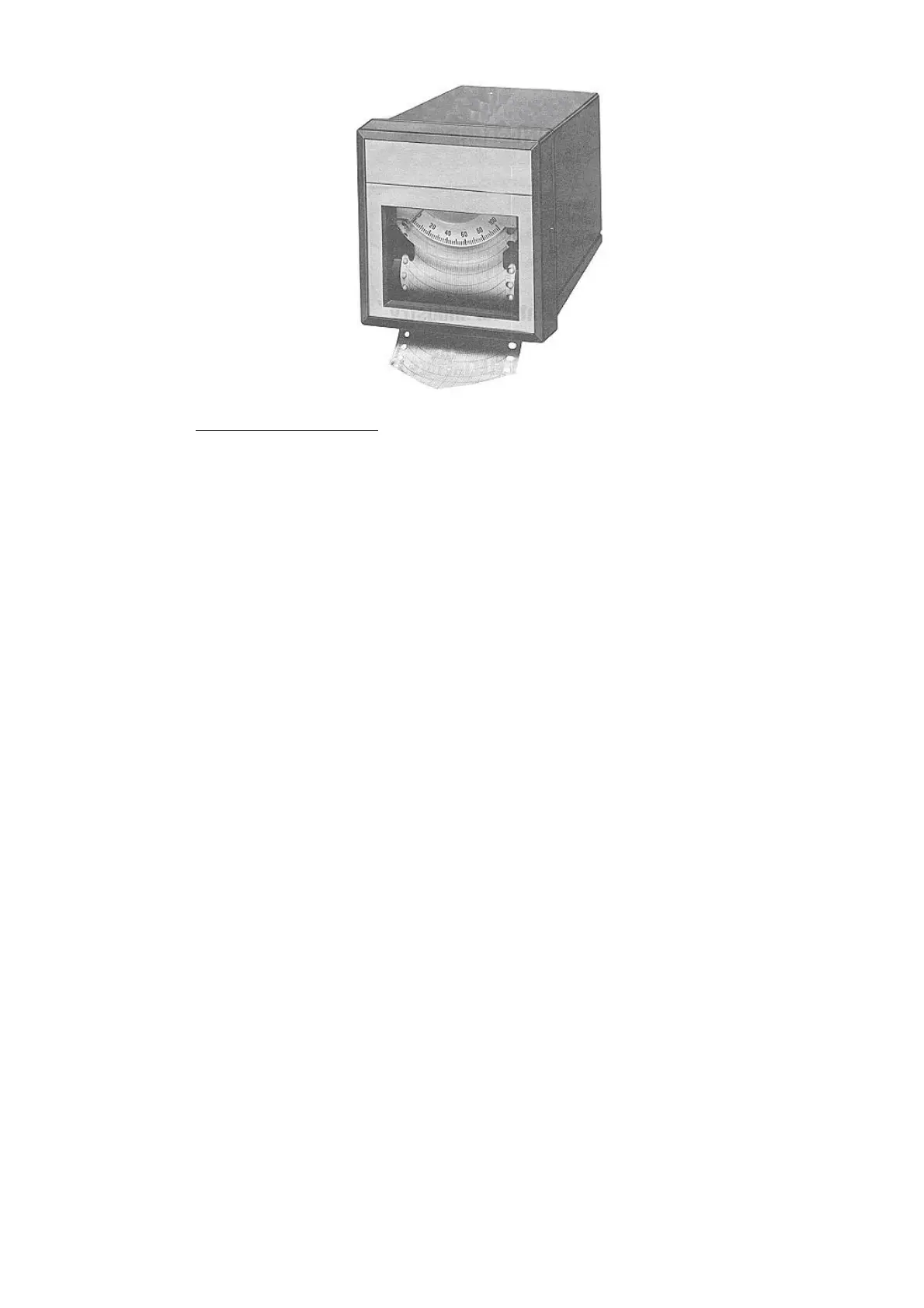

4.4 LMS CHART RECORDER
Chart Paper Loading (see instruction below and illustration on the following page)
1. Remove front bezel by simultaneously pressing the retaining catches
on each side.
2. To gain access to the chart paper cassette (1). First unlock the
meter assembly by moving the locking lever (2) to the left and hinge
outwards. Remove cassette by gripping firmly and pulling forward.
3. To load chart paper. First fit spindle (3) into new roll of chart paper.
Clip roll into spindle retaining slots (4) on the cassette with the paper
unrolling from the bottom. With the chart retaining bracket (5)
lifted, feed the paper onto the sprocketed paper driving wheels (6).
Close chart retaining bracket (5) and check paper feed by operating
the manual feed wheel (7).
4. Replace cassette to engage chart drive gear (9) and close hinged
meter assembly ensuring that the locking lever (2) latches closed.
Caution: Take care not to damage the meter pointer or imprint stylus when closing
the meter assembly.
Operation (see figure below)
Load chart paper as previously described. If required, the meter pointer/stylus (8)
can be set to mechanical zero, with power off, by carefully turning the zero
adjustment screw (11)
