3 General venting
16

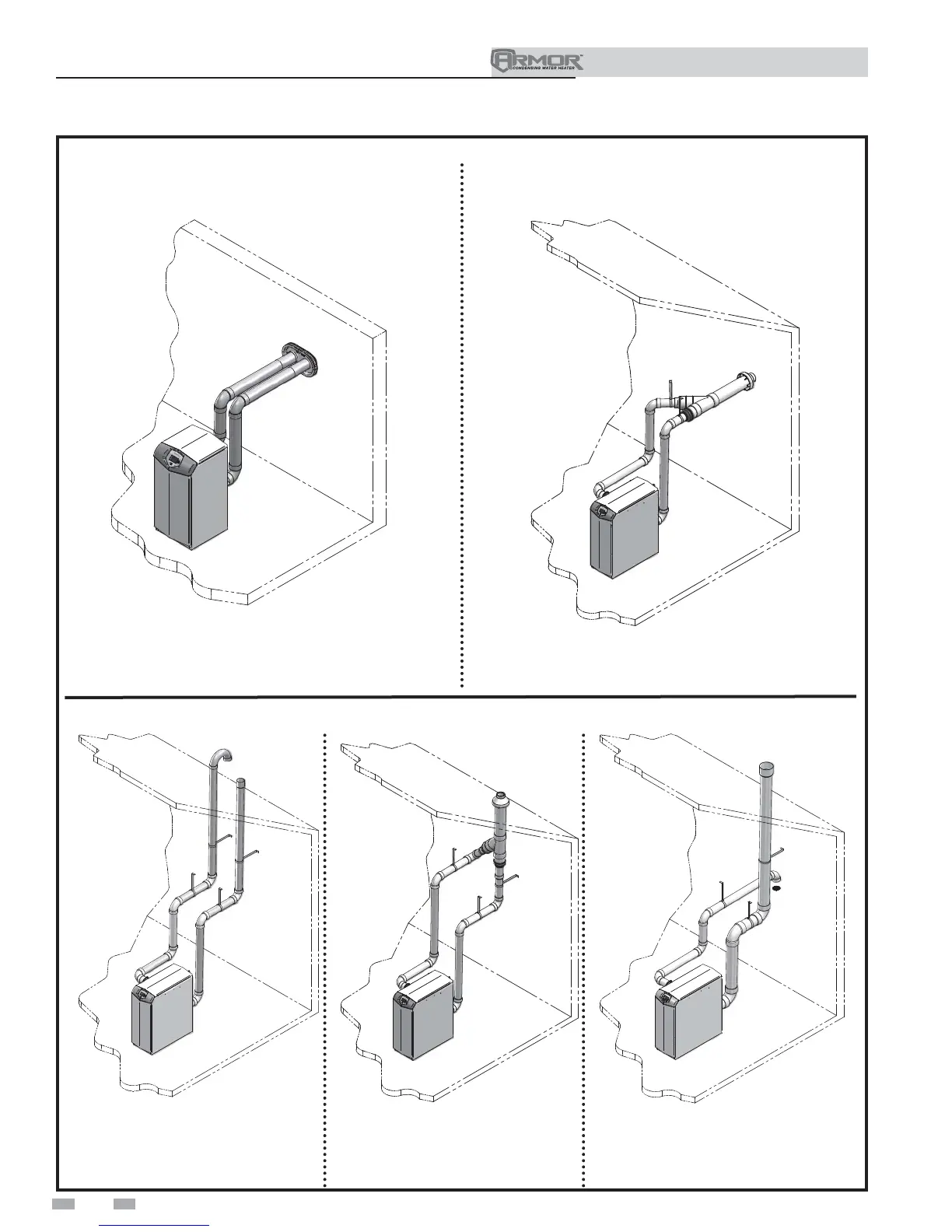

Figure 3-1 Two-Pipe Sidewall Termination - See page
24 for more details
Figure 3-3 Two-Pipe Vertical
Termination - See page 31 for more
details
Direct venting options - Sidewall Vent
Figure 3-2 PVC/CPVC Concentric Sidewall Termination
(Models 151 - 601 Only) - See page 28 for more details
Figure 3-4 PVC/CPVC Concentric
Vertical Termination (Models 151 -
601 Only) - See page 33 for more
details
Figure 3-5 Vertical Vent, Sidewall
Air - See page 20 for more details
Direct venting options - Vertical Vent
