Loctite 97102 - Description; Functional Sequence; Time Controlled Mode; Continuous Mode

When a product reservoir is connected, the pressurization or depressurization of the automatic
reservoir is automatically controlled when the control unit is switched on or off.
When an empty signal is received, the automatic reservoir 97106 / 97108 is automatically depressurized.
The control unit indicates that the automatic reservoir was refilled. By acknowledging this message
with button the automatic reservoir is again pressurized.
2.3 Functional Sequence

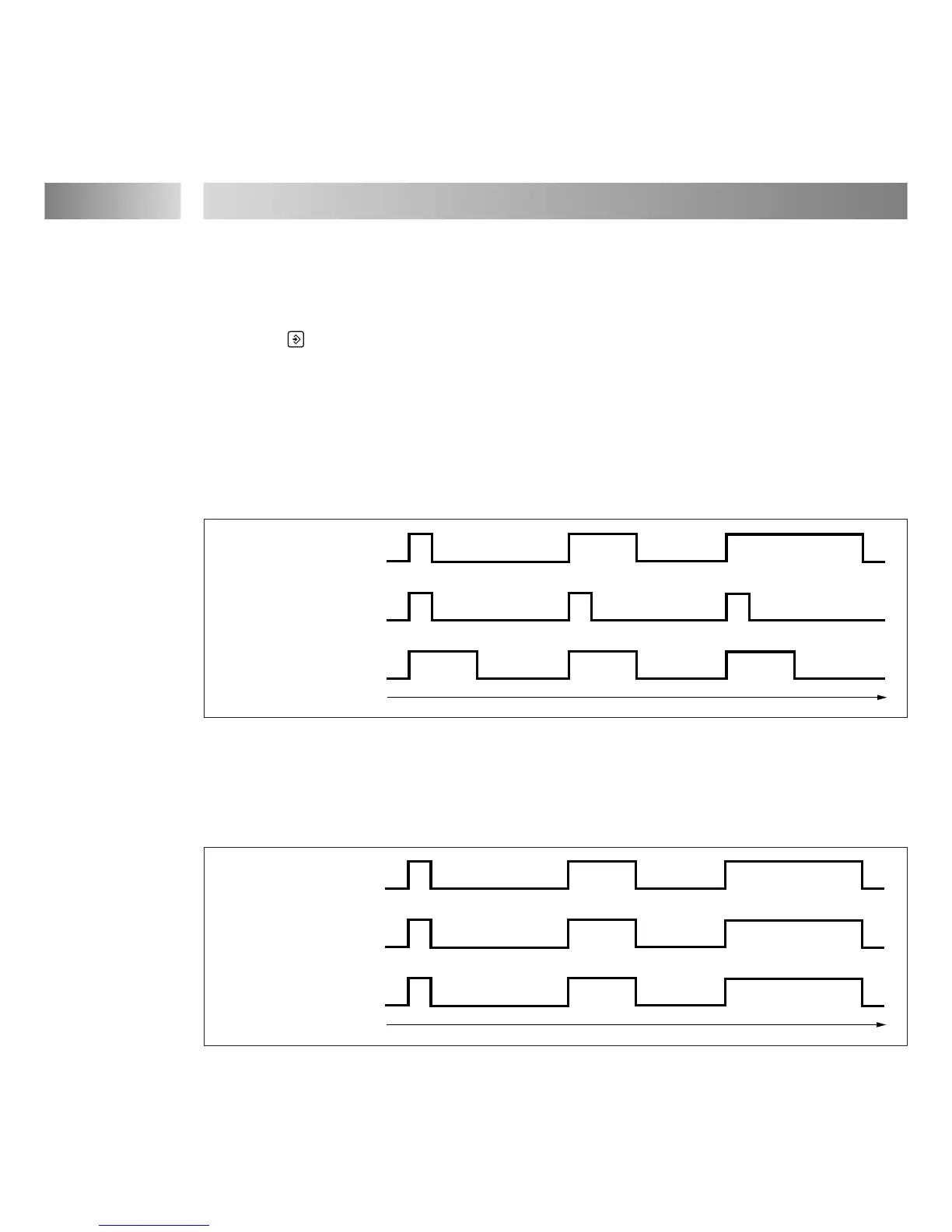

2.3.1 Time Controlled Mode
Also see Section 5.1.2.1!
Activation time
of the start switch
Duration
of the start signal
Dispensing time
2.3.2 Continuous Mode
Also see Section 5.1.2.2!
Activation time
of the start switch
Duration
of the start signal
Dispensing time
Description2
t
t
