Operator manual Corival
6
1 Description of the Corival ergometer

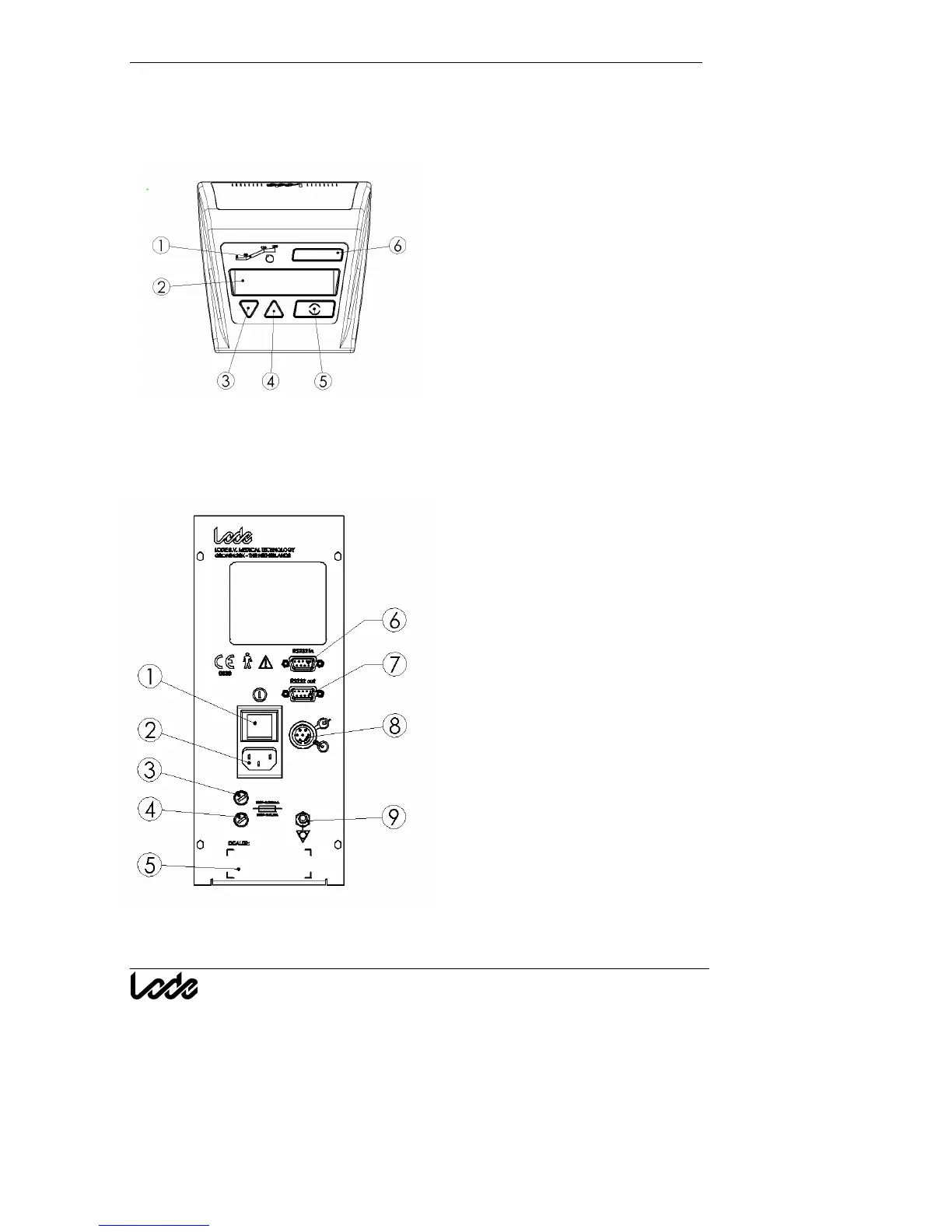

The control panel consists of the following elements:
1. Led indicator for rpm.
2. Display A directed to test subject.
3. Down button.
4. Up button.
5. Confirmation button.
6. Ergometer type indication.
The back panel of the Corival contains the following elements:
1. Mains on/off switch
2. Mains connector
3. Fuse
4. Fuse
5. Dealer information label (if used)
6. RS232 in
7. RS232 out
8. Analog i/o
9. Protective Earth connector
Fig. 2 Back panel connections
Fig. 1 Control Panel standard Corival
