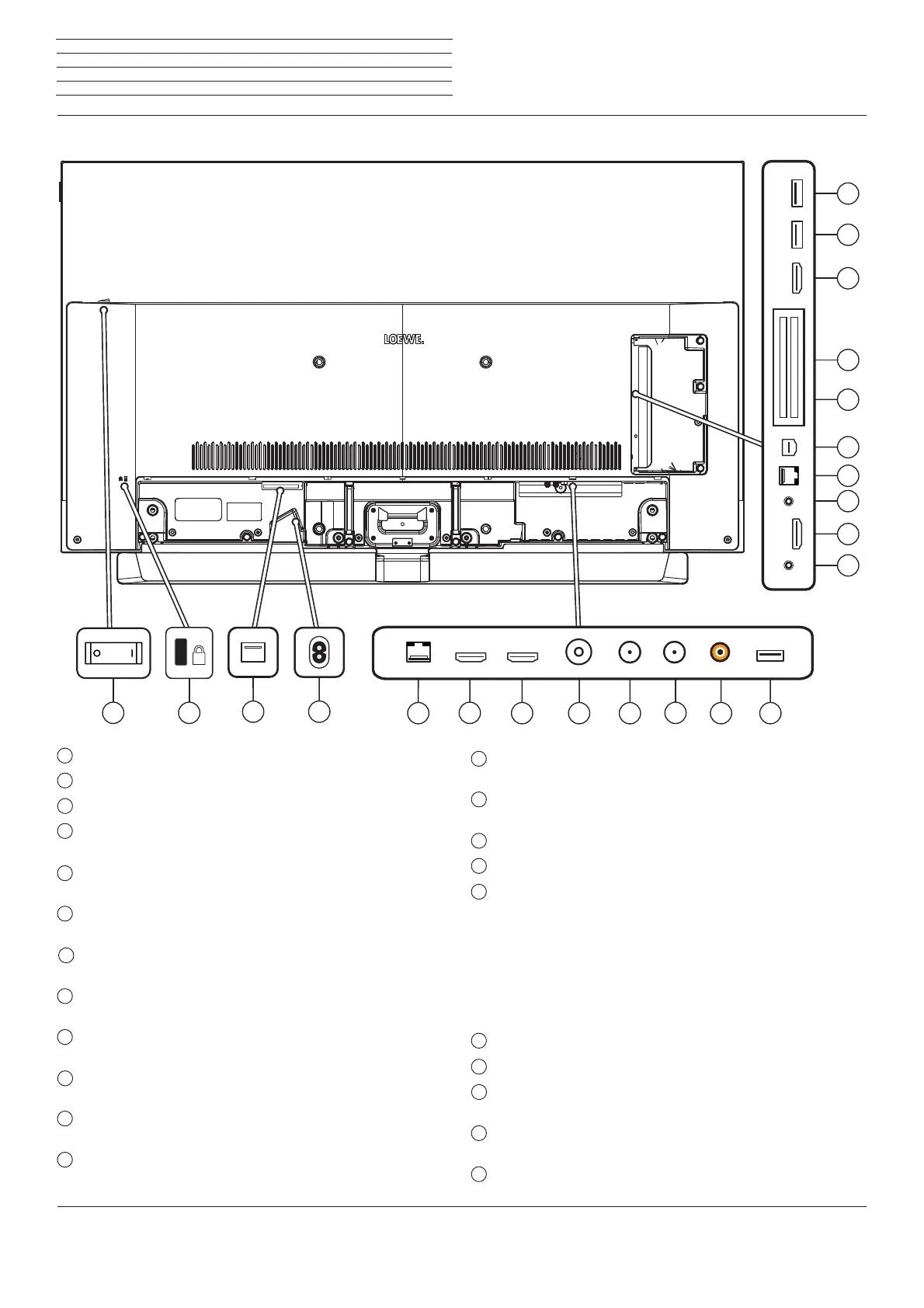

Connections rear side of the device
Position and function of the connections
(1
The adaptor is available as an accessory from your dealer.
(2
HDMI sources that provide UHD AND HDR or Dolby Vision content should be connected to this port.
Mains switch
Slot for Kensington lock
DIGITAL AUDIO LINK - Surround audio outputs (digital) – (RJ45)
4
AC IN - Mains connection
Mains socket – 220-240 V ~ 50 / 60 Hz
5
LAN - Network connection
RJ-45 – Ethernet / Fast Ethernet
6
HDMI 1 ARC - HDMI input 1 (with Audio Return Channel)
HDMI – Digital Video IN (4k@60Hz/4:2:0)/Audio IN/OUT
7
HDMI 2 - HDMI input 2
HDMI – Digital Video IN (4k@60Hz/4:2:0)/Audio IN
8
ANT TV - Antenna/cable analogue / DVB-T/T2 / DVB-C
IEC socket – 75 Ohm / 5 V / 80mA
9
ANT SAT 1 - Satellite antenna (Sat tuner 1) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
10
ANT SAT 2 - Satellite antenna (Sat tuner 2) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
11
SPDIF OUT - Audio output (digital)
Cinch socket (orange)
12
USB 3.0 - USB connection
USB type A – USB 3.0 (max. 900mA)
1
2
3
13
HEADPHONE - Headphone connection
Jack 3,5 mm – Headphones 32–200 Ohm
14
HDMI 3 - HDMI input 3
HDMI – Digital Video IN (4k@60Hz/4:2:0)/Audio IN
15
AUDIO OUT - Audio output (analogue) L/R – ( Jack 3,5 mm)
16
RS-232C - Serial interface
(1
– (RJ12)
17
AV - Micro AV socket
(1
Audio/Video IN with Scart adapter: Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
RGB
L/R
Audio/Video IN with VGA adapter:
PC/STB video signal
PC formats (RGB, H, V)
Component (YPbPr)
L/R
18
COMMON INTERFACE - CI slot 1 (standard V1.3)
19
COMMON INTERFACE - CI slot 2 (standard V1.3)
20
HDMI 4 UHD - HDMI input 4
(2
HDMI – Digital Video IN (4K@60Hz)/Audio IN
21
USB - USB connection
USB type A – USB 2.0 (max. 500mA)
22
USB - USB connection
USB type A – USB 2.0 (max. 500mA)
