Connections rear side of the device Connect 32 DR+
1
Slot for Kensington lock
2
AC IN - Mains connection
Mains socket – 220-240 V ~ 50 / 60 Hz
3
DIGITAL AUDIO LINK - Surround audio outputs (digital) – (RJ45)
4
LAN - Network connection
RJ-45 – Ethernet / Fast Ethernet
5
HDMI 1 ARC - HDMI input 1 (with Audio Return Channel)
HDMI type A 1.4b – Digital Video IN (4K@30Hz)/Audio IN/OUT
6
HDMI 2 - HDMI input 2
HDMI type A 1.4b – Digital Video IN (4K@30Hz)/Audio IN
7
ANT TV - Antenna/cable analogue / DVB-T/T2 / DVB-C/C2
IEC socket – 75 Ohm / 5 V / 80mA
8
ANT SAT 1 - Satellite antenna (Sat tuner 1) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
9
ANT SAT 2 - Satellite antenna (Sat tuner 2) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
10
SPDIF OUT - Audio output (digital)
Cinch socket (orange)
11
USB 3.0 - USB connection
USB type A – USB 3.0 (max. 900mA)
12
HEADPHONE - Headphone connection
Jack 3,5 mm – Headphones 32–200 Ohm
13
HDMI 3 - HDMI input 3
HDMI type A 1.4b– Digital Video IN (4K@30Hz)/Audio IN
14
AUDIO OUT - Audio output (analogue) L/R – ( Jack 3,5 mm)
15
RS-232C - Serial interface
(2
– (RJ12)
16
AV - Micro AV socket
(2
Audio/Video IN with Scart adapter: Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
RGB
L/R
Audio/Video IN with VGA adapter:
PC/STB video signal
Component (YPbPr)
L/R
17
COMMON INTERFACE - CI slot 1 (standard V1.3)
18
COMMON INTERFACE - CI slot 2 (standard V1.3)
19
USB - USB connection
USB type A – USB 2.0 (max. 500mA)
20
USB - USB connection
USB type A – USB 2.0 (max. 500mA)

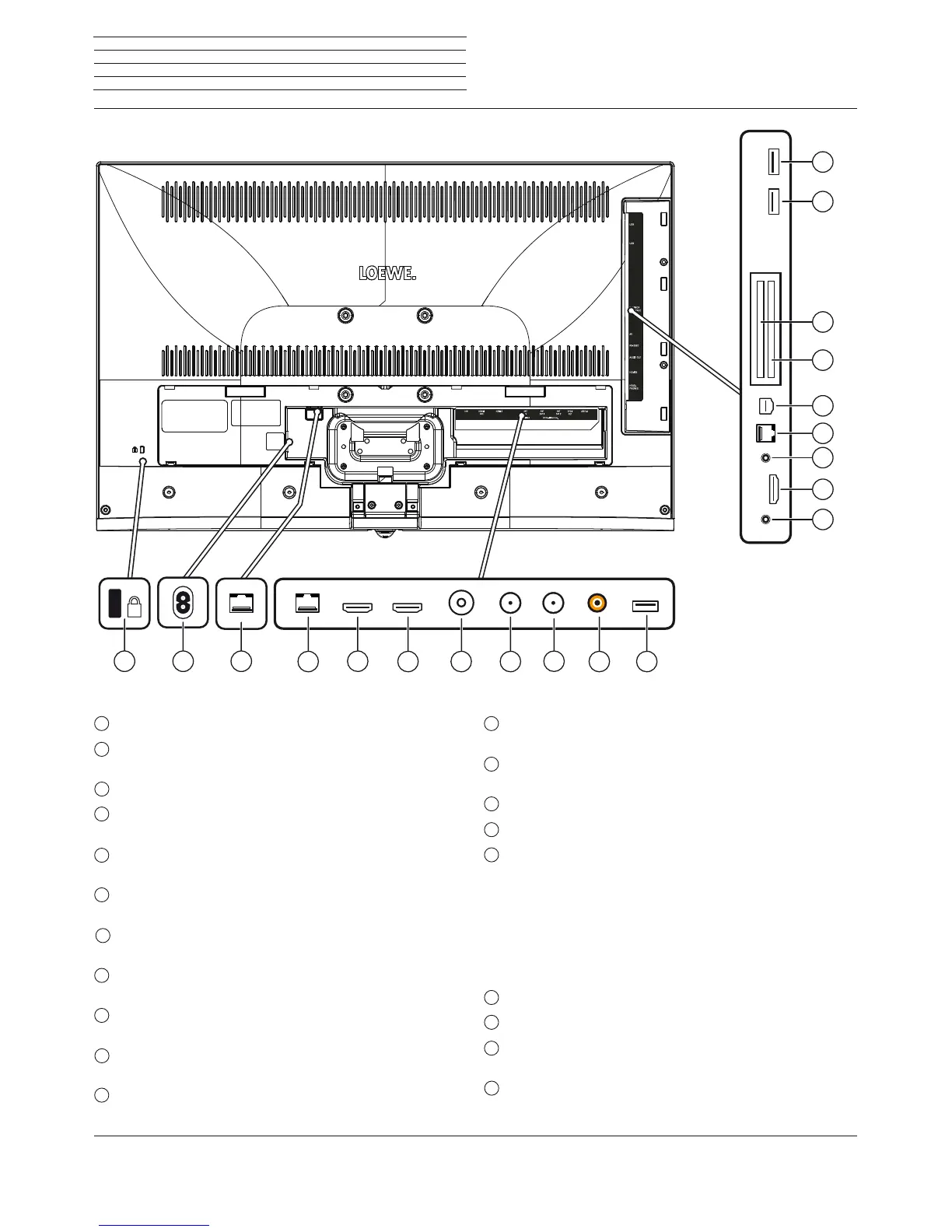

Position and function of the connections Connect 32 DR+
(1
The adaptor is available as an accessory from your dealer.
K
4
5
7
8
14
6
11
18
17
15
16
1
12
13
2 3
9
10
19
20
