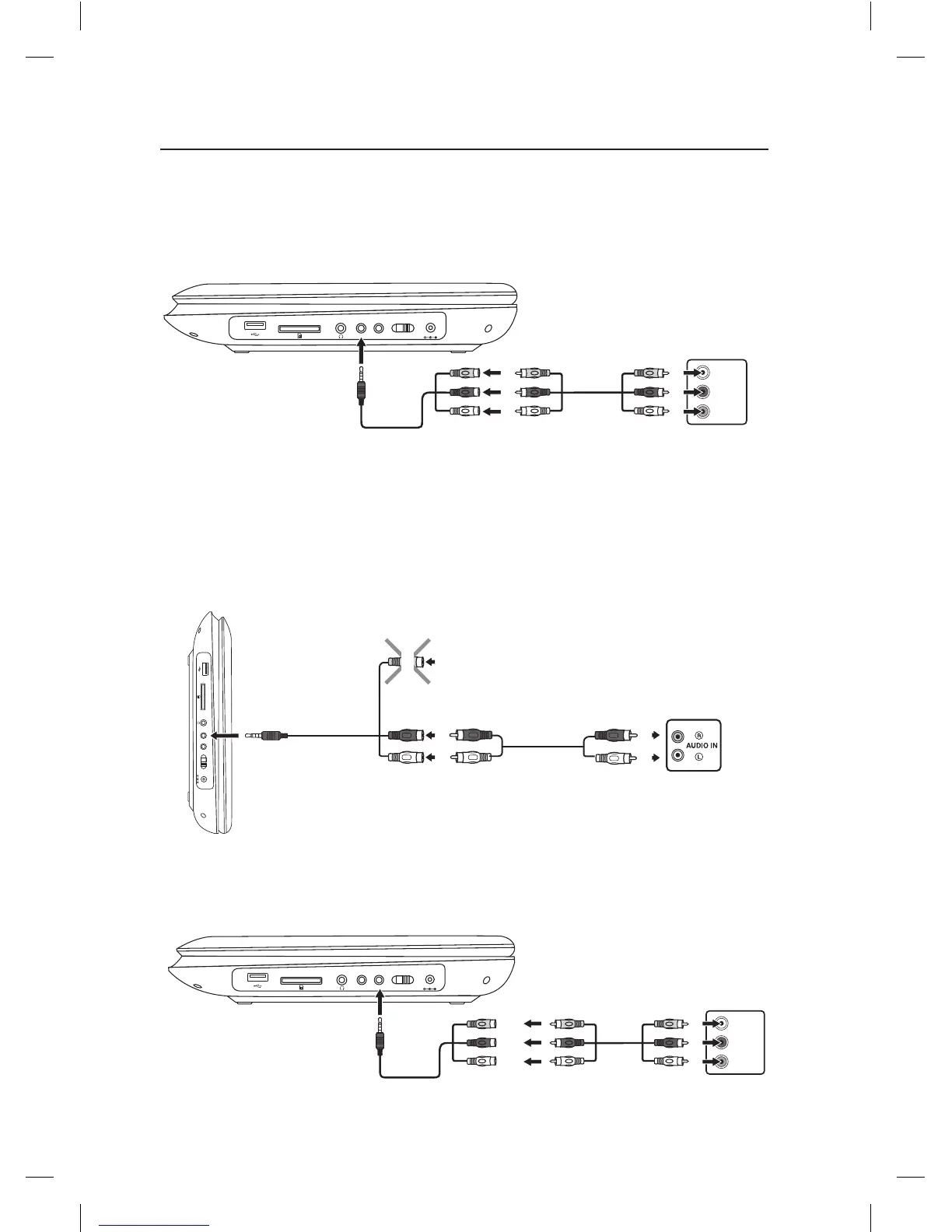

Connections
Connecting to a TV
If your TV has audio/video inputs, you can connect the unit to your TV using a 3.5 mm RCA
AV Cable (not included).
Watching a DVD on your TV
1. Turn on the unit.
2. Turn on the TV and follow the instructions included with your TV to switch it to AV
mode.
Connecting to a Stereo Receiver or Amplier
To AV OUT
Socket
To AV IN Socket
3.5mm to RCA AV Converter
(included)
3.5mm to RCA AV Converter (included)
RCA AV Cable
(not included)
RCA AV Cable
(not included)
L
L
White
White White
Red
Red Red
Yellow
Yellow Yellow
AUDIO IN
AUDIO OUT
R
R
VIDEO IN
VIDEO OUT
DVD Player Right Side
DVD Player Right Side
DVD Player
Right Side
Stereo Receiver
/ Amplier
AV IN
AV OUT ON OFF
DC IN 9-12V
3.5mm to RCA AV
Converter
(included)
RCA stereo
audio Cable
(not included)
Red White
YellowRedWhite
DO NOT CONNECT
To AV OUT
socket
Connecting an external device with Audio/Video Outputs
Connect the unit to an external device (e.g. DVD player) with audio/video outputs by using
the 3.5 mm to RCA AV Converter (included) and a RCA AV cable (not included).
An external device
with AV outputs
