Logitek
3
Physical Installation
Low Profile Meter Bridges
Two sizes of low-profile Meter Bridges are also available, as used on the Mosaic radio console.
These are intended for environments where metering requirements are more basic. The Mosaic
style low-profile bridge does not require PC hardware, and connects directly to the
Artisan.
The Wide Bridge includes one high-resolution stereo program meter, and 6 color LCD screens for
text, clocks and other meters. The Narrow Bridge also includes the high-resolution meter, with two
color LCD screens.
Mounting
¾ Artisan Meter Bridges have mounting brackets that bolt directly to the rear of the console
frame, removing the need for separate mounting holes in the furniture.
Narrow Bridge
¾ 13” W x 3.8” H x 2.6” D (330 mm x 97 mm x 66 mm)
¾ The standard mounting adds 2.4” (61 mm) to the height

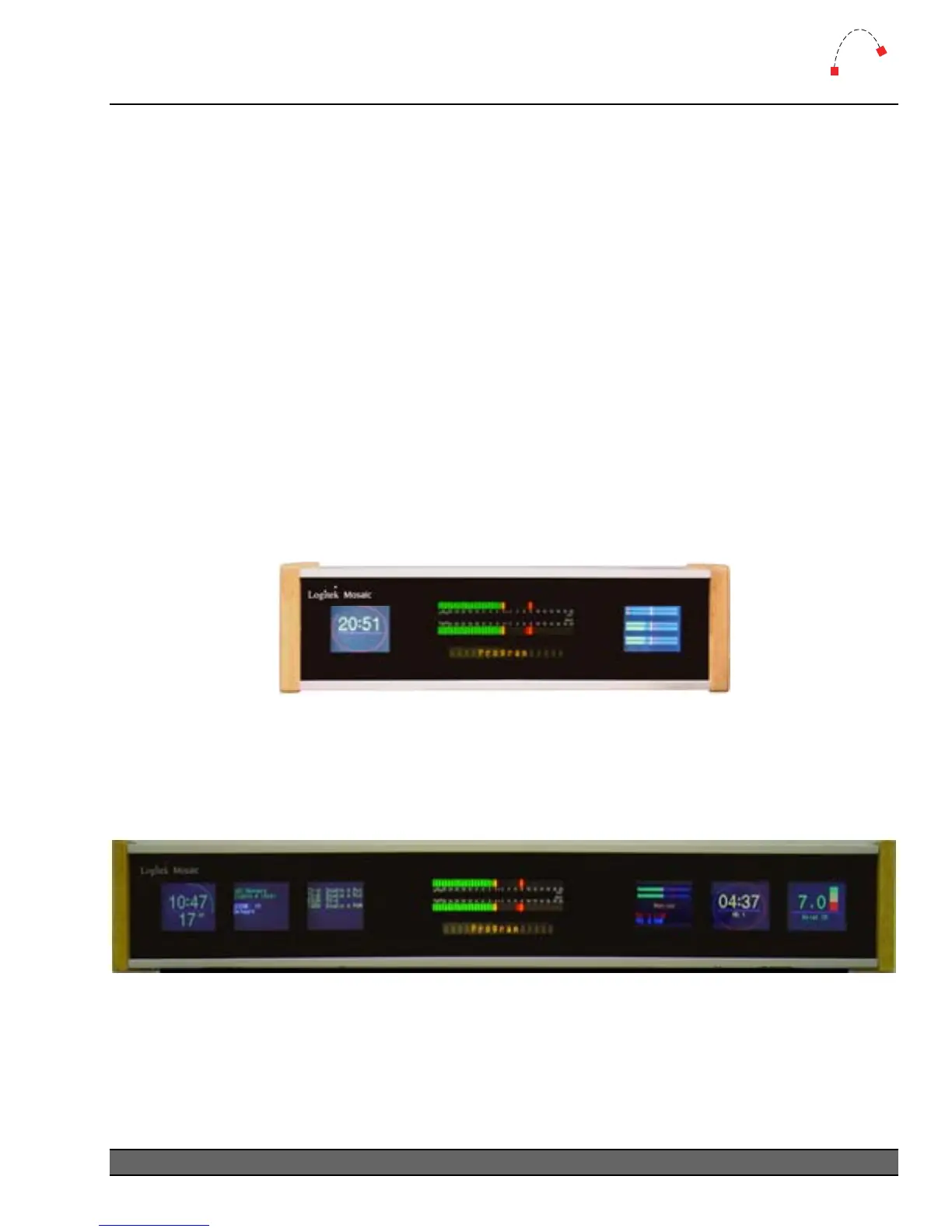

Figure 8 - Narrow Meter Bridge
Wide Bridge
¾ 23.6” W x 3.8” H x 2.6” D (599 mm x 97 mm x 66 mm)
¾ The standard mounting adds 2.4” (61 mm) to the height
Figure 9 - Wide Meter Bridge
Logitek Artisan Reference Manual
15
