Physical Installation
Artisan Cutouts
The Artisan frame should be fitted into a desk, using the cutout sizes below. The height of the
cutout remains the same for each frame size – only the width varies.
MLX-F24
MLX-F24
Cutout
0.25in
6.4mm
0.50in
13mm
0.80in
(20mm)
34.00in
864mm
18.40in
467mm

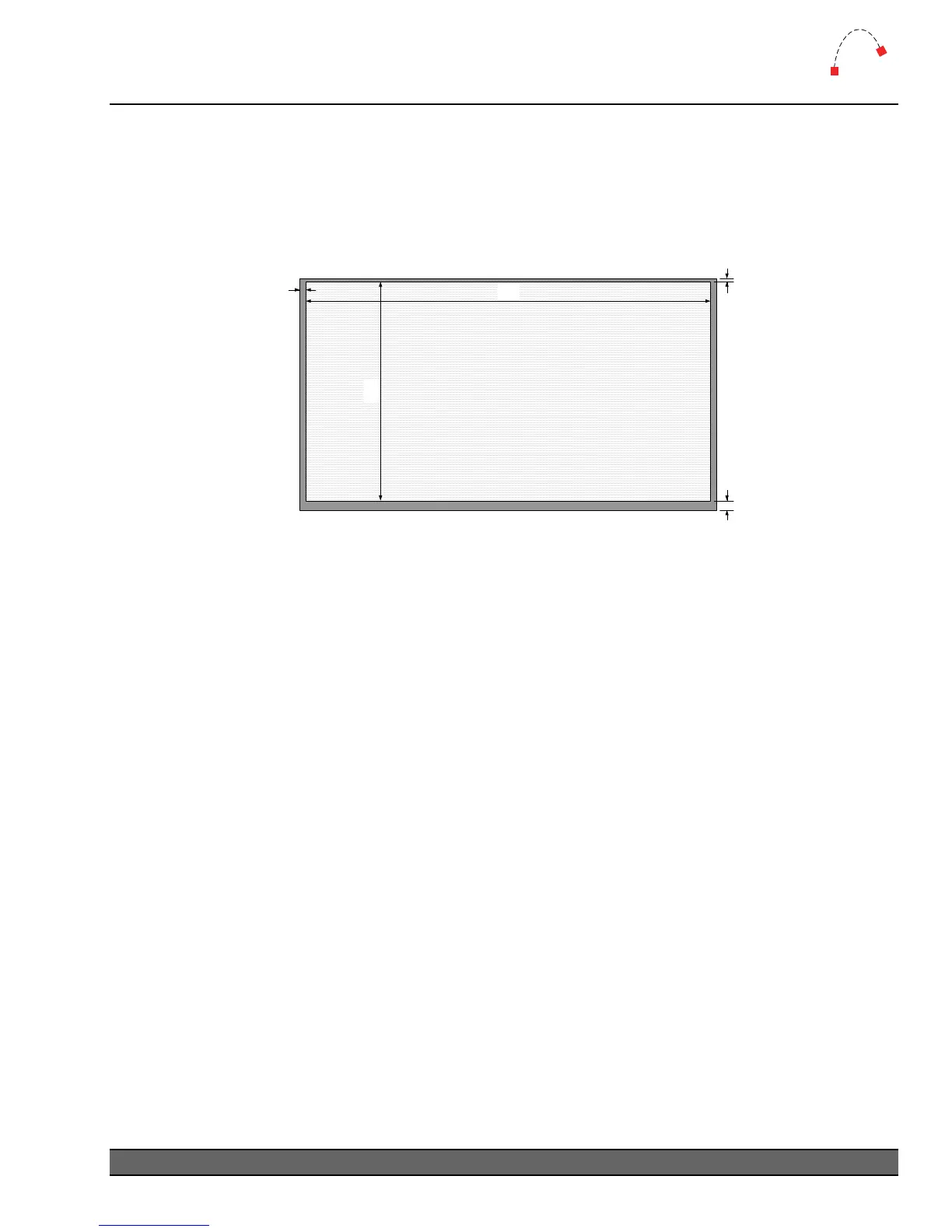

Figure 4 - MLX-F24 Cutout
The MLX-F24 has capacity for 24 units. Suggested configurations include:
¾ Effects / 14 faders / Master / Monitor / Wide Softkey
¾ Effects / 12 faders / Master / Monitor / Wide Softkey / Narrow Softkey / Blank
The required desk cutout for the MLX-F24 is 34.0 x 18.4in / 864 x 467mm.
