Physical Installation
MLX-F32
MLX-F32
Cutout
0.25in
6.4mm
0.50in
13mm
0.80in
(20mm)
45.20in
1148mm
18.40in
467mm

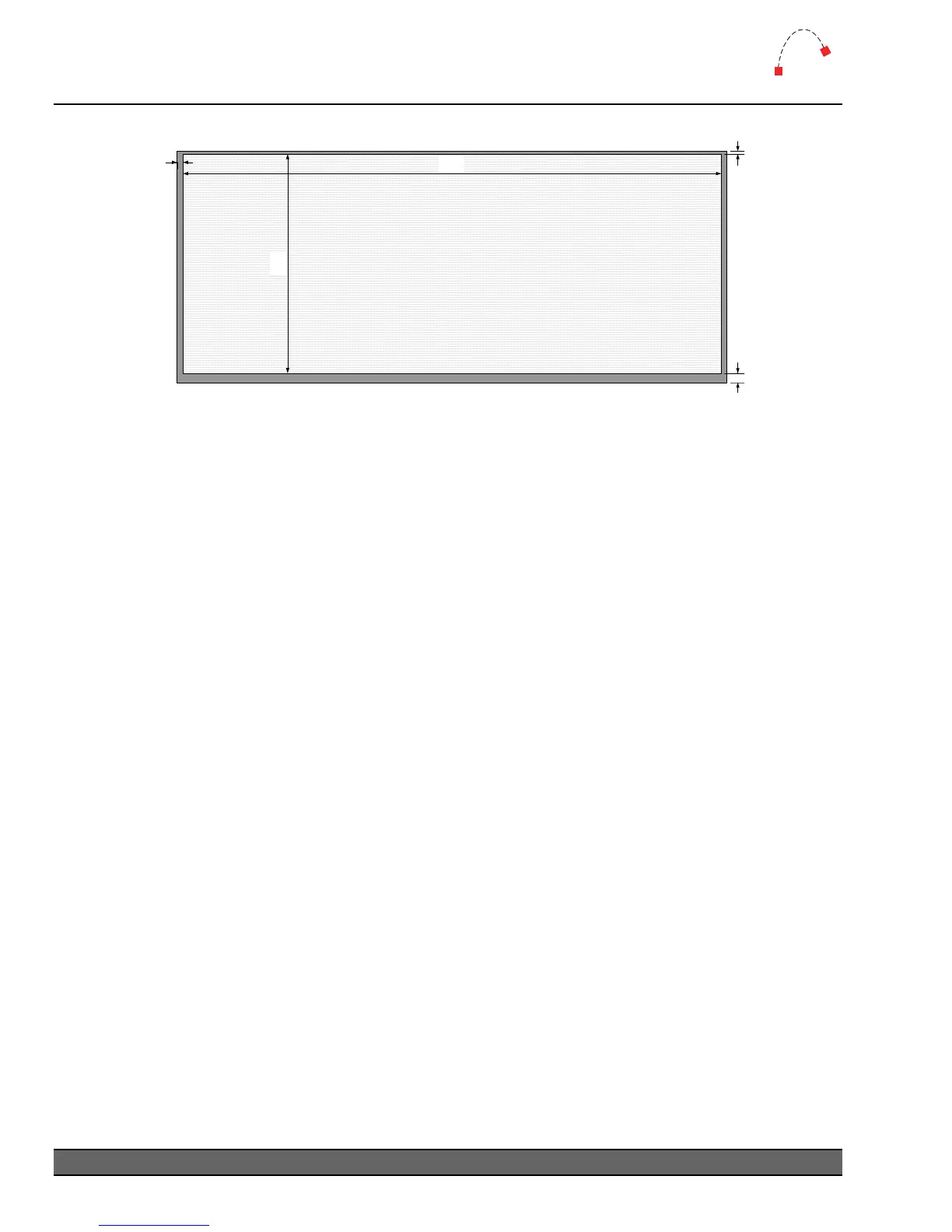

Figure 5 - MLX-F32 Cutout
The MLX-F32 has capacity for 32 units. Suggested configurations include:
¾ Effects / 22 faders / Master / Monitor / Wide Softkey
¾ Narrow Softkey / Effects / 20 faders / Master / Monitor / Wide Softkey / Blank
¾ Blank / Effects / 20 faders / Master / Monitor / Wide Softkey / Blank
The required desk cutout for the MLX-F32 is 45.2 x 18.4in / 1148 x 467mm.
