Physical Installation
MLX-F42
MLX-F42
Cutout
0.25in
6.4mm
0.50in
13mm
0.80in
(20mm)
59.20in
1504mm
18.40in
467mm

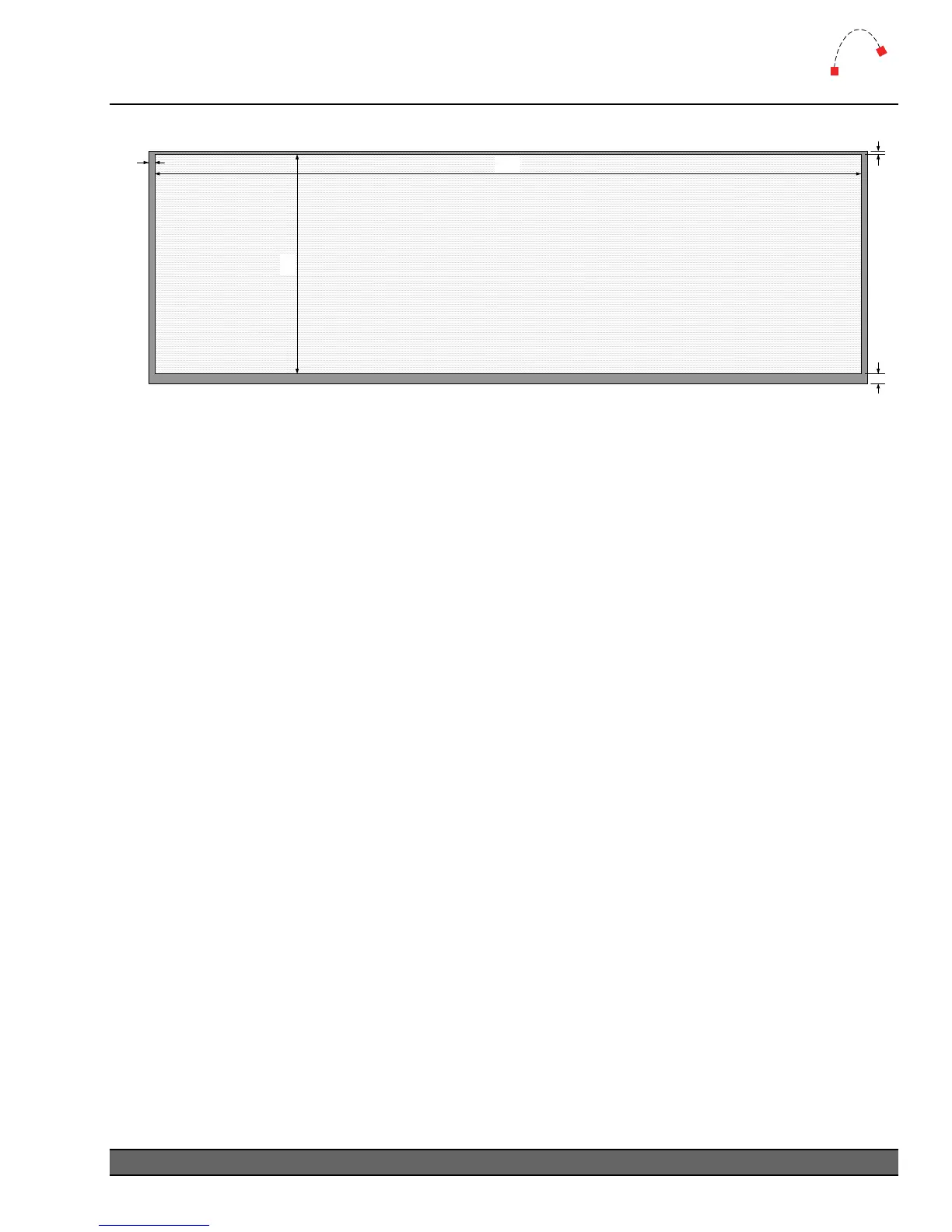

Figure 6 - MLX-F42 Cutout
The MLX-F42 has capacity for 42 units. Suggested configurations include:
¾ Blank / Effects / 30 faders / Master / Monitor / Wide Softkey / Blank
¾ Narrow Softkey / Effects / 30 faders / Master / Monitor / Wide Softkey / Blank
¾ Blank / Effects / 30 faders / Master / Monitor / Wide Softkey / Blank
The required desk cutout for the MLX-F42 is 59.2 x 18.4in / 1504 x 467mm.
