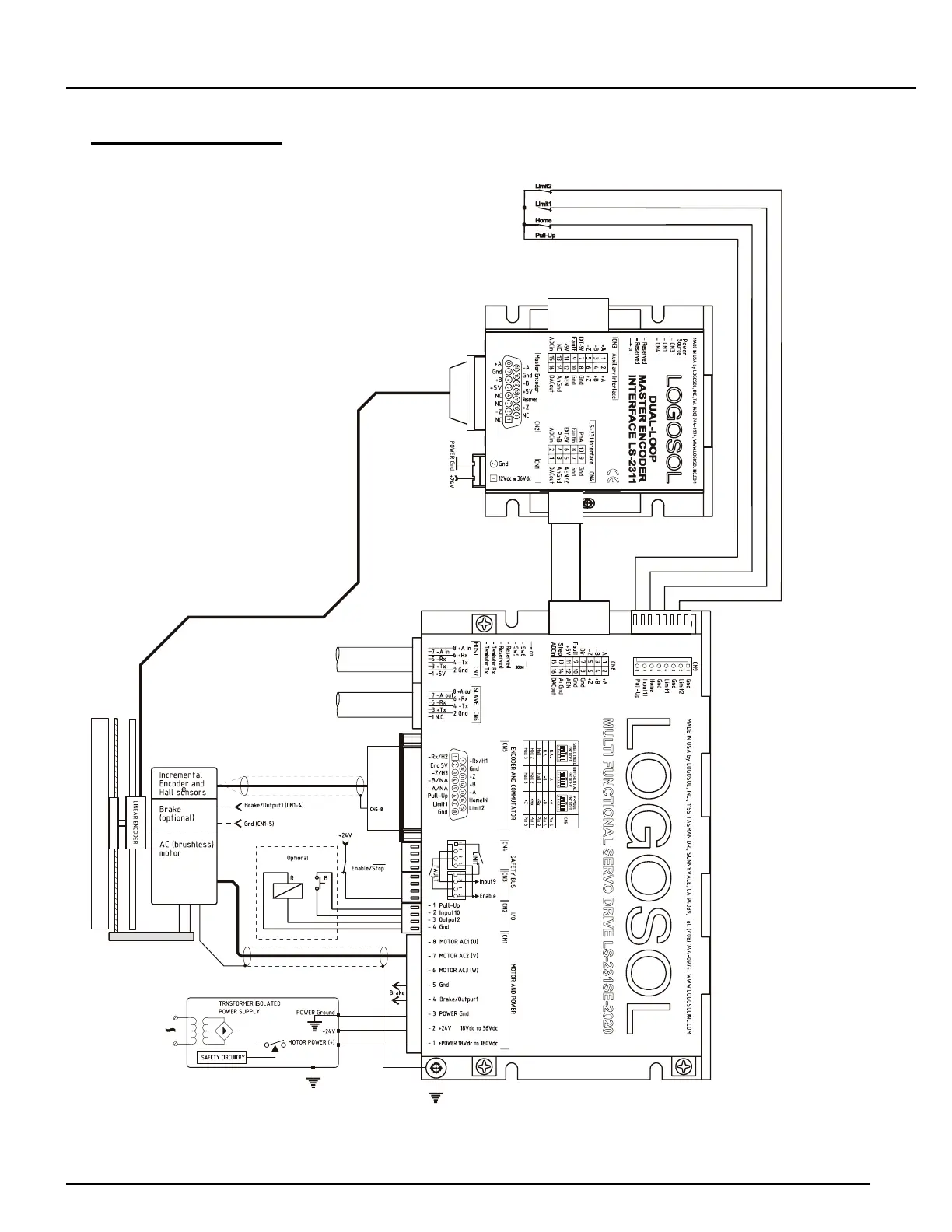

SAMPLE APPLICATION
- LDCN Dual-Loop mode using AC (brushless) motor
Home switch and limit switches are connected to CN8.
CN5-8
NETWORK HOST
Enable/Stop
+24V
B
R
NETWORK SLAVE
Optional
Incremental
Encoder
Brake/Output1 (CN1-4)
Brake
(optional)
Gnd (CN1-5)
AC (brushless)
motor
CN9
Limit2
Home
Limit1
Pull-Up
