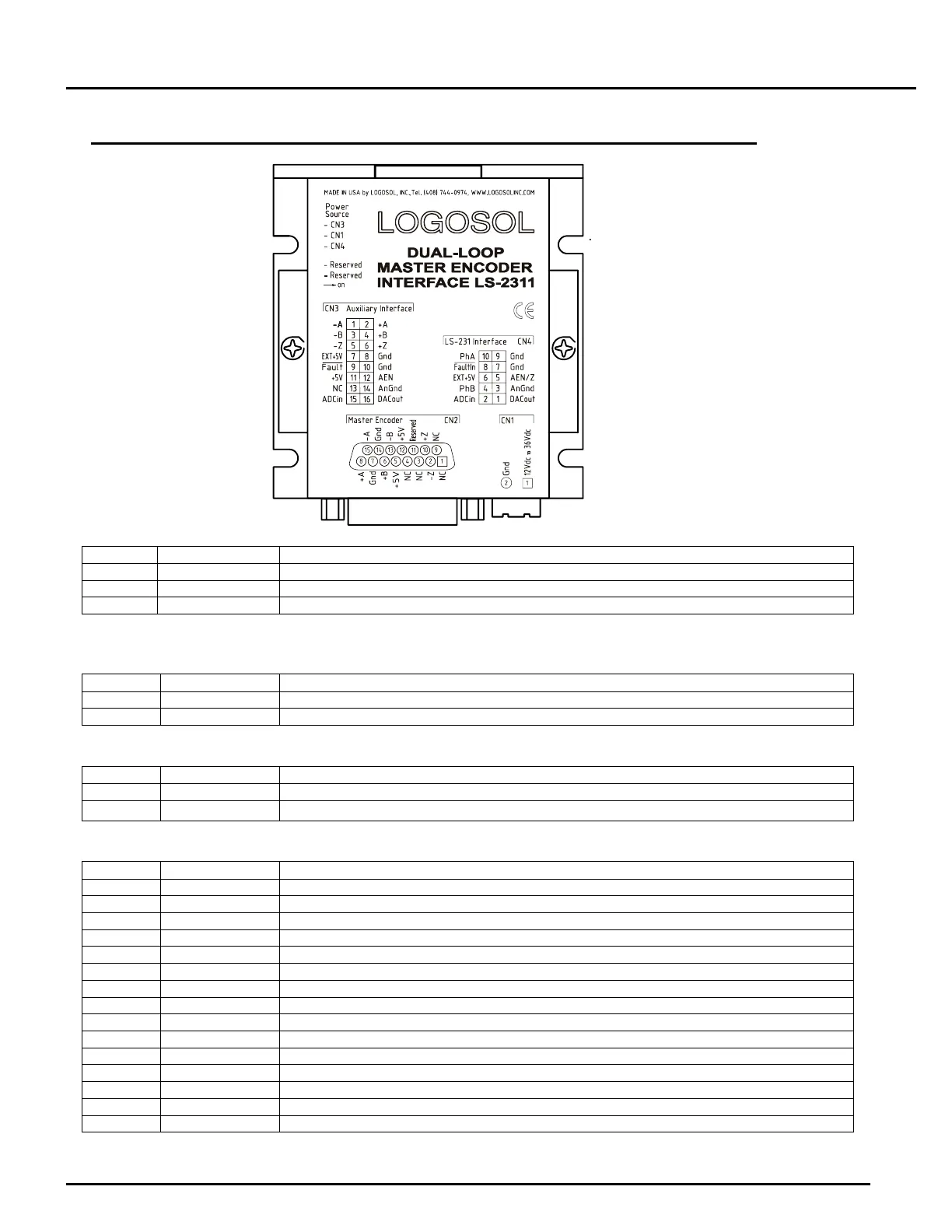

DUAL-LOOP MASTER ENCODER INTERFACE LS-2311 CONECTORS AND PINOUT
JUMPERS
JUMPER NAME DESCRIPTION
1 CN4 EXT +5V Power supply from CN4pin11
2 CN1 Internal power supply. 12Vdc to 36Vdc power supply from CN1pin1
3 CN3 EXT +5V Power supply from CN3pin7
Note: Only one JUMPER must be shorted.
DIP SWITCHES
SWITCH NAME DESCRIPTION
1 Reserved Reserved must be OFF
2 Reserved Reserved must be OFF
CN1
PIN SIGNAL DESCRIPTION
1 12Vdc to 36Vdc Power supply input. If Power source jumper CN1 is installed
2 Gnd Power supply ground
CN2 – Master Encoder
PIN SIGNAL DESCRIPTION
1 NC Not connected
2 -Z Encoder phase –Z
3 NC Not connected
4 NC Not connected
5 +5V Encoder power supply
6 +B Encoder phase +B
7 Gnd Power supply ground
8 +A Encoder phase +A
9 NC Not connected
10 +Z Encoder phase +Z
11 Reserved Reserved - DO NOT CONNECT
12 +5V Encoder power supply
13 -B Encoder phase –B
14 Gnd Power supply ground
15 -A Encoder phase –A
