5.3 Changing the Pulley rope
Splicing of the rope is shown below (Figure 9).
Slide the rope through the right height adjustment wheel.
Slip it then downwards and round the lower adjustment wheel so that the rope comes
out from behind of the wheel.
Pull the rope then all the way up and slide it through the little hole and over the wheel
so that the rope comes out from behind of the wheel.
Draw the rope behind the first upper wheel, and then sequentially round every wheel
(down – up – down …) according to the pictures.
Change the last circle so that the rope goes behind the last upper wheel and comes out
from the front of the wheel.
Slip the rope then through the left adjustment wheel.

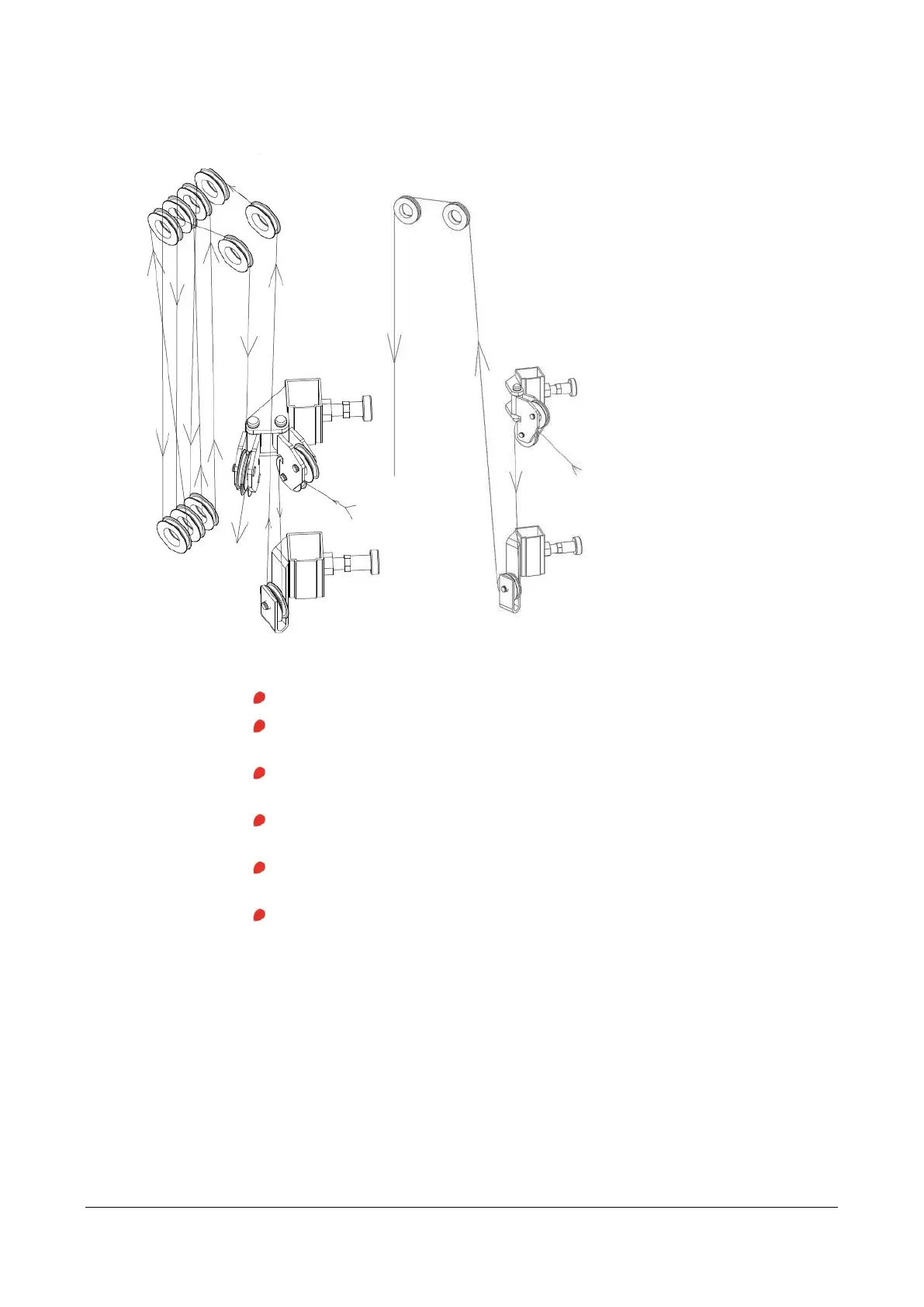

Figure 9: Splicing of the rope (Speed Pulley on the left)
