5.4 Splicing the rope of the Vertical Pull
Splicing the rope to lower adjusting wheel:
Attach the rope to the weight stack.
Splice the rope.
Turn the adjustment roll down so, that the yellow triangle sticker is on the bottom of the roll (Figure 10a).
When changing the rope, make sure that the rope attached correctly (picture). The rope must be spliced crosswise
(Figure 10b).
5.5 Spare parts
To order spare parts contact the Lojer service. Before contacting the service, find out the following information from
the type plate of the device.
Name, model and the serial number of the device
Date of purchase
Description of the problem
Most common spare parts are shown below.
Rope Lojer Vertical Pulley
Weight stack fork Pulley, small
Weight stack fork LMF, big
Adjusting knob GN 817, yellow
Adjusting knob GN 817, yellow, self-locking

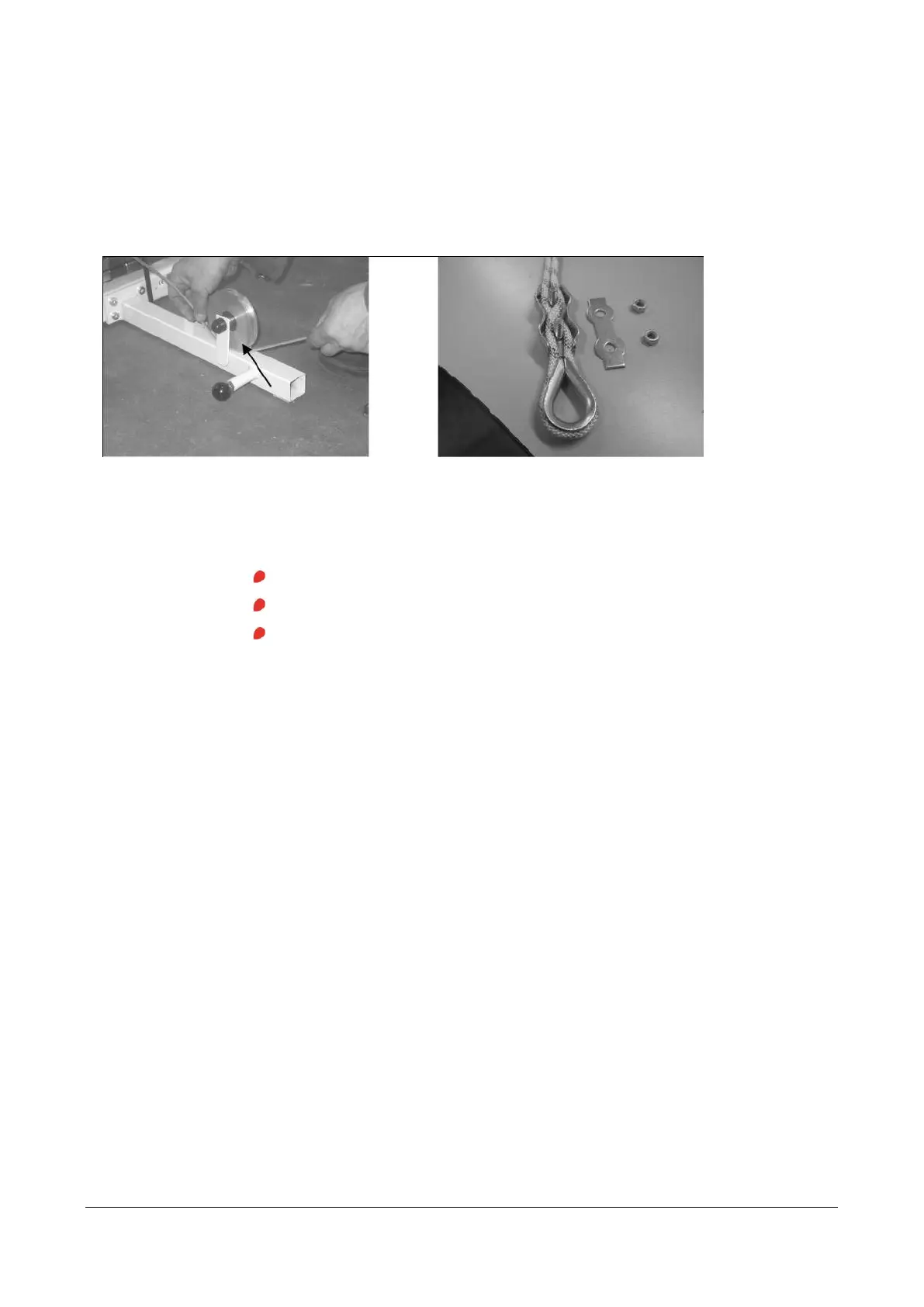

Figure 10: a) Triangle sticker downwards b) Locking the rope
