CHAPTER III MACHINE OPERATION
30
2.5.3 THE WORKING DEVICE
2.5.3.1 The working device of the loader is mainly made up of the lift arm, the bucket base and the
bucket. See the Figure 7.

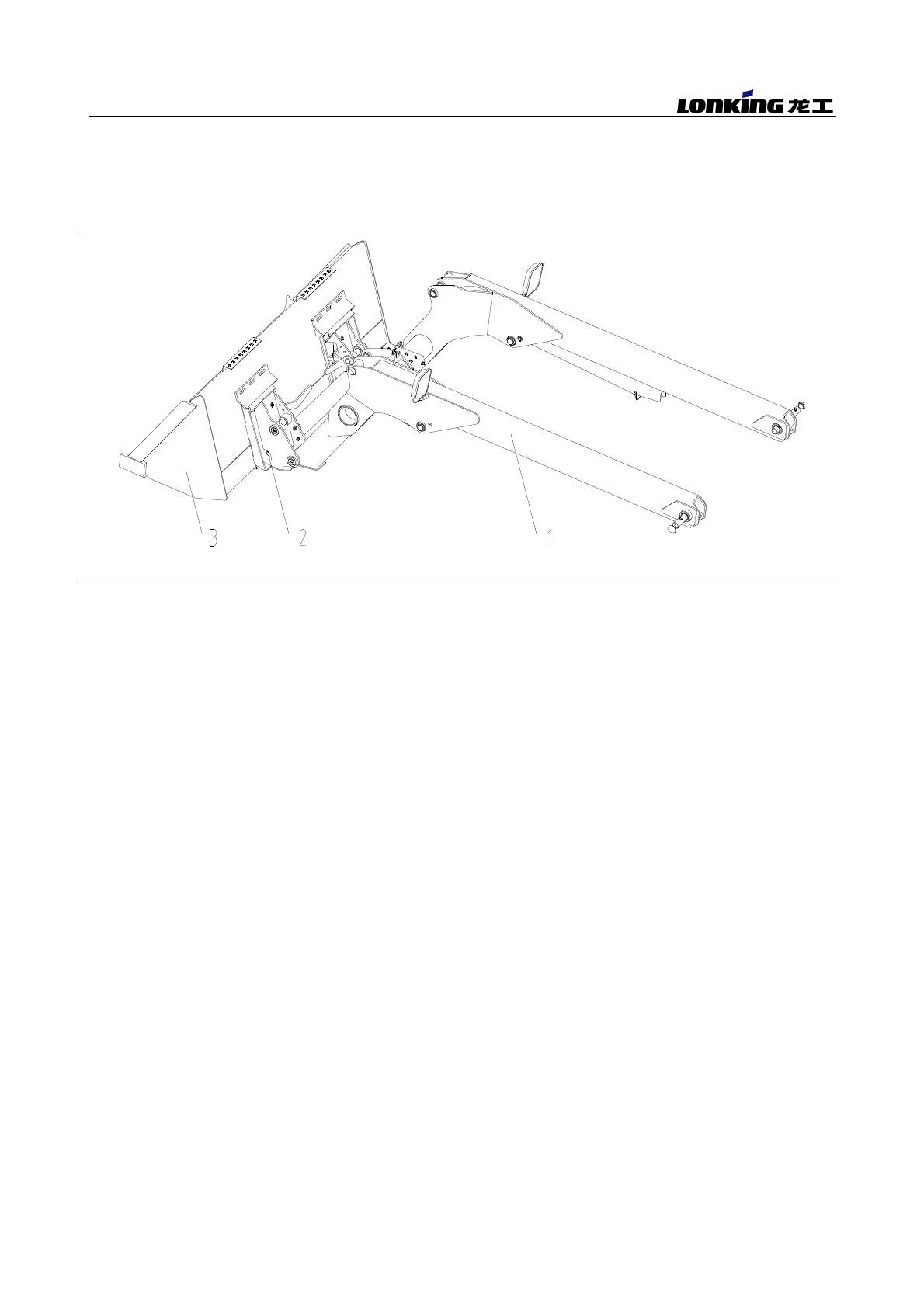

Figure7 WORKING DEVICE
1. LIFT ARM 2. BUCKET SEAT 3. BUCKET
