CDM816D WHEEL LOADER
7

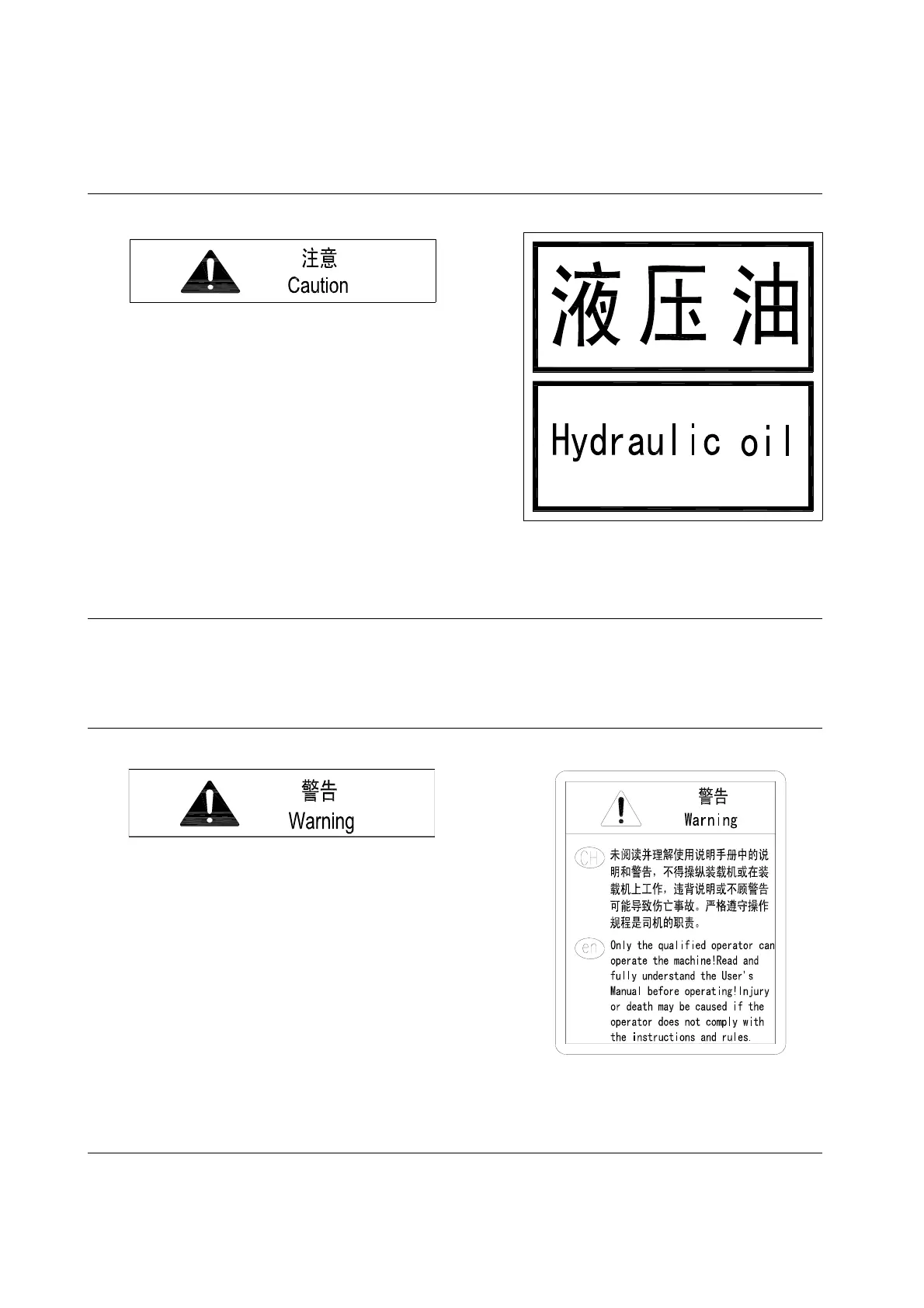

Label for hydraulic oil (3)
Label location: near the round dipstick of left hydraulic oil tank in the forward direction of overall unit.
Refill with the hydraulic oil in time to avoid loader stop;
incorrect oil filling may disenable or even damage the
machine.
Fig. 3-3
Label for user warning (4)
Label location: left rear of cab seat
Always operate the machine as per the label;
otherwise, machine damage or personal injuries may
be caused.
Fig. 3-4
