Operation Manual
30
Chapter III Operation
I. Control mechanism and instrument
1. Hand brake 2. Control lever of tilt cylinder
3. Control level of boom cylinder 4. Steering lamp/ headlamp/ instrument lamp
switch
5. Ignition start switch 6. Flameout cable
7. Accelerator pedal 8. Rear working lamp switch
9. Fan switch 10. Steering indicator lamp
11. Instrument (engine oil pressure gauge, water temperature gauge, torque converter oil temperature
gauge, transmission oil pressure gauge, barometer, hour meter, and ammeter)
12. Instrument panel frame 13. Parking warning switch
14. Ceiling lamp switch 15. Foot brake pedal
16. Forward/ backward control lever 17. High/low speed control lever
18. Wiper switch 19. Horn button
20. Steering wheel 21. Fuse box
22. Driver’s seat

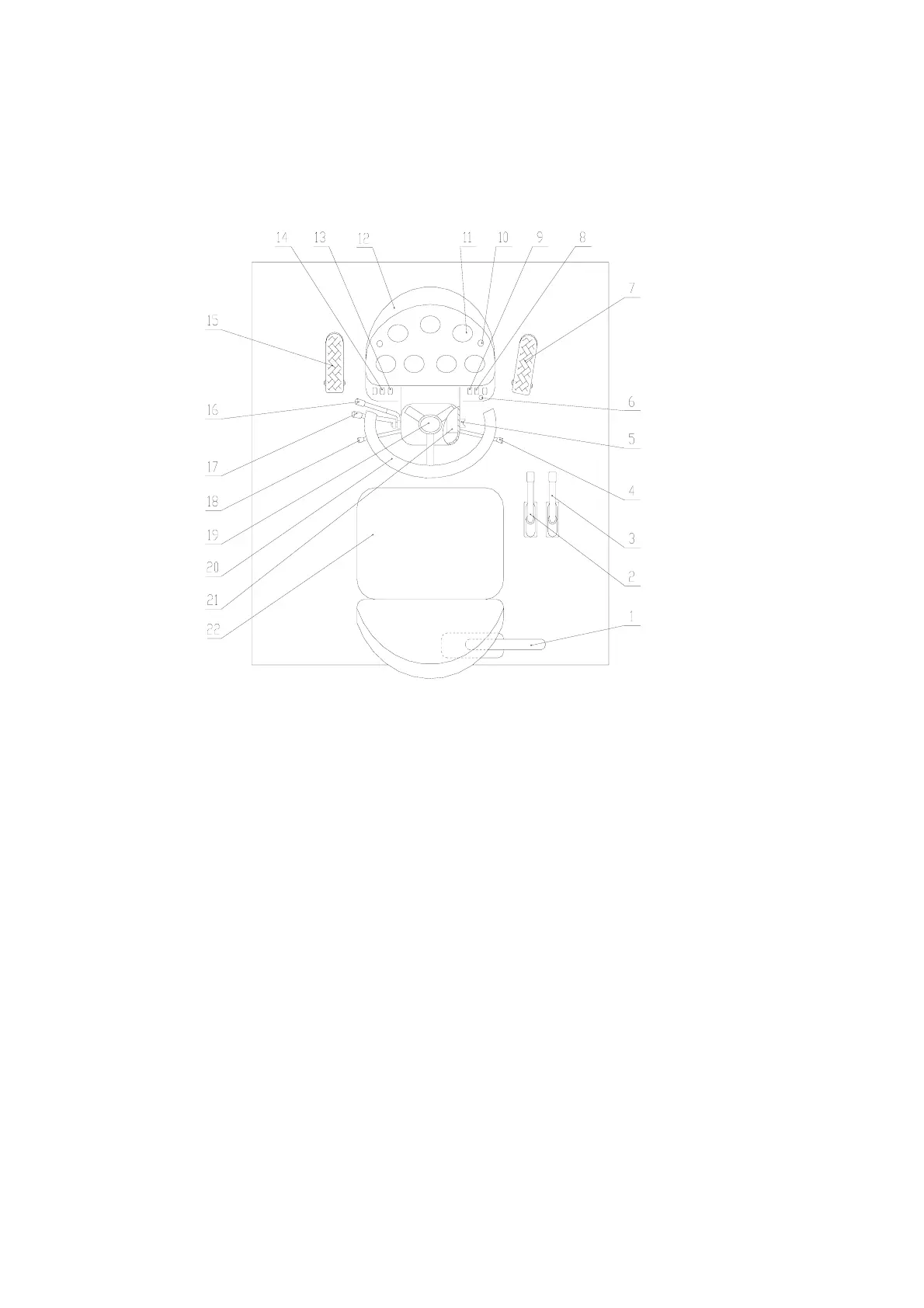

Fig. 2-1 Control mechanism and instrument
