Operation Manual
80

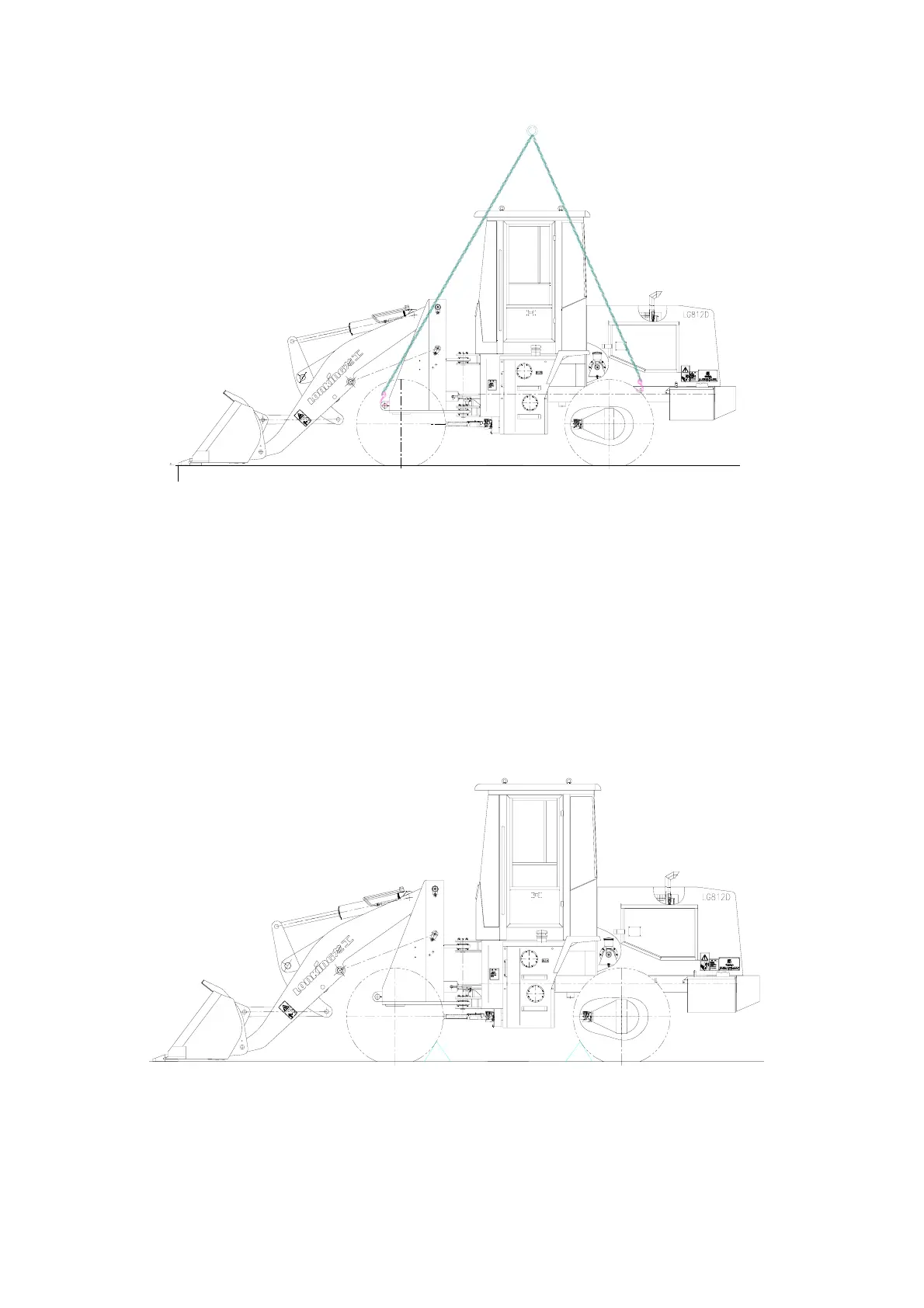

Fig. 5-1
II. Fixing of loader in transportation
When a flat car or similar transportation facility is applied for loader transportation, it is required to fix
the chassis of the loader with iron chain so as to prevent it from shaking and bouncing; it is necessary
to fasten the fixing rods of the front and rear frames, fix the front and rear wheels with angle steel, and
then tie up with steel wire to prevent the machine from moving back and forth on t he flat car.
The transportation of the complete machine shall comply with the related regulations of relevant traffic
and transportation authority; unless in special cases, do not remove the loader components during the
transportation.(See Fig. 5-2)
Fig. 5-2
