CDM816D WHEEL LOADER
39

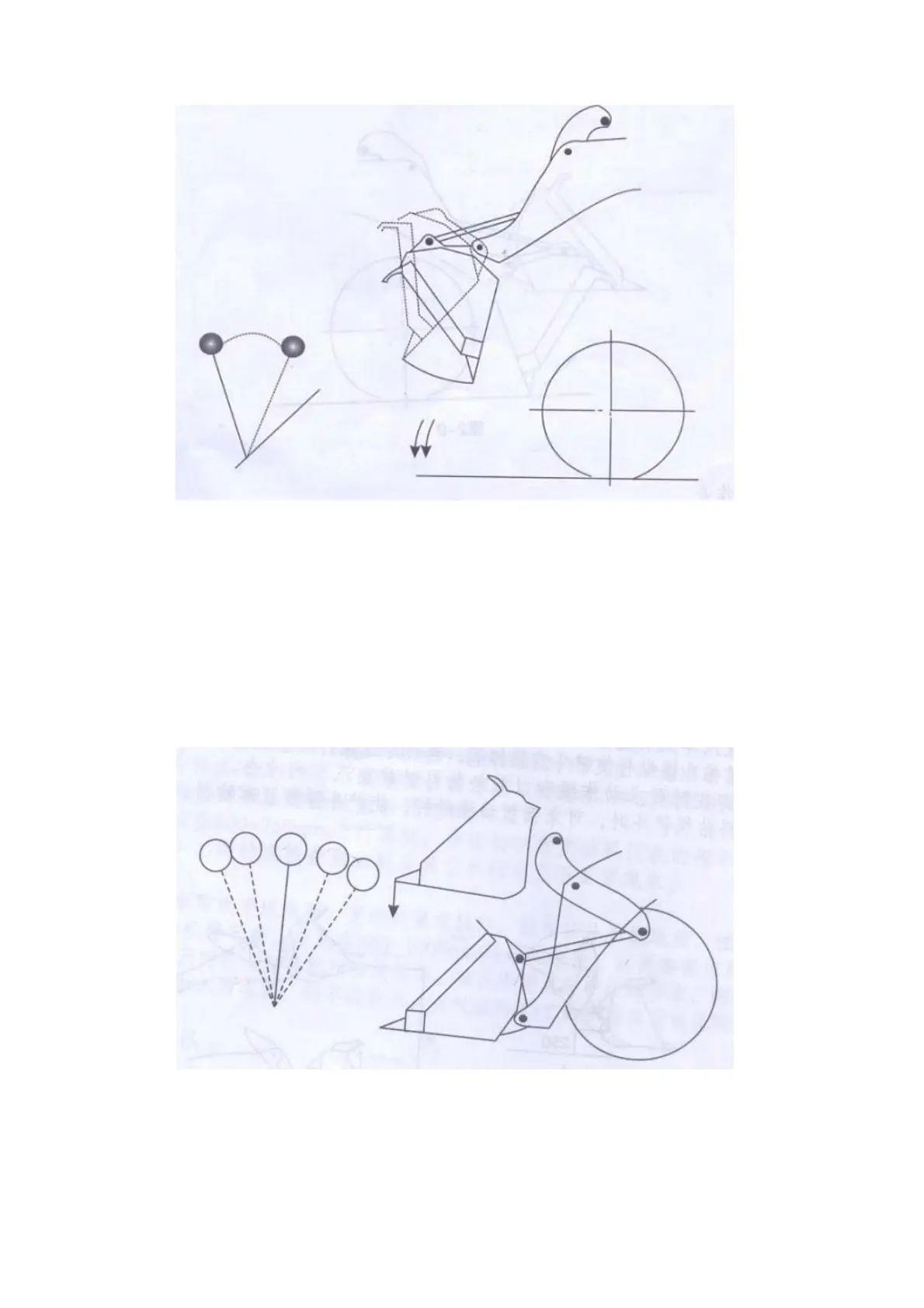

Fig. 2-6
(5) Push-transportation
① Make the bucket press closely against the ground.
② Depress the throttle to move ahead, and if the loader is found to be hindered by obstacles, slightly
lift the boom and move on. When lifting or lowering the boom, the control lever shall be between the
lowering and lifting positions but not at the lifting or lowering position, to ensure the smooth operation,
as shown in Fig.2-7:
Fig. 2-7
(6) Scraping
① Turn over the bucket to the end to make the scraper touch the ground.
