CDM816D WHEEL LOADER
5
1.3.3 “Caution” refers to the existence of potential
dangers, which may cause light or medium injury if not
avoided.
Fig. 2
1.3.4 "Danger" or "Warning" safety labels are set near the specific hazard areas. For the
conventional safety protections, see "Caution" labels.
1.3.5 Some safety labels include the words not mentioned above after the safety warning marks
have been used on the machine.

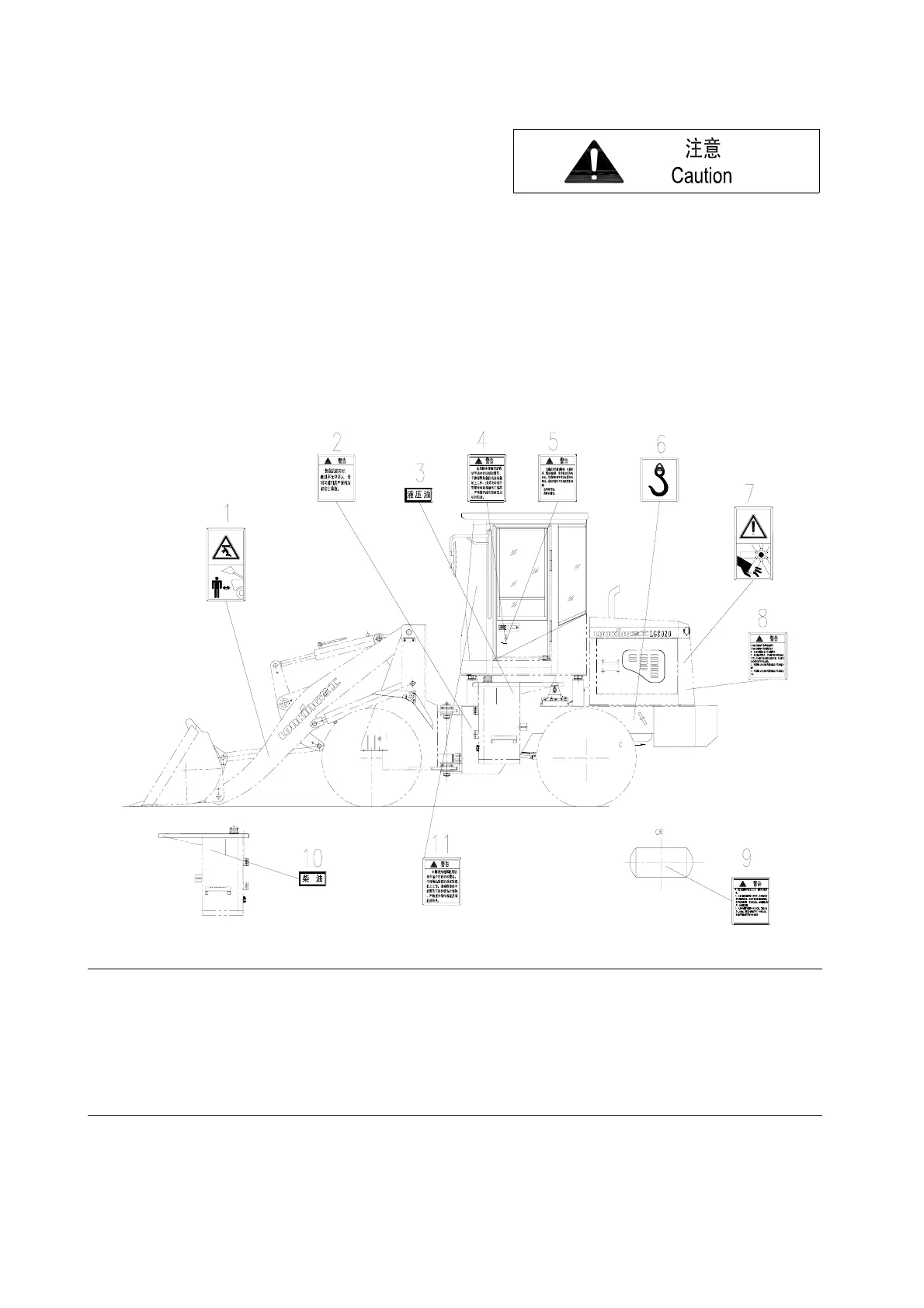

1.4 Schematic diagram for layout of safety l abels and additional labels
Fig. 3
Warning label for boom (1)
Location: outside the left plate of boom
Location of fuel tank
label
