Baffle Removal & Replacement
The baffle is held up by the front air tube. Make sure to support the baffle after removing the air tubes.
 Remove the middle air tube
 Remove the stainless steel baffle cap by lifting up the front of the baffle ½” and slide the steel cap
forward until it is disengaged from the baffle.
 Unfasten the front air tube and support the front of the baffle while you remove the air tube.
 Gently tip the baffle down and remove the flat steel plate from the top of the baffle blanket. This plate
adds protection to the baffle under the flue collar.
 Gently slide the baffle and blanket forward off of the rear tube. Fold the sides of the blanket edges
over towards the center of the baffle and remove from the unit all together. You may need to tip it at
an angle to get it through the door opening.

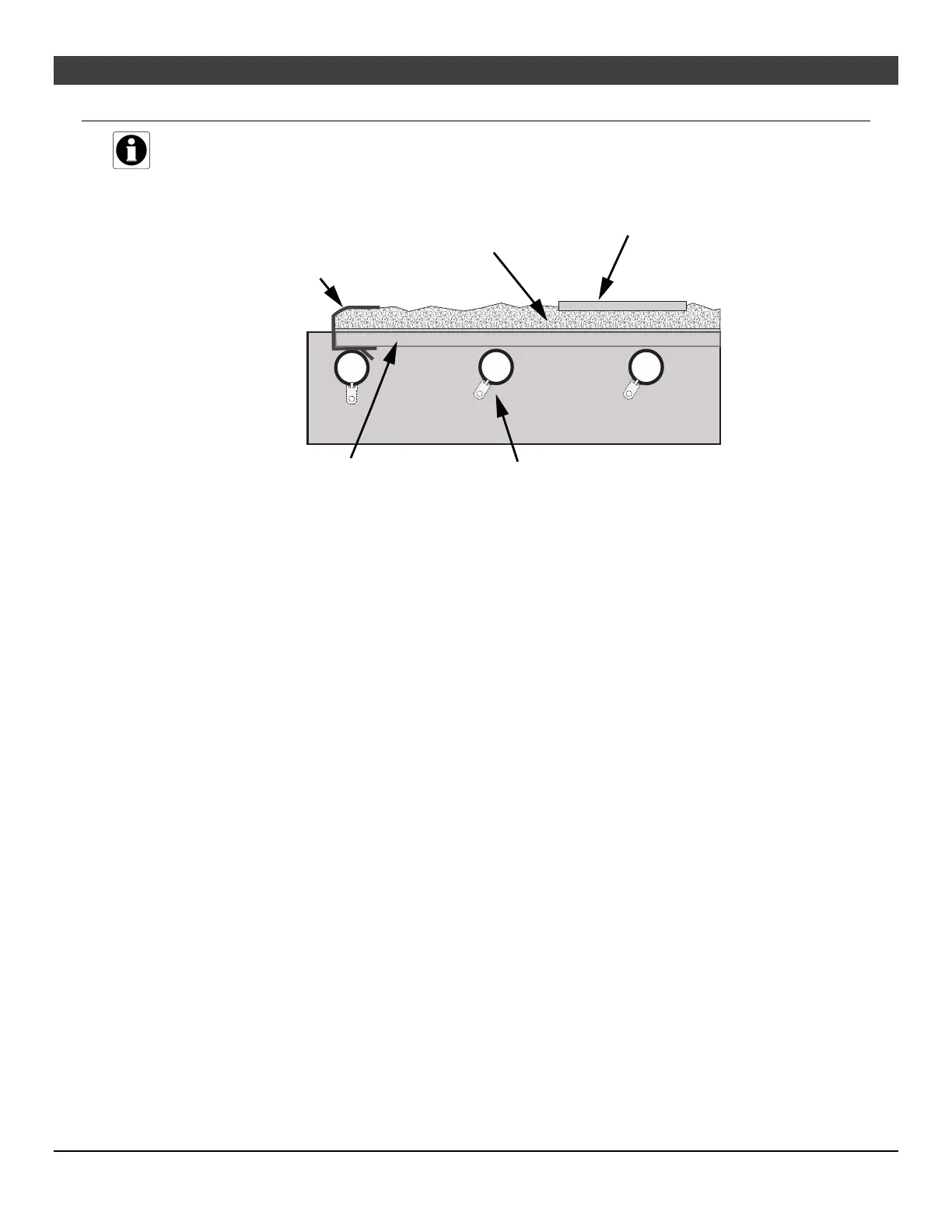

Ceramic Fiber
Blanket
Blanket
Weight
Baffle Boar
d
Baffle
Cap
A
ir Tube & Pi
n
IDB1148
