page 30
Pc-Board DC04
The pc-board DC04 is the secondary board for wiring the secondary diodes at the MicorMIG 500.
Functions
- wiring secondary diodes
- connecting resonance capacitors
- providing output voltage for measuring
Measuring points
designation measuring
point
result
output voltage X2-5
X2-1
+
-
+80V DC*
*only at machines with no VRD, at machines with activated VRD, the VRD voltage is measured.

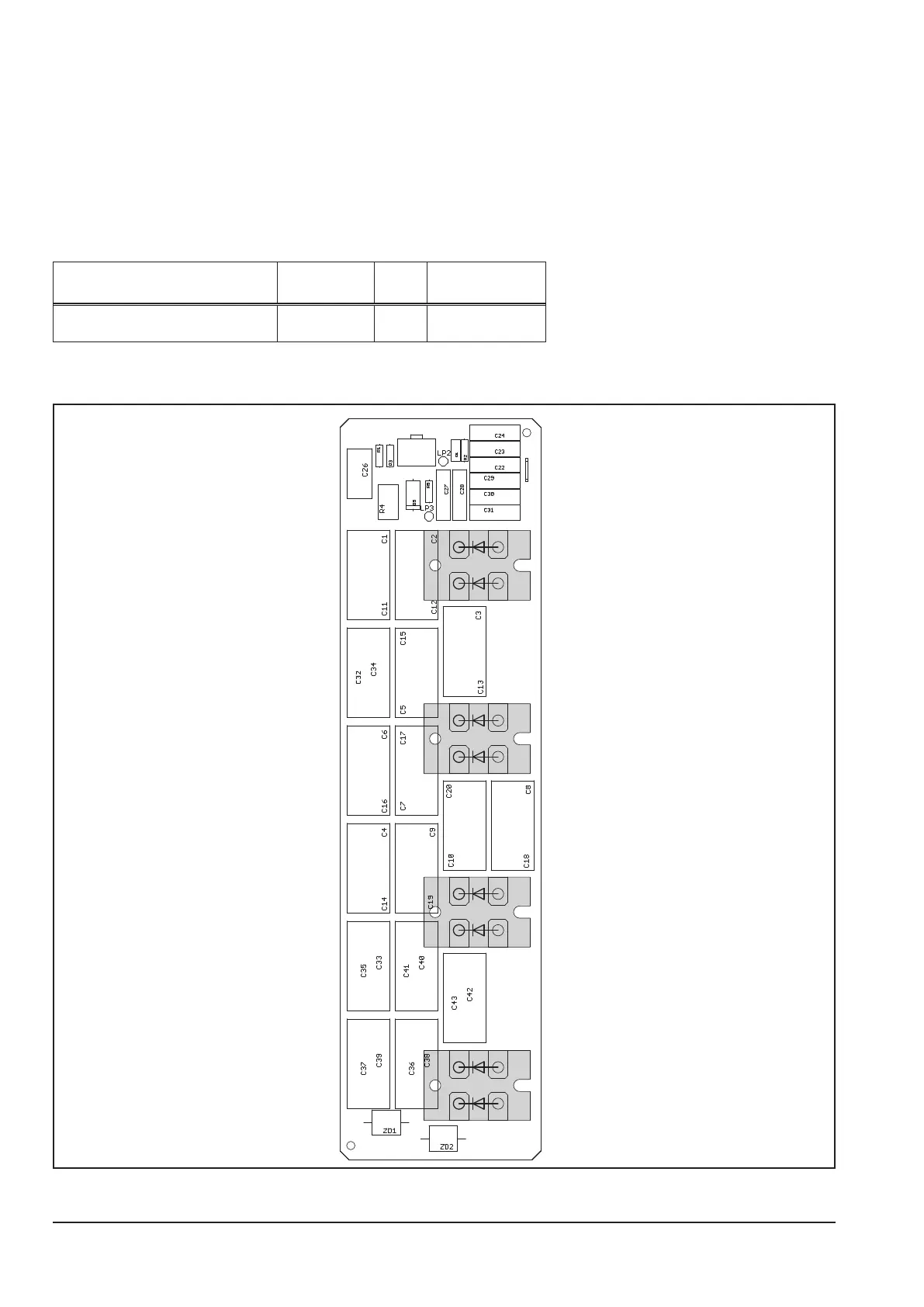

Picture pc-board DC04
D9
D8
D7
X2
D6
X1
