Wireless Receiver
2. Wireless Receiver
1
2
3

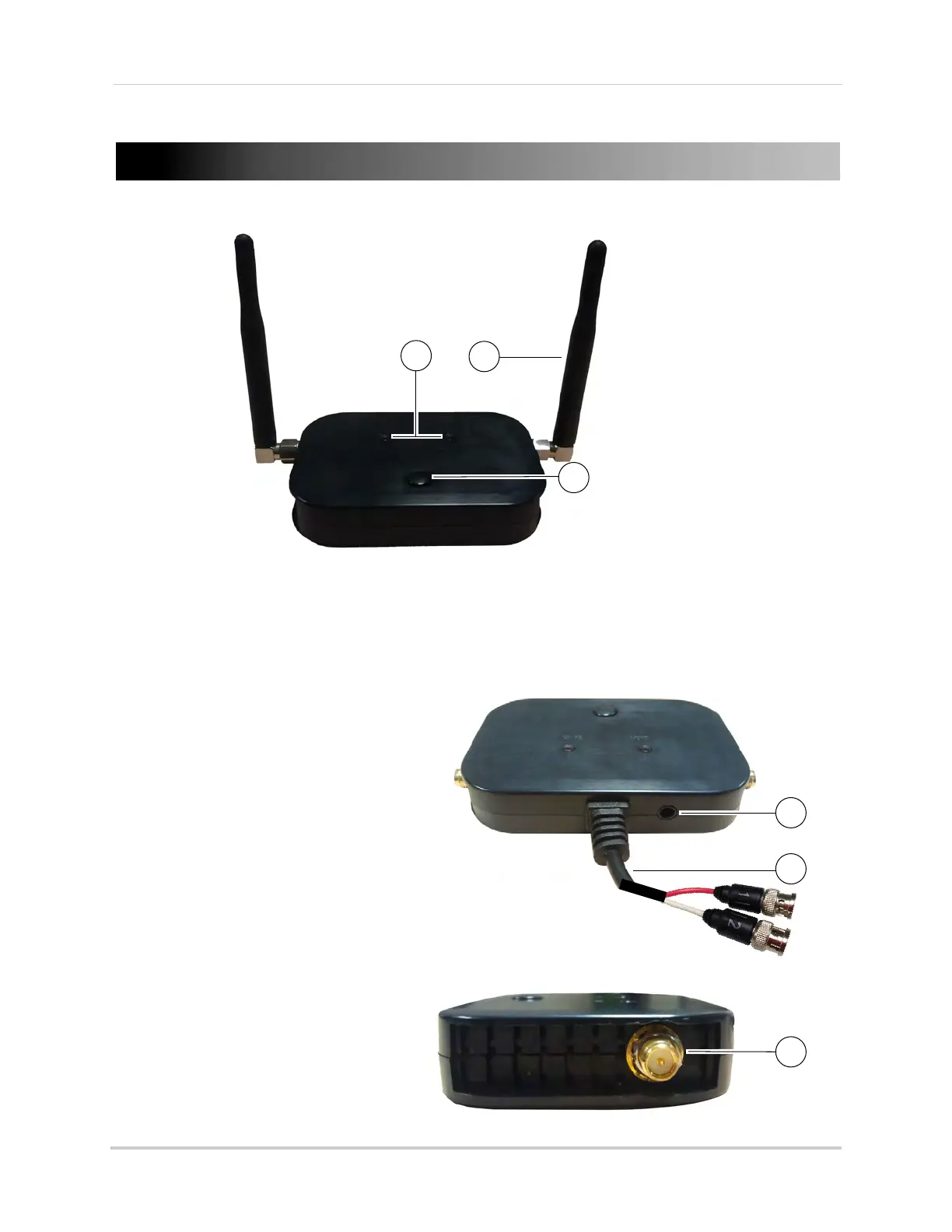

1 Removable Antennas (SMA Type): Pre-attached to the receiver.
2 Channel Indicator LEDs: Glow green to indicate which channel is selected for pairing. LEDs
flash on and off slowly when pairing mode is active and flash rapidly when cameras are out of
range.
3 Pairing Button: F
or details, see
“Pairing Cameras” on page 8.
5
4
6
4 DC Power: Connect power adapter
to power on the receiver.
5 Termination Cable: Includes 2 BNC
video output c
ables to connect
cameras to a DVR.
6 Antenna Jacks: One on each side of
the rec
eiver.
