Transducer installation| Installation Manual
Forward orientation

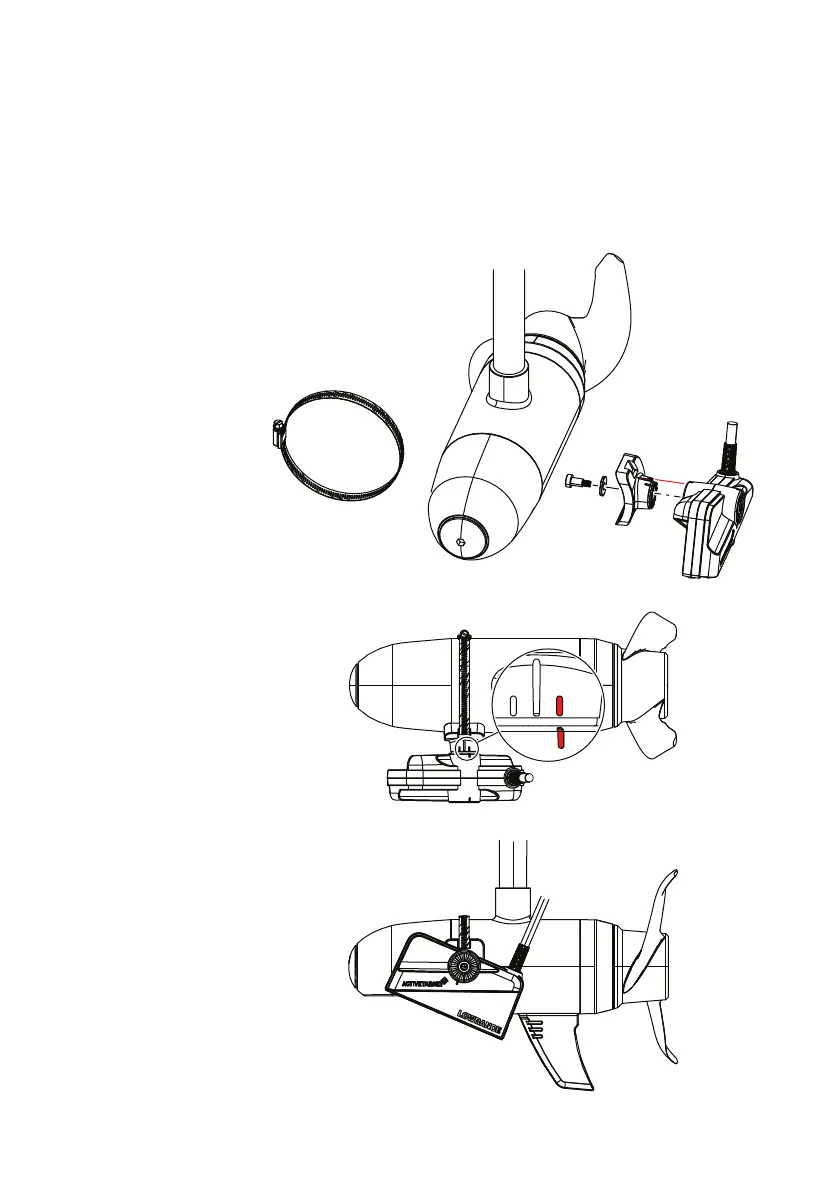

Attach the bracket to the transducer. Secure the assembly to the
motor using the hose clamp. The hose clamp should be tightened
just enough to prevent the transducer from moving during normal
use. Then orient the transducer to the forward orientation by rmly
gripping and rotating the transducer until the alignment marks are
aligned.
