Operation ProtoMat S
78 HB V0.9/Mrz-11 © 2011 LPKF AG
6
6.8.2.1 Production of the printed circuit board
The production process can start when all settings for the PCB production have
are entered completely.
■ Production process

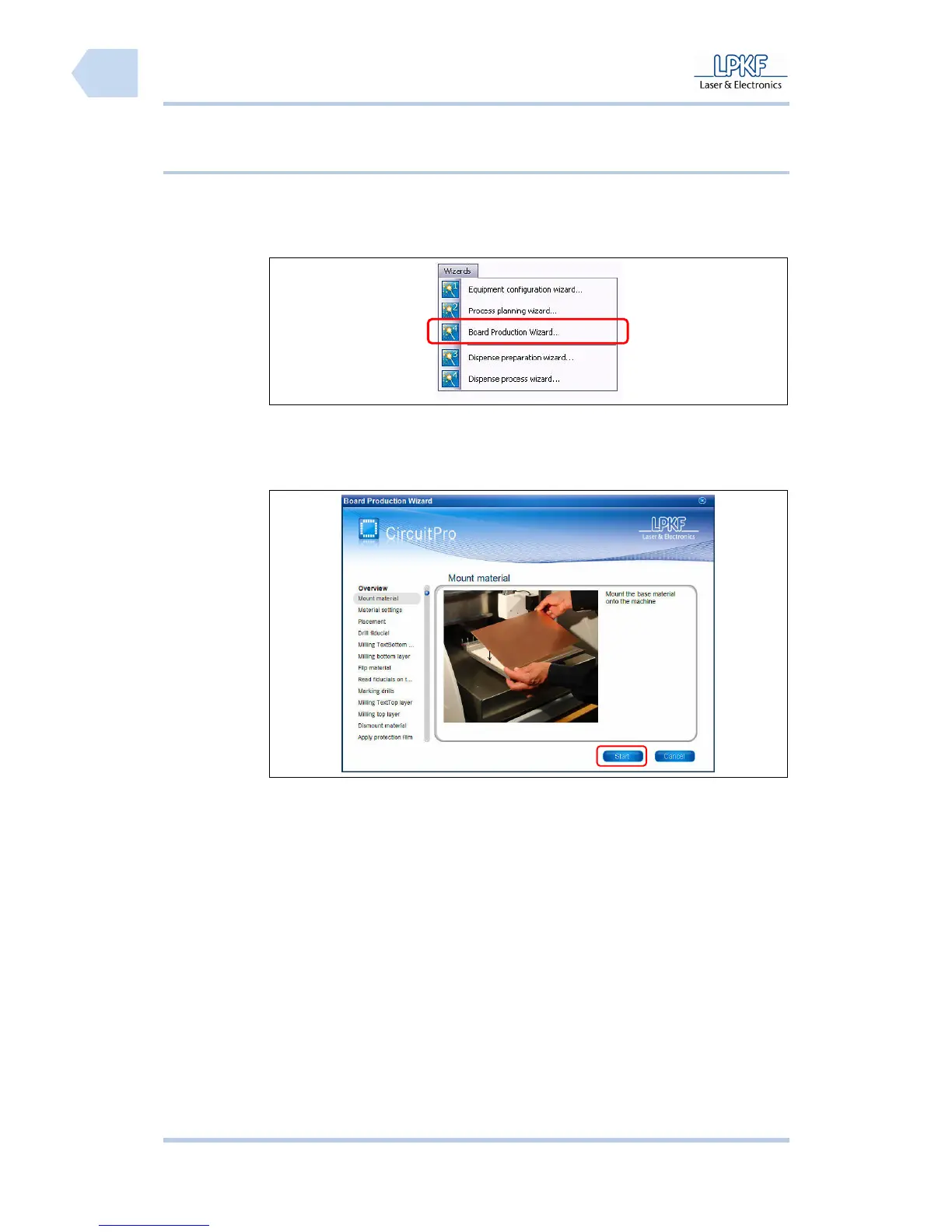

Fig. 50: Start
wizard
1. Click Wizard>Board Production Wizard.
➨ The following window is shown:
Fig. 51: Process
planning wizard
2. Follow the instructions and click [Start].
➨ The next production step is shown.
3. Follow the instructions and click [Next].
