LS tractor MT342 User Manual

4 -22
①

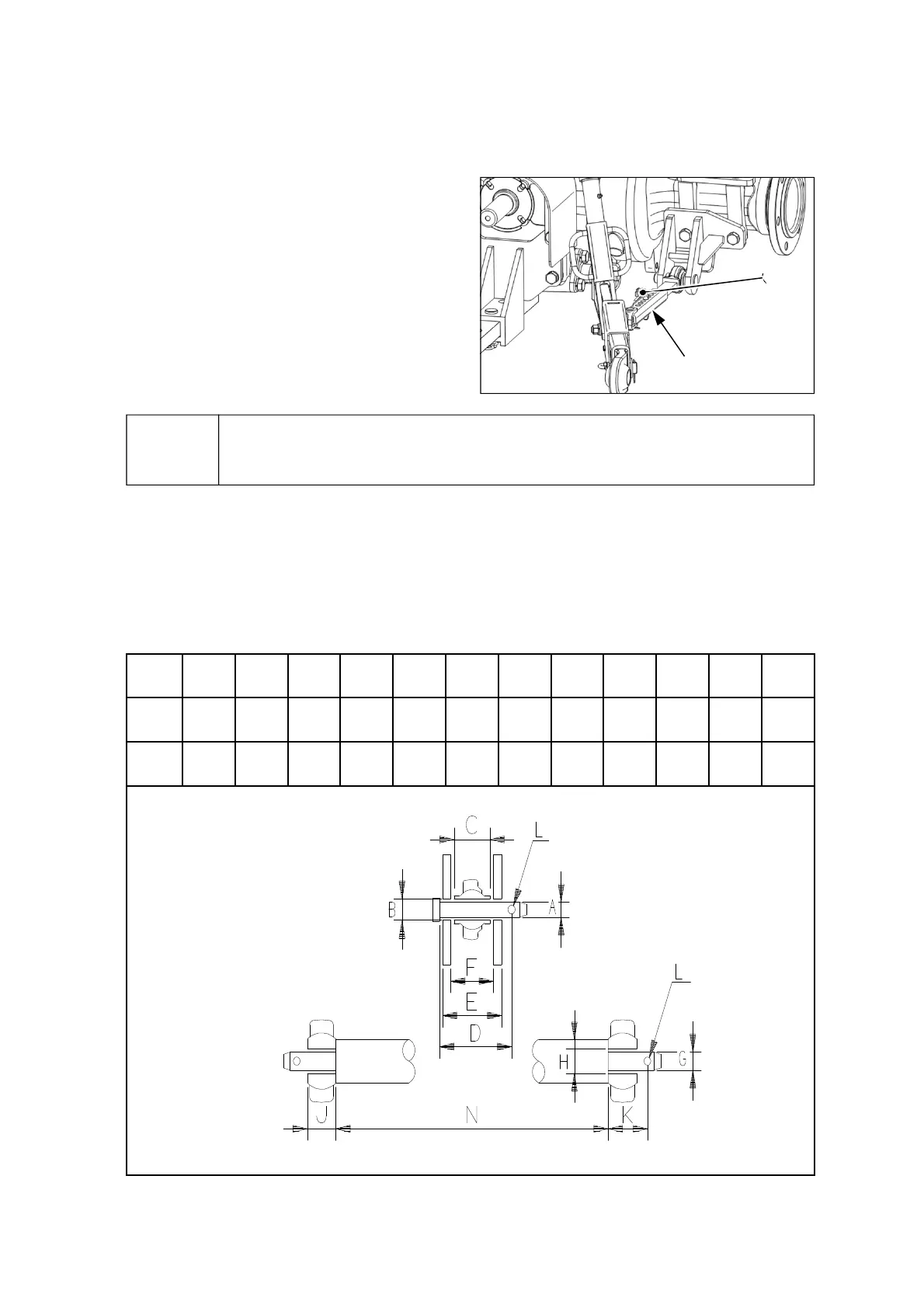

Telescopic stabilizer
▶When adjusting the stabilizer’s length, set the lateral swinging clearance of the
implement to be 20~40mm. (0.8~1.6 in.)
Notice
③ Adjustment of stabilizer (optional)
- Telescopic type
 Pull up the link pin(1) and find a adaptable hole
with adjusting the stabilizer’s length.
 Insert the link pin(1) into the hole and let it
tightened firmly by locking spring.
④ Reference of implement installation part
AB
C
(MAX)
D
(MIN)
E
(MAX)
F
(MIN)
GH J K LN
CAT.1
19
(0.74)
19.3
(0.75)
44
(1.73)
76
(2.99)
69
(2.71)
44.5
(1.75)
22
(0.86)
22.4
(0.88)
35
(1.38)
39
(1.53)
12
(0.47)
683
(26.8)
CAT.2
25.4
(1.00)
25.7
(1.01)
51
(2.00)
93
(3.66)
86
(3.38)
52
(2.04)
28
(1.10)
28.7
(1.12)
45
(1.77)
49
(1.92)
12
(0.47)
825
(32.4)
Unit : mm(inch)
