(6) Headlight bulb - Replace

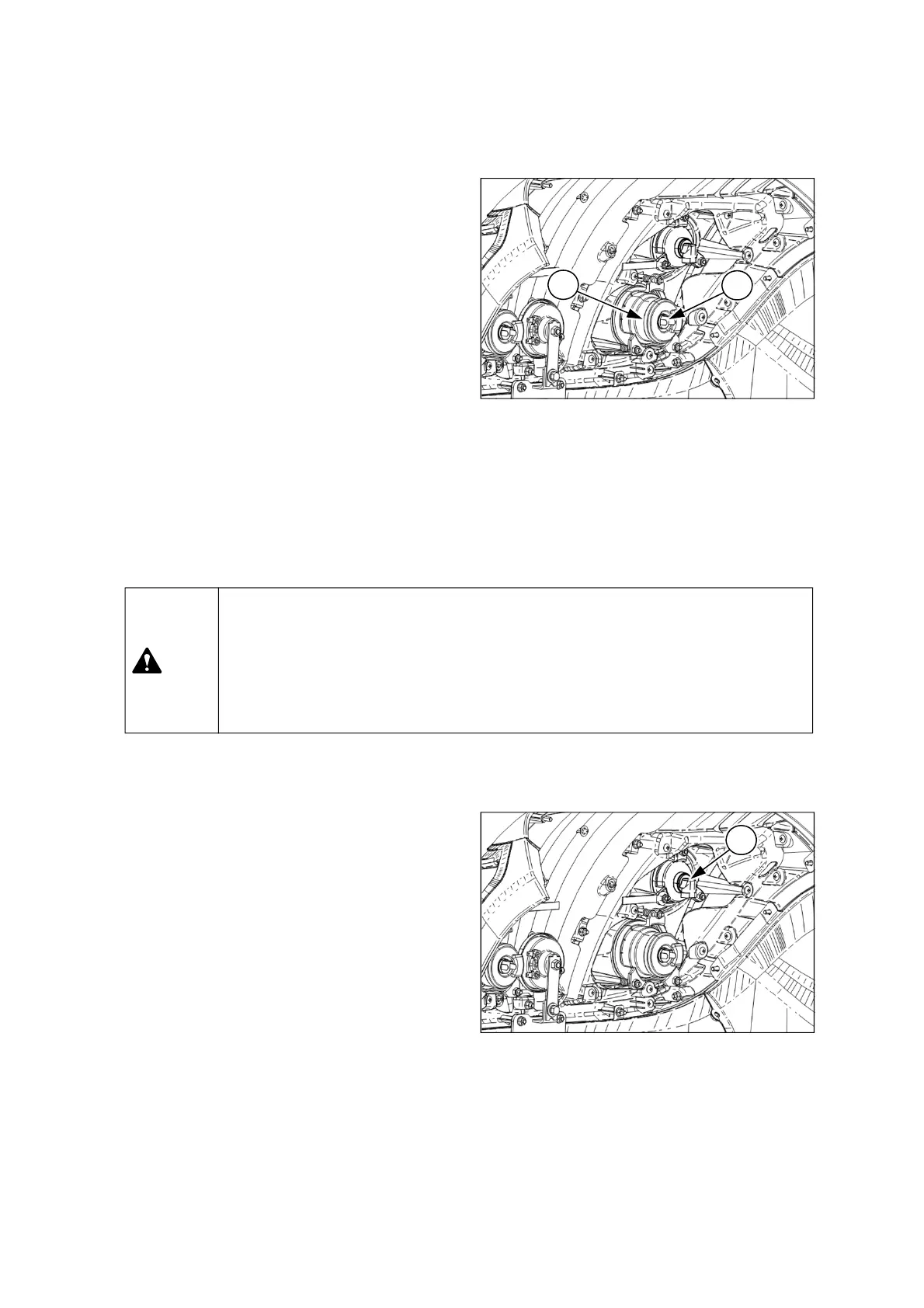

① Headlight bulb
If a headlight bulb① fails to operate, the bulb
must be replaced as below.
1. Open the tractor hood.
2. Remove the harness connector.
3. Pull out the rubber grommet② and release the
retaining spring from the housing with
retaining the bulb.
4. Replace the bulb with a new one and install
the retaining spring locked in place.
5. Reinstall the rubber grommet② into the
housing and harness connector.
NOTE: For about bulb specification, refer to the
chapter 5-6-(4) in this manual.
▶ Be careful not to touch the bulb with bare fingers. Oil from the fingers can shorten
the life of bulb. Use protective cloth or glove when installing bulb.
▶ Bulb and surroundings are very hot while working. Be careful not to touch the bulb
with bare fingers. It may cause a burn of your hand. Before servicing the bulb, turn
off the light and cool down the bulb.
Caution
② Grille work light bulb
If a grille work light bulb③ fails to operate, the
bulb must be replaced as below.
1. Open the tractor hood.
2. Remove the harness connector.
3. Turn the damaged bulb 1/4 turn counter-clock
wise and remove bulb from holder.
4. Insert a new bulb into the holder and turn 1/4
turn clockwise to secure.
5. Reinstall the harness connector.
NOTE: For about bulb specification, refer to the
chapter 5-6-(4) in this manual.
