LS tractor MT342 - Page 171

To Next Page

To Previous Page

4 -33

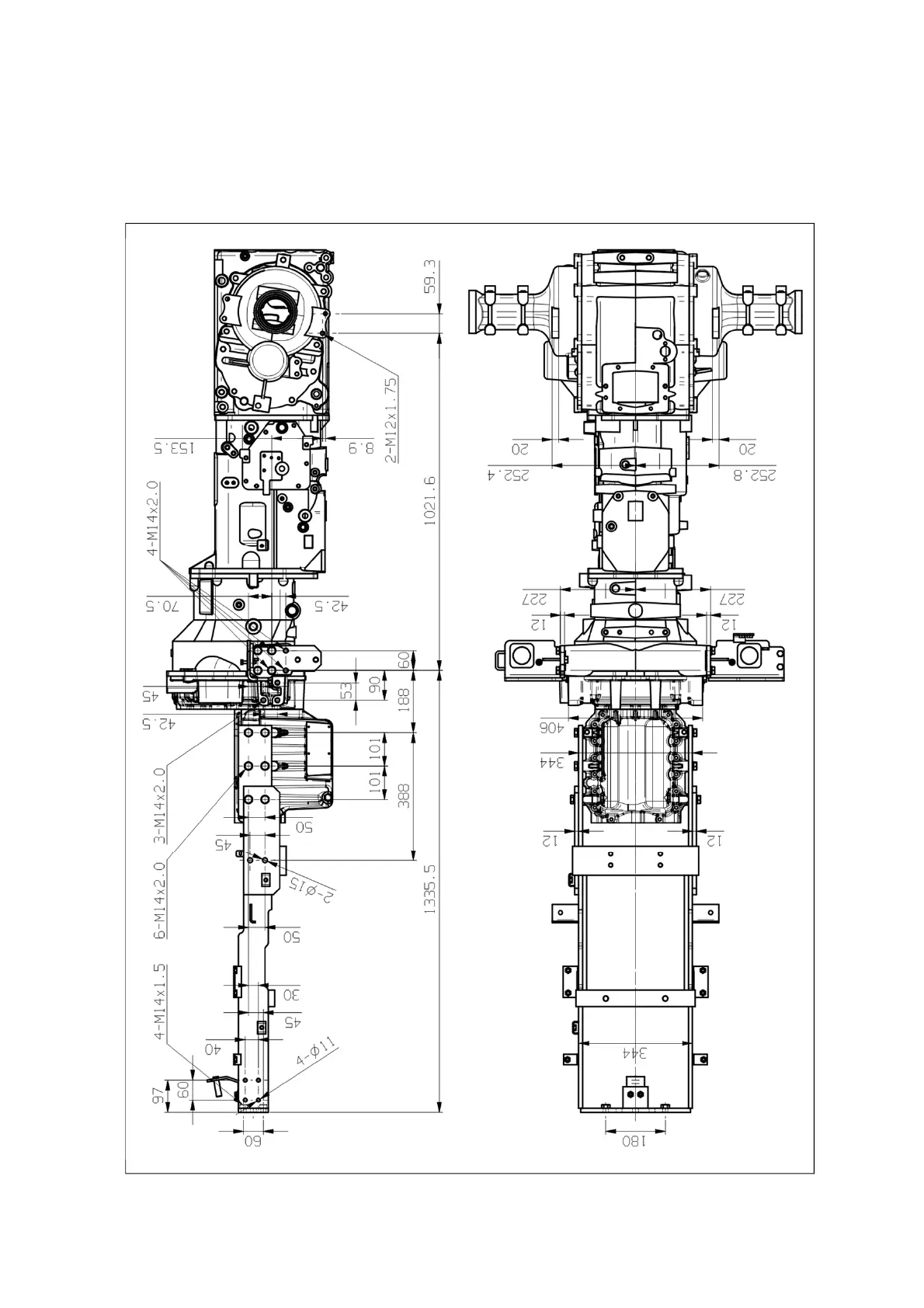

③ Attaching points for Front-end loader

 When attaching a front-end loader for all models, refer to the drawings as below.

(Unit : mm)
