7 -1

(Unit : mm)

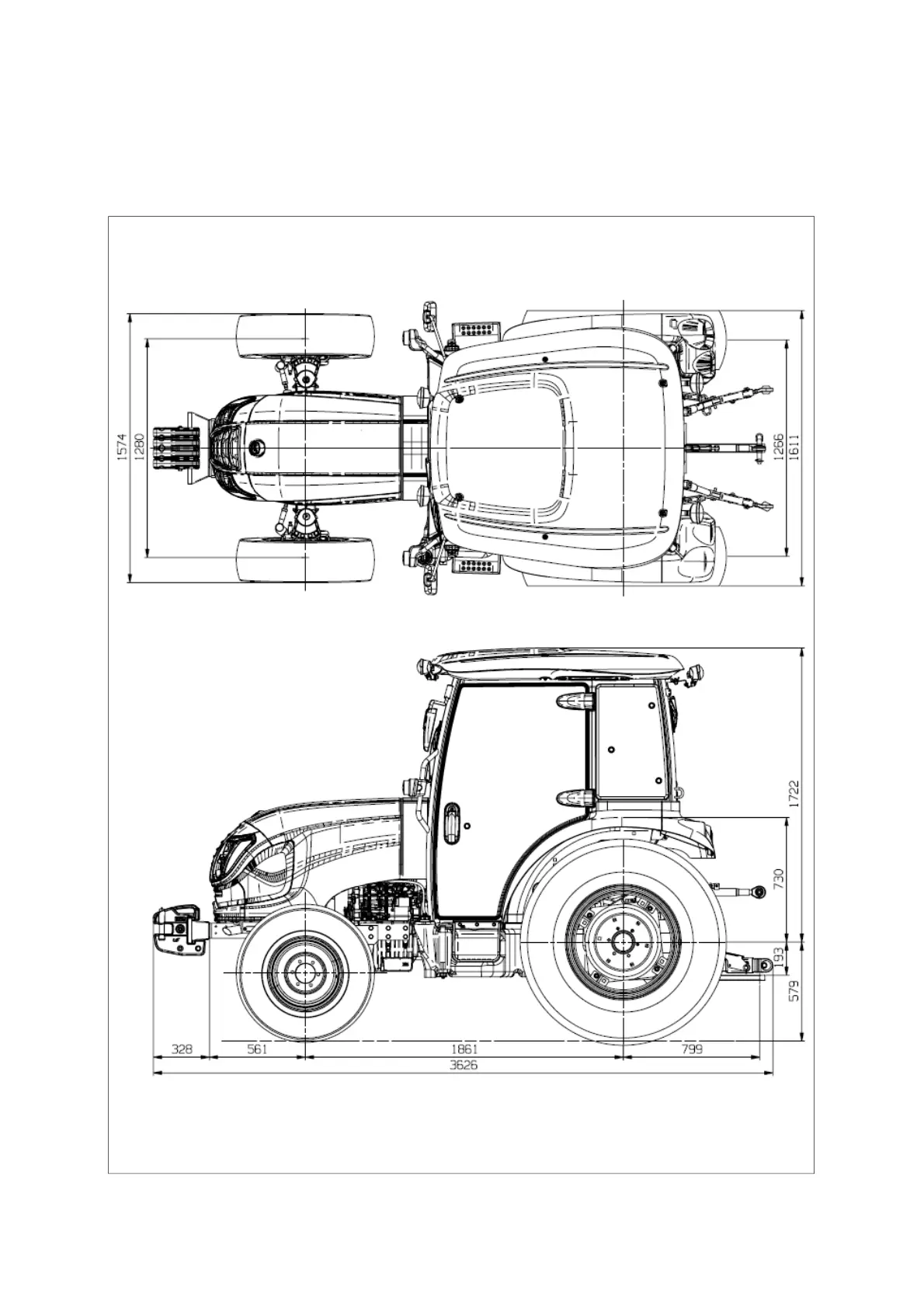

7. Dimension and Specification

① Cabin type

* Front tires : 9.5-16 6PR / Rear tires : 13.6-24 8PR
